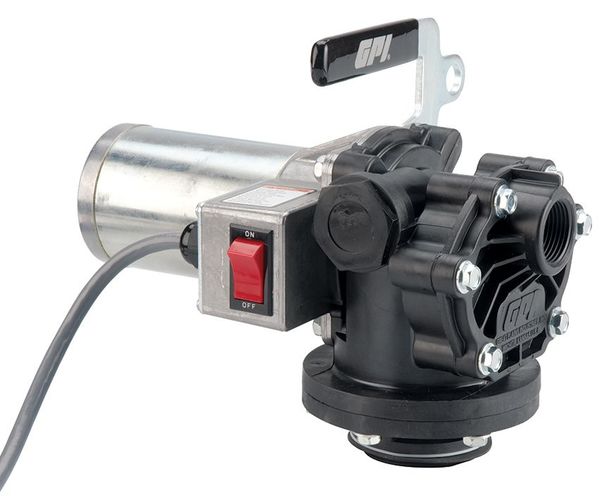

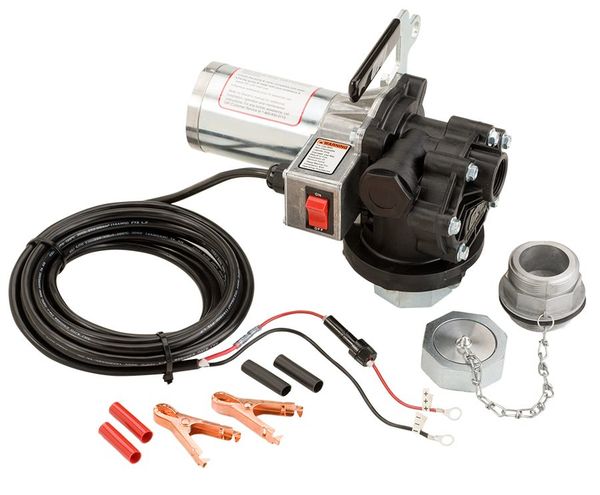

Drum Pump, 12VDC, 1/5 HP

Home / Drum Pump, 12VDC, 1/5 HP

Drum Pump, 12VDC, 1/5 HP

SKU
Brand Gpi
Categories Pumps
Description Electric Operated Drum Pump, Max. Head Pressure 16 psi, Max. Oil Flow 12 gpm, Max. Outlet Pressure 6 psi, For Use With GPI 118000-1, P-120H-2UR, Rated Voltage 12V DC, Pump Connection ID 1 in, Cord Length 20 ft, Includes Bung Adapter No, Runs Dry Yes, Power Source Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes
graingerSKU: null, mscSKU: null, zoro_no: G2068114, mongo_id: 65bbe67c3aaddbd5a9031d4e

Web Price

$959.99 / each

Qty

Product Details

Adapter Material Aluminum

Adapter Type Spin Collar

Agency Compliance CSA

Application Agricultural Chemicals Transfer

Compatible Chemicals Automatic Transmission Fluid, Brake Fluid, Deionized Water, Fresh Water, Fungicides, Herbicides, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil, Pesticides, Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid

Cord Length 20 ft

Country of Origin (subject to change) United States

DEF Compatible No

Diesel Exhaust Fluid Compatible No

Discharge Connection Type NPT

Discharge Tube Outlet ID 1 in

Discharge Tube Outlet ID Size 1

Discharge Tube Outlet OD 1 in

Duty Cycle Intermittent

Explosion Proof No

Features 12 GPM (45L/min), 12 V(dc), 2 in NPT Union Ring, 20 ft (6.1 m) Power code, Chemical transfer pump, corrosion resistance, GPI 118000-1, Lightweight, Molded plastic, P-120H-2UR

Food Grade No

For Container Size 55 gal, 275 gal, 330 gal

For Container Type Drum, Tote

For Media Type Automatic Transmission Fluid, Brake Fluid, Fungicides, Herbicides, Hydraulic Oil, Motor Oil, Pesticides, Stoddard Solvent, Water, Windshield Washer Fluid

For Use With GPI 118000-1, P-120H-2UR

Full Load Amps 15.0

Gasket Material Fluorocarbon

Gear Lube NT

GPM 12

Grease NT

Height Above Container 11 in

Housing Material Polyethylene

Housing Material - Pumps Polyethylene

HP_ 1/5

Includes 20 ft Power Cord

Includes Bung Adapter No

Includes Discharge Hose No

Includes Nozzle No

Includes Suction Tube Yes

Inlet Size 1 NPT

Manufacturers Warranty Length 2 yr.

Max. Flow GPM 8-12 gpm

Max. Flow Rate 12 gpm

Max. Fluid Temp. 120 Degrees F

Max. GPM for Oil 12

Max. GPM for Water 12

Max. Head 18 ft.

Max. Head - Pumps 18 ft

Max. Head Pressure 16 psi

Max. Liquid Temp. 120 Degrees F

Max. Oil Flow 12 gpm

Max. Outlet Pressure 6 psi

Max. Pressure 6 psi

Max. Temp. 120 Degrees F

Max. Viscosity 10 cps

Metered No

Min. Fluid Temp. -20 Degrees F

Motor Enclosure TENV

Motor HP 1/5 hp

Motor RPM 1,650 RPM

Motor Type Electric DC

Not Recommended Chemicals Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Biodiesel, DEF, Diesel Fuel, E85, Fertilizers, Formaldehyde, Formaldehyde 40%, Gasoline, Heptane, Hexane, Hydrazine, Kerosene, Lacquer Thinners, Lithium Grease, Methyl Chloride, Naphtha, Paint, Paint Thinner, Potassium Hydroxide (50%), Salt Water, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Toluene, Trichlorethylene (50%), Turpentine, Xylene

Number of Phases 1

Outlet Size 1 NPT

Overall Length 11 in

Package Quantity 1

Power Source Electric

Pump Body Material Polyethylene

Pump Connection ID 1 in

Pump Connection OD 1 1/4 in

Pump Connection Type NPT

Rated Voltage 12V DC

RPM 1650

Runs Dry Yes
