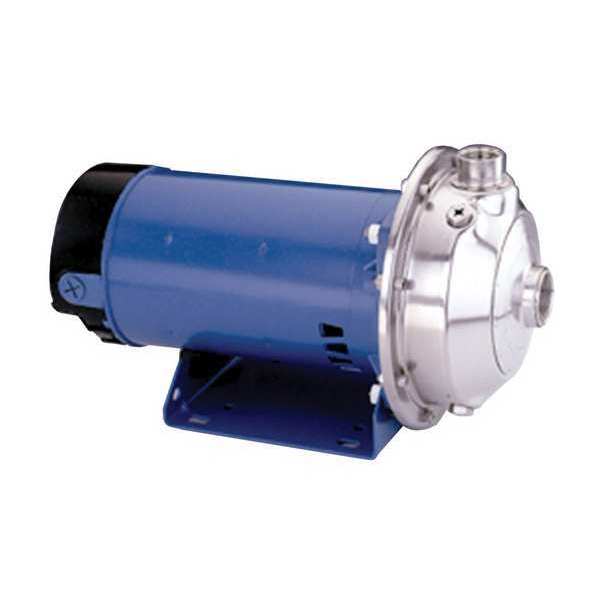

Straight Centrifugal Pump

Home / Straight Centrifugal Pump

Straight Centrifugal Pump

SKU
Brand Goulds Water Technology
Categories Pumps
Description Centrifugal Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 60 ft of Head (Maximum) 96 gpm, Flow Rate @ 80 ft of Head (Maximum) 62 gpm, Maximum Feet of Head 89 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 108 gpm, Flow Rate @ 50 ft of Head (Maximum) 108 gpm, Priming Manual

Web Price

$1,723.74 / each

Qty

Product Details

Agency Compliance NSF 61

Amps 10.9-11.0

Best Efficiency Flow 78.9 gpm

Best Efficiency GPM @ PSI 78.9 gpm @ 72 ft

Best Efficiency Head 72 ft

Best Efficiency Range GPM @ Head 55.23 to 94.68 gpm @ 83 to 61 ft

Compatible Discharge Pipe Size 1 1/4 in

Compatible Intake Pipe Size 1 1/2 in

Compatible with Media Type Water

Country of Origin (subject to change) United States

Discharge Pump Type Centrifugal Pump

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Features Easy Accessible Vent, High Efficiency Impeller, Prime and Drain Connections, Superior Material Construction

Flow Rate @ 1 ft of Head (Maximum) Not Applicable

Flow Rate @ 10 ft of Head (Maximum) Not Applicable

Flow Rate @ 100 ft of Head (Maximum) Not Applicable

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) Not Applicable

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) Not Applicable

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) Not Applicable

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) Not Applicable

Flow Rate @ 5 ft of Head (Maximum) Not Applicable

Flow Rate @ 50 ft of Head (Maximum) 108 gpm

Flow Rate @ 60 ft of Head (Maximum) 96 gpm

Flow Rate @ 70 ft of Head (Maximum) 84 gpm

Flow Rate @ 80 ft of Head (Maximum) 62 gpm

Flow Rate @ 90 ft of Head (Maximum) Not Applicable

For Use With Potable Systems Yes

Frame 56YZ

Frequency 60 Hz

GPM of Water @ 50 Ft. of Head 108 gpm

GPM of Water @ 60 Ft. of Head 96.6 gpm

GPM of Water @ 70 Ft. of Head 82.8 gpm

GPM of Water @ 80 Ft. of Head 63.6 gpm

Height 8 3/4 in

Horsepower 2 hp

Housing Material - Pumps Stainless Steel

HP - Pumps 2 hp

Hz_ 60 Hz

Impeller Design Closed

Impeller Material Stainless Steel

Impeller Type Enclosed

Includes Manual

Inlet Pressure 2 psi

Inlet Size - Pumps 1-1/2 in NPT

Installation Position Horizontal

Intake and Discharge Size 1 1/2 in , 1 1/4 in

Intake Type NPT

Length 17 1/16 in

Max. Case Pressure 125 psi

Max. Head 89 ft

Max. Liquid Temp. 212 Degrees F

Max. Pressure - Pumps 125 psi

Max. Specific Gravity 1

Maximum Feet of Head 89 ft

Maximum Flow Rate 108 gpm

Maximum Media Temperature 212 Degrees F

Maximum RPM 3,500 RPM

Minimum Flow Rate 63.6 gpm

Motor Enclosure - Pumps Totally Enclosed Fan-Cooled

Motor Enclosure Type TEFC

Motor Frame Designation 56YZ

Motor RPM 2,850 RPM

Motor Type 3-Phase

Mounting Orientation Horizontal

Nameplate Voltage 115/230V AC

Nominal Voltage 115/230V AC

Outlet Size - Pumps 1-1/4 in NPT

Overall Height 8.7 in

Overall Length 13.3 in

Overall Width 6.7 in

Package Quantity 1

Phase - Pumps 1

Port Rotation Top

Priming Manual

Pump Housing Material Stainless Steel

Pumping Application Air Scrubbers, Booster Service, Chillers, Filtration Systems, General Water Service, Heat Exchangers, Injection Molding Cooling, Jockey Pump, Liquid Transfer, OEM Applications, Reverse Osmosis, Spraying Systems, Washing/Cleaning Systems, Water Circulation

Seal Material 316 Stainless Steel, Carbon Ceramic, Viton

Seal Type Mechanical

Series MCS

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 75 psi

Specific Gravity (Maximum) 1

Standards CSA Certified, NSF 61 Certified

Voltage - Pumps 115/230V AC

Wetted Material Stainless Steel, Buna Elastomers, Carbon, Ceramic Stationary

Wetted Materials 316 Stainless Steel, AISI 316L Stainless Steel, Carbon, Silicon Carbide, Viton
