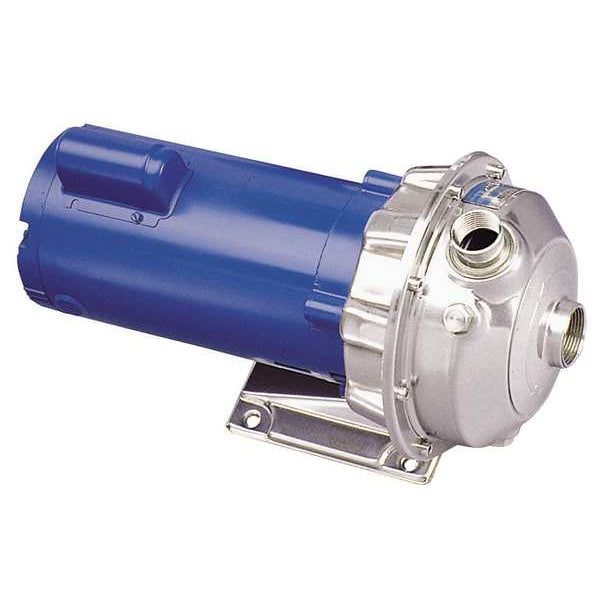

Stainless Steel 1/2 HP Centrifugal Pump 208-230/460V

Home / Stainless Steel 1/2 HP Centrifugal Pump 208-230/460V

Stainless Steel 1/2 HP Centrifugal Pump 208-230/460V

SKU
Brand Goulds Water Technology
Categories Pumps
Description Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 1/2 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 37 gpm, Flow Rate @ 60 ft of Head (Maximum) 23 gpm, Maximum Feet of Head 76 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 37 gpm, Flow Rate @ 50 ft of Head (Maximum) 32 gpm, Priming Manual
graingerSKU: , mscSKU: , zoro_no: G3741455, mongo_id: 65bbe6623aaddbd5a9027ca1

Web Price

$1,921.24 / each

Qty

Product Details

Amps 2.4-2.4/ 1.2

Bearing Type Ball

Best Efficiency Flow 28 gpm

Best Efficiency Head 55 ft

Best Efficiency Range GPM @ Head 17.5 to 37.5 gpm @ 66 to 39 ft

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 1/4 in

Compatible with Media Type Water

Country of Origin (subject to change) United States

Discharge Pump Type Straight Center Discharge Pump

Discharge Rotation 40 Degrees Increments

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Features Easy Accessible Vent, High Efficiency Impeller, Prime and Drain Connections, Superior Material Construction

Flow Rate @ 1 ft of Head (Maximum) Not Applicable

Flow Rate @ 10 ft of Head (Maximum) Not Applicable

Flow Rate @ 100 ft of Head (Maximum) Not Applicable

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) Not Applicable

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) Not Applicable

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) Not Applicable

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) 37 gpm

Flow Rate @ 5 ft of Head (Maximum) Not Applicable

Flow Rate @ 50 ft of Head (Maximum) 32 gpm

Flow Rate @ 60 ft of Head (Maximum) 23 gpm

Flow Rate @ 70 ft of Head (Maximum) 12 gpm

Flow Rate @ 80 ft of Head (Maximum) Not Applicable

Flow Rate @ 90 ft of Head (Maximum) Not Applicable

For Use With Potable Systems No

Frame 56J

Frequency 60 Hz

GPM of Water @ 40 Ft. of Head 37

GPM of Water @ 50 Ft. of Head 32

GPM of Water @ 60 Ft. of Head 25

GPM of Water @ 70 Ft. of Head 10

Height 8 5/8 in

Horsepower 1/2 hp

Housing Material 316 Stainless Steel

Housing Material - Pumps Stainless Steel

HP - Pumps 1/2 hp

HP_ 1/2

Hz_ 60

Impeller Design Closed

Impeller Material Stainless Steel

Impeller Type Closed

Inlet 1-1/4 NPT

Inlet Size - Pumps 1-1/4 in NPT

Intake and Discharge Size 1 1/4 in , 1 in

Intake Type NPT

Length 15 3/8 in

Manufacturers Warranty Length 1 yr

Max. Head 75 ft

Max. Liquid Temp. 212 Degrees F

Max. Pressure 125 psi

Max. Pressure - Pumps 125 psi

Max. Specific Gravity 1.0

Maximum Feet of Head 76 ft

Maximum Flow Rate 37 gpm

Maximum Media Temperature 212 Degrees F

Maximum RPM 3,500 RPM

Minimum Flow Rate 10 gpm

Motor Enclosure Totally Enclosed Fan Cooled (TEFC)

Motor Enclosure - Pumps Totally Enclosed Fan-Cooled

Motor Enclosure Type TEFC

Motor Frame Designation 56J

Motor RPM 3,500 RPM

Mounting Orientation Horizontal, Vertical

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Outlet 1 NPT

Outlet Size - Pumps 1 in NPT

Overall Height 8.6 in

Overall Length 17.5 in

Overall Width 8.5 in

Package Quantity 1

Phase Three

Phase - Pumps 3

Port Rotation 9

Priming Manual

Pump Housing Material Stainless Steel

Pumping Application Air Scrubbers, Booster Service, Chillers, Filtration Systems, General Water Service, Heat Exchangers, Injection Molding Cooling, Jockey Pump, Liquid Transfer, OEM Applications, Reverse Osmosis, Spraying Systems, Washing/Cleaning Systems, Water Circulation

Seal Material 316 Stainless Steel, Carbon, Silicon Carbide, Viton

Seal Type Mechanical

Series NPE

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 125 psi

Specific Gravity (Maximum) 1

Standards CSA Certified, NSF 61 Certified

Voltage 208-230/460

Voltage - Pumps 208 to 240/480V AC

Wetted Material 316 Stainless Steel, Carbon, Silicon Carbide, Stainless Steel, Viton

Wetted Materials AISI 316 Stainless Steel

Width 8 1/8 in
