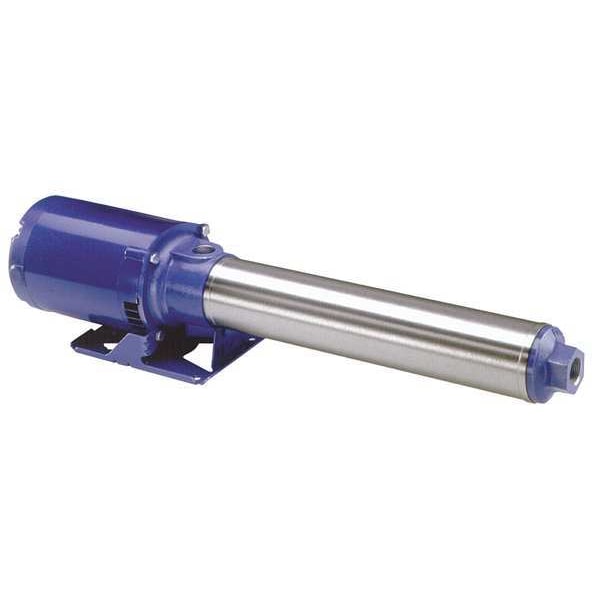

Multi-Stage Booster Pump, 3/4 hp, 240/460V AC, 3 Phase, 1 in NPT Inlet

Home / Multi-Stage Booster Pump, 3/4 hp, 240/460V AC, 3 Phase, 1 in NPT Inlet Size, 14 Stage

Multi-Stage Booster Pump, 3/4 hp, 240/460V AC, 3 Phase, 1 in NPT Inlet Size, 14 Stage

SKU
Brand Goulds Water Technology
Categories Pumps
Description Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 3/4 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 10 psi 9.75 gpm, Flow Rate @ 20 psi 9.4 gpm, Flow Rate @ 30 psi 9.2 gpm, Flow Rate @ 40 psi 9 gpm, Flow Rate @ 50 psi 8.6 gpm, Flow Rate @ 60 psi 8.5 gpm, Flow Rate @ 70 psi 8.1 gpm, Flow Rate @ 80 psi 7.75 gpm, Flow Rate @ 90 psi 7.5 gpm, Flow Rate @ 100 psi 7.2 gpm, Flow Rate @ 120 psi 6.5 gpm, Shut Off Pressure (Maximum) 75 psi
graingerSKU: , mscSKU: , zoro_no: G6754632, mongo_id: 65bbe6623aaddbd5a9027ca4

Web Price

$2,017.49 / each

Qty

Product Details

Agency Compliance CSA/UL/CE

Amps 12.8/6.4

Bearing Type Ball

Booster Pump Type Multi-Stage Booster Pump

Case Pressure (Maximum) 260 psi

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 in

Compatible with Media Type Water

Country of Origin (subject to change) United States

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Feet of Head (Minimum) 160 ft of head

Flow Rate @ 10 psi 9.75 gpm

Flow Rate @ 100 psi 7.2 gpm

Flow Rate @ 120 psi 6.5 gpm

Flow Rate @ 140 psi 5.2 gpm

Flow Rate @ 15 psi 9.5 gpm

Flow Rate @ 160 psi 4 gpm

Flow Rate @ 180 psi 2.5 gpm

Flow Rate @ 20 psi 9.4 gpm

Flow Rate @ 200 psi 0.5 gpm

Flow Rate @ 30 psi 9.2 gpm

Flow Rate @ 40 psi 9 gpm

Flow Rate @ 50 psi 8.6 gpm

Flow Rate @ 60 psi 8.5 gpm

Flow Rate @ 70 psi 8.1 gpm

Flow Rate @ 80 psi 7.75 gpm

Flow Rate @ 90 psi 7.5 gpm

For Use With Potable Systems No

For Use With Systems Non-Potable

Frame 56J

Frequency 60 Hz

GPM @ 10 PSI 9.5

GPM @ 100 PSI 7.5

GPM @ 120 PSI 6.5

GPM @ 140 PSI 5.5

GPM @ 160 PSI 4

GPM @ 180 PSI 2.5

GPM @ 20 PSI 9.5

GPM @ 200 PSI 0.5

GPM @ 40 PSI 9

GPM @ 60 PSI 8.5

GPM @ 80 PSI 7.75

Height 5 3/4 in

Horsepower 3/4 hp

Housing Material Cast iron

Housing Material - Pumps Cast Iron

HP - Pumps 3/4 hp

HP_ 3/4

Hz_ 60

Impeller Design Closed

Impeller Material Glass Filled Polycarbonate

Impeller Type Closed

Includes Manual

Inlet 1 FNPT

Inlet Size - Pumps 1 in NPT

Intake and Discharge Size 1 in , 1 in

Intake Size 1 in

Intake Type NPT

Length 23 1/8 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 375 psi

Max. Liquid Temp. 160 Degrees F

Max. Pressure 75 psi

Max. Pressure - Pumps 75 psi

Maximum Feet of Head 470 ft of head

Maximum Flow Rate 8 gpm

Maximum Media Temperature 160 Degrees F

Maximum RPM 3,500 RPM

Minimum Flow Rate 1 gpm

Motor Ambient Temp. Rating 40 Degrees C

Motor Ambient Temperature (Maximum) 104 Degrees F

Motor Ambient Temperature (Minimum) 40 Degrees F

Motor Enclosure ODP

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J NEMA

Motor RPM 3,450 RPM

Motor Type Capacitor-Start

Mounting Orientation Horizontal

Nameplate Voltage 230/460V AC

Nominal Voltage 230/460V AC

Number of Stages 14

Number of Stages - Pumps 14

Outlet 1 FNPT

Outlet Size - Pumps 1 in NPT

Overall Height 5.75 in

Overall Length 23.13 in

Overall Width 6.06 in

Package Quantity 1

Phase 3

Phase - Pumps 3

Pump Housing Material Cast Iron

Pump Mounting Position Horizontal

Pumping Application Booster Service, Evaporative Cooling Systems/Misters, Filtration, General Purpose Pumping, HVAC, Reverse Osmosis, Spray Systems, Water Circulation

Seal Material Buna, Carbon, Ceramic

Series GB

Series Family 5GB

Shut Off Pressure (Maximum) 75 psi

Stages 14

Standards CAN 22.2, CSA Certified, UL778

Voltage 230-460

Voltage - Pumps 240/460V AC

Wetted Material Buna, Carbon, Cast Iron, Ceramic, Stainless Steel

Wetted Materials Buna, Carbon, Cast Iron, Ceramic, Engineered Composite, Stainless Steel

Width 6 1/16 in
