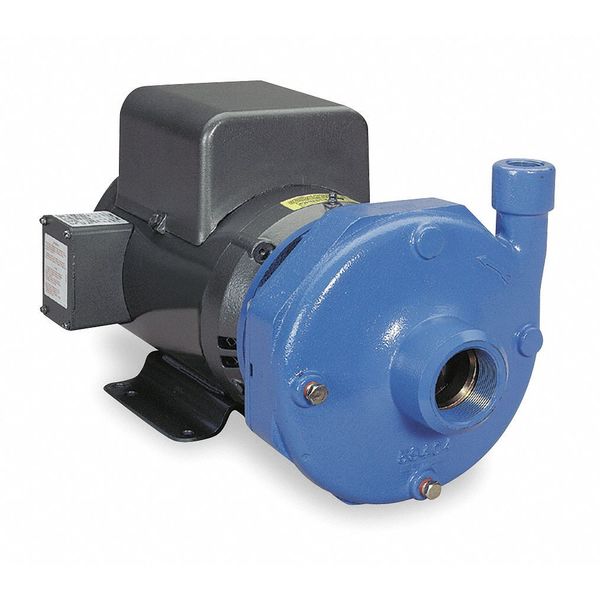

Cast Iron 7-1/2 HP Centrifugal Pump 230V

Home / Cast Iron 7-1/2 HP Centrifugal Pump 230V

Cast Iron 7-1/2 HP Centrifugal Pump 230V

SKU
Brand Goulds Water Technology
Categories Pumps
Description Centrifugal Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 7 1/2 hp, Nameplate Voltage 230V AC, Maximum Feet of Head 115 ft, Compatible Intake Pipe Size 3 in, Intake Type NPT, Compatible Discharge Pipe Size 2 1/2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 250 gpm, Flow Rate @ 100 ft of Head (Maximum) 200 gpm, Priming Manual, Seal Material 316 Stainless Steel, Buna Elastomer, Carbon, Ceramic, Best Efficiency Head 103 ft

Web Price

$5,313.74 / each

Qty

Product Details

Amps 42

Best Efficiency Flow 195 gpm

Best Efficiency GPM @ Head 195 @ 103 ft

Best Efficiency Head 103 ft

Best Efficiency Range GPM @ Head 125 to 275 gpm @ 102 to 60 ft

Compatible Discharge Pipe Size 2 1/2 in

Compatible Intake Pipe Size 3 in

Compatible with Media Type Water

Country of Origin (subject to change) United States

Discharge Rotation 90 Degrees Increments

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Features Back Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings

Flow Rate @ 1 ft of Head (Maximum) Not Applicable

Flow Rate @ 10 ft of Head (Maximum) Not Applicable

Flow Rate @ 100 ft of Head (Maximum) 200 gpm

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) Not Applicable

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) Not Applicable

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) Not Applicable

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) Not Applicable

Flow Rate @ 5 ft of Head (Maximum) Not Applicable

Flow Rate @ 50 ft of Head (Maximum) Not Applicable

Flow Rate @ 60 ft of Head (Maximum) Not Applicable

Flow Rate @ 70 ft of Head (Maximum) Not Applicable

Flow Rate @ 80 ft of Head (Maximum) Not Applicable

Flow Rate @ 90 ft of Head (Maximum) 250 gpm

For Use With Potable Systems Yes

Frame 213Jm

Frequency 60 Hz

GPM of Water @ 100 Ft. of Head 162

GPM of Water @ 40 Ft. of Head 315

GPM of Water @ 50 Ft. of Head 300

GPM of Water @ 60 Ft. of Head 282

GPM of Water @ 70 Ft. of Head 260

GPM of Water @ 80 Ft. of Head 234

GPM of Water @ 90 Ft. of Head 200

Height 11 1/4 in

Horsepower 7 1/2 hp

Housing Material Cast iron

Housing Material - Pumps Cast Iron

HP - Pumps 7 1/2 hp

HP_ 7-1/2

Hz_ 60

Impeller Design Closed

Impeller Material Bronze

Impeller Type Closed

Inlet 3 NPT

Inlet Pressure 100 psi

Inlet Size - Pumps 3 in NPT

Intake and Discharge Size 3 in , 2 1/2 in

Intake Type NPT

Item - Straight Centrifugal Pumps Straight Centrifugal High Head Pump

Length 22 1/8 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 175 psi

Max. Dia. Solids 7/16 in

Max. GPM @ Head 250 @ 90 ft

Max. Head 125 ft

Max. Liquid Temp. 212 Degrees F

Max. Specific Gravity 1.0

Maximum Feet of Head 115 ft

Maximum Flow Rate 250 gpm

Maximum Media Temperature 212 Degrees F

Maximum RPM 3,500 RPM

Min. GPM @ Head 50 @ 118 ft

Minimum Flow Rate 100 gpm

Motor Enclosure ODP

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 213JM

Motor RPM 3,500 RPM

Motor Type JM

Mounting Orientation Horizontal

Nameplate Voltage 230V AC

Nominal Voltage 230V AC

Outlet 2-1/2 NPT

Outlet Size - Pumps 2-1/2 in NPT

Overall Height 11.2 in

Overall Length 25.5 in

Overall Width 9.7 in

Package Quantity 1

Phase 1

Phase - Pumps 1

Port Rotation 45 increments

Priming Manual

Pump Housing Material Cast Iron

Pumping Application Booster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation

Seal Material Buna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts

Seal Type Mechanical Type 21

Series 3656

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 175 psi

Solid Diameter (Maximum) 0.44 in

Specific Gravity (Maximum) 1

Standards ANSI 61, NSF Certified

Voltage 230VAC

Voltage - Pumps 240V AC

Wetted Material 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic

Wetted Materials 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N

Width 14 7/8 in
