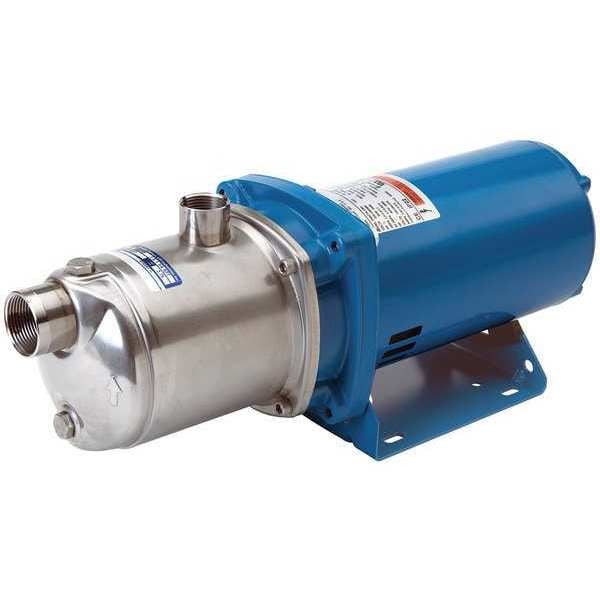

Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1 in NPT Inlet Size,

Home / Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1 in NPT Inlet Size, 5 Stage, 147 psi Max Pressure

Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1 in NPT Inlet Size, 5 Stage, 147 psi Max Pressure

SKU
Brand Goulds Water Technology
Categories Pumps
Description Booster Pump, Phase Three, Pump Housing Material Stainless Steel, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 1 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 50 psi 24 gpm, Flow Rate @ 60 psi 24 gpm, Flow Rate @ 70 psi 24 gpm, Flow Rate @ 80 psi 24 gpm, Flow Rate @ 90 psi 24 gpm, Shut Off Pressure (Maximum) 145 psi, Compatible Intake Pipe Size 1 in, Compatible Discharge Pipe Size 1 in, Intake Type NPT, Mounting Orientation Horizontal, For Use With Potable Systems No, Amps 3.6 A
graingerSKU: , mscSKU: , zoro_no: G6293266, mongo_id: 65bbe8bc22d7a989a991156a

Web Price

$2,311.24 / each

Product Details

Agency Compliance cURus

Amps 3.6 A

Booster Pump Type Booster Pump

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 in

Compatible with Media Type Water

Country of Origin (subject to change) United States

Discharge Type NPT

Feet of Head (Minimum) 28 ft of head

Flow Rate @ 50 psi 24 gpm

Flow Rate @ 60 psi 24 gpm

Flow Rate @ 70 psi 24 gpm

Flow Rate @ 80 psi 24 gpm

Flow Rate @ 90 psi 24 gpm

For Use With Potable Systems No

For Use With Systems Non-Potable

Frequency 60 Hz

Horsepower 1 hp

Housing Material 316L Stainless Steel

Housing Material - Pumps Stainless Steel

HP - Pumps 1 hp

HP_ 1

Hz_ 60

Impeller Material Stainless Steel

Inlet (In.) 1

Inlet Size - Pumps 1 in NPT

Intake and Discharge Size 1 in , 1 in

Intake Size 1 in

Intake Type NPT

Length 13 25/32 in

Max. Pressure 147 psi

Max. Pressure - Pumps 147 psi

Maximum Feet of Head 178 ft of head

Maximum Flow Rate 23 gpm

Maximum Media Temperature 248 Degrees F

Maximum RPM 3,500 RPM

Minimum Flow Rate 5 gpm

Minimum Media Temperature -20 Degrees F

Motor Ambient Temperature (Maximum) 50 Degrees F

Motor Ambient Temperature (Minimum) -15 Degrees F

Motor Enclosure Totally Enclosed Fan Cooled (TEFC)

Motor Enclosure - Pumps Totally Enclosed Fan-Cooled

Motor Enclosure Type TEFC

Motor Frame Designation 80

Motor RPM 3500

Mounting Orientation Horizontal

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Number of Stages 5

Number of Stages - Pumps 5

Outlet 1

Outlet Size - Pumps 1 in NPT

Overall Height 9.13 in

Overall Length 16.85 in

Overall Width 5.87 in

Package Quantity 1

Phase Three

Phase - Pumps 3

Pump Housing Material Stainless Steel

Pumping Application Circulation of Hot and Cold Liquids for Heating, Cooling and Conditioning Systems, Food and Beverage Industries, Handling of Moderately Aggressive Liquids, Pressure Boosting and Water Supply Systems, Washing and Cleaning Industry Including Vehicles Washing, Water Treatment

Seal Material Carbon, EPDM, Silicon Carbide

Series e-HM

Shut Off Pressure (Maximum) 145 psi

Stages 5

Standards CAN 22.2, CSA Certified, UL778

Voltage 208-230/460

Voltage - Pumps 208 to 240/480V AC

Width 6 1/2 in
