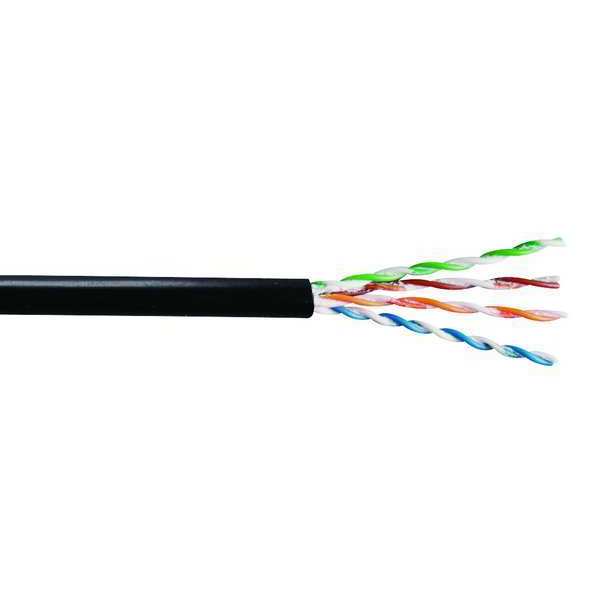

Category Cable, Unshielded, Black Jacket

Home / Category Cable, Unshielded, Black Jacket

Category Cable, Unshielded, Black Jacket

SKU
Brand Genspeed
Categories Data Cable
Description Category Cable, Cable Length 1,000 ft, Conductor Gauge 23 AWG, Fire Rating Riser, Jacket Color Black, Jacket Material PVC, Outside Diameter 1/4 in, Performance Category 6, Shielded Unshielded, Number of Conductors 8, Number of Pairs 4, NEC Article and Type 800 CMR, Standards ANSI/TIA 568-C.2, ANSI/TIA 862, ICEA S-102-700, ICEA S-116-732, ISO/IEC 11801 Ed. 2.0, NEC/CEC Type CMP (NFPA 262), NEC/CEC Type CMR (UL 1666), UL 444, Package Type Pulling Pack, Solid/Stranded Solid, Bend Radius 1 in
graingerSKU: 450X08, mscSKU: , zoro_no: G5125920, mongo_id: 65bbe74a9a749db82272d96f

Web Price

$382.49 / each

Product Details

Bend Radius 1 in

Cable Length 1,000 ft

Category - Data Cable 6

Category Type 6

Conductor Gauge 23 AWG

Conductor Size - Data Cable 23 AWG

Country of Origin (subject to change) United States

Fire Rating Riser

Fire Rating - Data Cable Riser

Frequency 350 MHz

Green Environmental Attribute RoHS 2011/65/EU Compliant

Installation Temp. Range 0 Degrees to 60 Degrees C

Item - Data Cable Category Cable

Jacket Color Black

Jacket Material PVC

Jacket Material (Wire and Cable) PVC

Jacket Material - Wire and Cable PVC

Length 1000 ft.

Maximum Frequency 350 MHz

Maximum Operating Temperature 167 Degrees F

Minimum Operating Temperature -4 Degrees F

NEC Article and Type 800 CMR

Number of Conductor Pairs 8

Number of Conductors 8

Number of Pairs 4

Operating Temp. Range -20 Degrees to 75 Degrees C

Outside Dia. 0.22 in

Outside Diameter 1/4 in

Package Quantity 1

Package Type Pulling Pack

Package Type - Data Cable Pulling Pack

Performance Category 6

Plenum Rated No

Pulling Force 32 lb

Shielded Unshielded

Shielded / Unshielded Unshielded

Solid / Stranded Solid

Solid/Stranded Solid

Spool Length 1,000 ft

Standards ANSI/TIA 568-C.2, ANSI/TIA 862, ICEA S-102-700, ICEA S-116-732, ISO/IEC 11801 Ed. 2.0, NEC/CEC Type CMP (NFPA 262), NEC/CEC Type CMR (UL 1666), UL 444

Total Number of Conductors - Data Cable 8 (4 Pair)

Wire Size 23 AWG
