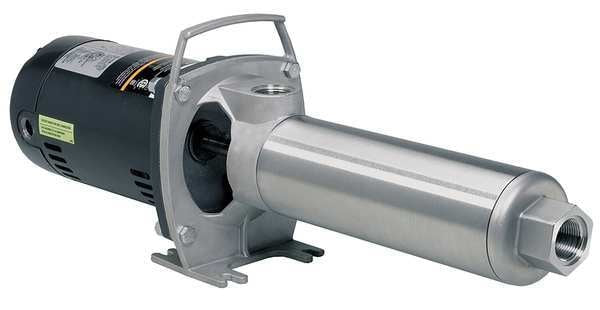

Multi-Stage Booster Pump, 1 hp, 120/240V AC, 1 Phase, 1 in NPT Inlet Size, 14 Stage

SKU
Brand Franklin Electric
Categories Pumps
Description Multi-Stage Booster Pump, Phase Single, Pump Housing Material Stainless Steel, Motor Enclosure Open Dripproof, Horsepower 1 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 20 psi Not Applicable, Flow Rate @ 30 psi Not Applicable, Flow Rate @ 40 psi Not Applicable, Flow Rate @ 50 psi Not Applicable, Flow Rate @ 60 psi Not Applicable, Flow Rate @ 80 psi Not Applicable, Flow Rate @ 100 psi 10 gpm, Flow Rate @ 120 psi 9.5 gpm, Shut Off Pressure (Maximum) 260 psi, Compatible Intake Pipe Size 1 in
graingerSKU: 32GF78, mscSKU: , zoro_no: G8764411, mongo_id: 65bbe6403aaddbd5a9019815

Web Price

$2,233.88 / each

Qty

Product Details

Agency Compliance cCSAus

Amps 14.2/7.1

Bearing Type Ball

Best Efficiency GPM @ PSI 7 @ 177

Best Efficiency Pressure 177 psi

Booster Pump Type Multi-Stage Booster Pump

Case Pressure (Maximum) 375 psi

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 in

Compatible with Media Type Water

Country of Origin (subject to change) Mexico

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Feet of Head (Minimum) 190 ft of head

Flow Rate @ 100 psi 10 gpm

Flow Rate @ 120 psi 9.5 gpm

Flow Rate @ 140 psi 8.5 gpm

Flow Rate @ 160 psi 7.5 gpm

Flow Rate @ 180 psi 7 gpm

Flow Rate @ 20 psi Not Applicable

Flow Rate @ 200 psi 5.5 gpm

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi Not Applicable

Flow Rate @ 50 psi Not Applicable

Flow Rate @ 60 psi Not Applicable

Flow Rate @ 80 psi Not Applicable

For Use With Potable Systems Yes

For Use With Systems Potable

Frame 48Y

Frequency 60 Hz

Height 9 3/64 in

Horsepower 1 hp

Housing Material Stainless Steel

Housing Material - Pumps Stainless Steel

HP - Pumps 1 hp

HP_ 1

Hz_ 60

Impeller Design Closed

Impeller Material Celcon

Impeller Type Closed

Includes Viton(R) Mechanical Seal and High Service Factor Motor

Inlet 1 FNPT

Inlet Size - Pumps 1 in NPT

Intake and Discharge Size 1 in , 1 in

Intake Size 1 in

Intake Type NPT

Length 26 51/64 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 375 psi

Max. Liquid Temp. 120 Degrees F

Max. Pressure 258 psi

Max. Pressure - Pumps 258 psi

Max. PSI Boost @ 2-10 GPM 243 psi @ 2 gpm

Maximum Feet of Head 600 ft of head

Maximum Flow Rate 7 gpm

Maximum Media Temperature 120 Degrees F

Maximum RPM 3,450 RPM

Motor Ambient Temp. Rating 40 Degrees C

Motor Ambient Temperature (Maximum) 104 Degrees F

Motor Ambient Temperature (Minimum) 40 Degrees F

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 48Y

Motor RPM 3,450 RPM

Motor Type Capacitor-Start

Mounting Orientation Horizontal

Nameplate Voltage 115/230V AC

Nominal Voltage 115/230V AC

Number of Stages 14

Number of Stages - Pumps 14

Outlet 1 FNPT

Outlet Size - Pumps 1 in NPT

Overall Height 9.09 in

Overall Length 31.12 in

Overall Width 6.5 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Pressure Boost (Maximum) 243 psi

Priming Manual

Pump Housing Material Stainless Steel

Pump Mounting Position Horizontal

Pumping Application Boosting Water Pressure from City Mains or Private Water Systems, Evaporative Cooling System Misters Water Circulation, Filtration, General Purpose Plumbing, Lawn and Crop Irrigation, Poultry Houses, Pressure Washing Buildings and Floors, Reverse Osmosis, Spray Cooling Equipment

Seal Material Buna-N, Ceramic, Phenolic, Stainless Steel

Series BT4

Shut Off Pressure (Maximum) 260 psi

Stages 14

Standards cCSAus Listed

Suction Lift 10 ft

Suction Lift (Maximum) 10 ft

Thermal Overload Protection Yes

Voltage 115/230

Voltage - Pumps 120/240V AC

Wetted Material Carbon, Cast Iron, Ceramic, Stainless Steel, Viton

Wetted Materials Carbon, Cast Iron, Ceramic, Engineered Composite, Stainless Steel, Viton
