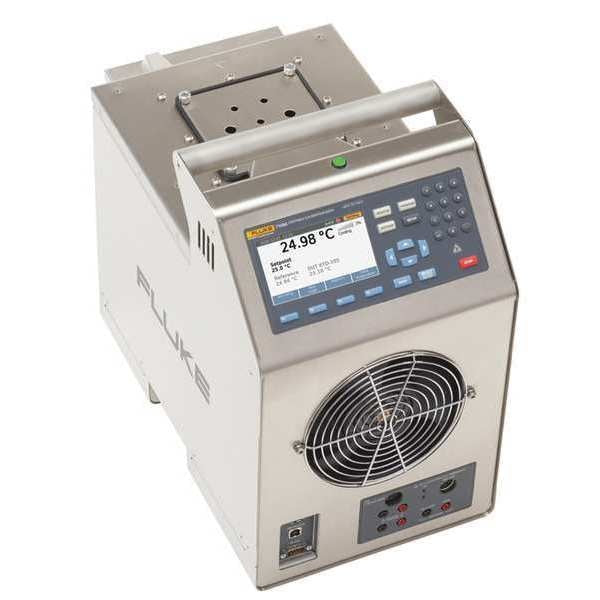

Thermometer Calibrator, 24VDC, 15" H

SKU
Brand Fluke
Categories
Description Thermometer Calibrator, Fluke 7109A, Portable Calibration Baths, -25 Degrees to 250 Degrees C, 15 in H x 9 1/2 in W x 15 13/32 in D, Stainless Steel Case with Synthetic Keypad, Fluid Volume 2.5 L, Tank Size 4 13/32 in Dia x 6 7/64 in D, 3 in Working Dia
graingerSKU: 54DD55, mscSKU: , zoro_no: G8500591, mongo_id: 65bbe59f3aaddbd5a9fd6dcc

Web Price

$20,426.24 / each

Qty

Product Details

3-Wire Device Resistance Characteristics 0.12 ohms Accuracy/0 to 400 ohms Range

4-Wire Device Resistance Characteristics 0.0025 ohms Accuracy/0 to 31 ohms Range, 0.008% Accuracy/31 to 400 ohms Range

Accuracy +/-0.1 Degrees C

Agency Compliance EN 61010-1 (2010), Category II, Degree 2, IEC 61326-1, Basic, RoHS, SCPI

Brand and Series Fluke 7109A

Calibration Certificate NVLAP accredited

Calibration Details Traceable NVLAP-Accredited Calibration

Calibrator Application Autoclave Sterilization, Chemical Reactors, Food Processing, Food Storage Freezers, Pharmaceutical Bioreactors, Steam-in-Place Processes

Calibrator Construction Stainless Steel Case with Synthetic Keypad

Calibrator Type Portable Calibration Baths

Calibrator Weight 44 lb

Common Fluid Compatibility Silicone Oil type 200.10

Country of Origin (subject to change) United States

Current mA Characteristics 0.02 % + 0.002 mA Accuracy/0 to 22 mA Range

Depth 15 45/64 in

Display LCD

Display Resolution 0.001 Degrees , 0.01 Degrees

Fluid Volume 2.5 L

Handle Type (1) Non-Rotating Bail Handle, (2) Recessed Bottom Handles

Height 15 in

Includes Mains Power Cord, USB Cable, Probe Access Cover, Transport Tank Cover, Printed Safety Information, Product CD, Report of Calibration with Label, Clamp-On Ferrite (-P Models), Din Connector (-P Models), Test Lead Kit (-P Models), Proc Electricity

Interface RS-232

Loop Power Characteristics +/-6V Accuracy / 24V DC Range

Loop Supply Voltage 24V DC

Max. Loop Current 4 to 20mA

Overall Depth 15.4 in

Overall Dimensions 15 in H x 9 1/2 in W x 15 13/32 in D

Overall Height 15 in

Overall Width 9.5 in

Package Quantity 1

Power Required 115V AC ( +/-10%), 50/60 Hz

Power Source Loop Power

Power Source Details 24V DC

Promotion Restriction Not eligible for promotion

Reference Input Resistance Characteristics 0.0025 ohms Accuracy (0 to 42 ohms); 0.006 % Accuracy (42 to 400 ohms)

Reference Input Temperature Characteristics 0.007% + 0.015 Degrees C Accuracy at -25 Degrees to 250 Degrees C

Reference Junction Temperature Characteristics 0.35 Degrees C Accuracy at 0 Degrees to 40 Degrees C

Removable Inserts No

Repeatability 0.04 Degrees C

Resistance Sensing Current Characteristics 8% at 1 mA

RTD Temperature Range -25 Degrees to 140 Degrees C

RTD Temperature Range C -25 Degrees to 140 Degrees C

RTD Type PT-100, JIS

Stability 0.01 Degrees C

Standards FDA, ISO

Tank Depth 6.1 in

Tank Opening 4.4 in

Tank Size 4 13/32 in Dia x 6 7/64 in D, 3 in Working Dia

Temp. Accuracy +/-0.1 Degrees C

Temp. Range -25 Degrees to 140 Degrees C

Temp. Stability +/-0.015 Degrees C

Temperature Range -25 Degrees to 250 Degrees C

Thermocouple mV Characteristics 0.025% + 0.01 mV at -10 to 100 mV

Thermocouple Temperature Accuracy Characteristics Type C: 0.84 Degrees C at 0 Degrees to 250 Degrees C, Type D: 1.12 Degrees C at 0 Degrees to 250 Degrees C, Type E: 0.44 Degrees C at -25 Degrees to 250 Degrees C, Type G/W: 3.34 Degrees C at 0 Degrees to 250 Degrees C, Type J: 0.44 Degrees C at -25 Degrees to 250 Degrees C, Type K: 0.49 Degrees C at -25 Degrees to 250 Degrees C, Type L: 0.42 Degrees C at -25 Degrees to 250 Degrees C, Type M: 0.48 Degrees C at -25 Degrees to 250 Degrees C, Type N: 0.57 Degrees C at -25 Degrees to 250 Degrees C, Type R: 1.92 Degrees C at 0 Degrees to 250 Degrees C, Type S: 1.88 Degrees C at 0 Degrees to 250 Degrees C, Type T: 0.53 Degrees C at -25 Degrees to 250 Degrees C, Type U: 0.48 Degrees C at -25 Degrees to 250 Degrees C

Thermocouple Temperature Range -25 Degrees to 250 Degrees C

Thermocouple Temperature Range C -25 Degrees to 250 Degrees C

Thermocouple Type mV, E

Typical Cooling Time 45 min (140 Degrees to 25 Degrees C), 75 min (25 Degrees to -25 Degrees C)

Typical Heating Time 35 min (-25 Degrees to 25 Degrees C), 55 min (25 Degrees to 140 Degrees C)

Typical Settling Time 10 min

Typical Uniformity 0.02 Degrees C

Voltage 24 V DC

Well Depth 6-7/64 in

Width 9 1/2 in

With Process Connections Yes

Working Area 3 in x 3 in
