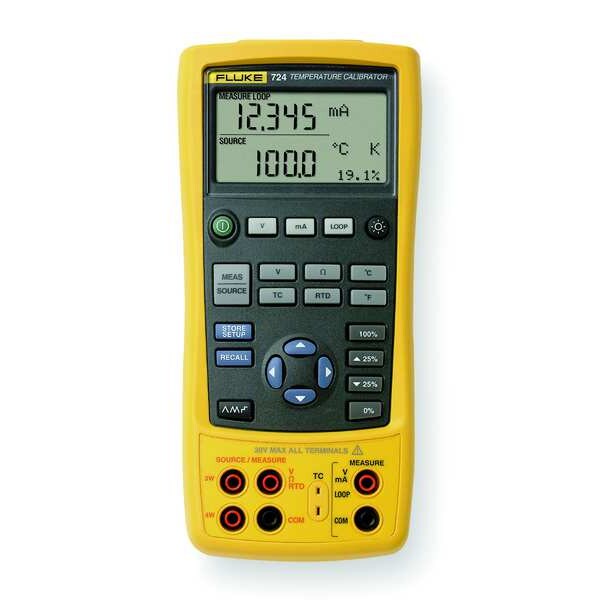

Temp Calibrator, to2498 Degrees F, NIST

SKU
Brand Fluke
Categories
Description Handheld Temperature Calibrator, Sensor Type RTD, Thermocouple, +/-0.005 Percent of Range per Degrees C from -10 Degrees to 18 Degrees C, 28 Degrees to 55 Degrees C, -328 Degrees to 1,472 Degrees F/-200 Degrees to 800 Degrees C (RTD), -328 Degrees to 2,498 Degrees F/-200 Degrees to 1,370 Degrees C (Thermocouple)
graingerSKU: 6KD41, mscSKU: 02334928, zoro_no: G8394452, mongo_id: 65bbe8a322d7a989a990857d

Web Price

$4,379.99 / each

Qty

Product Details

Accuracy Dependent on Thermocouple or RTD Type

Accuracy - Measure 0.02% +2 Counts

Accuracy - Source 0.025 % +1 Count

Auto Power Off Yes

Calibration Certificate NIST

Calibration Details +/-0.005% of Range per Degrees C from -10 Degrees to 18 Degrees C, 28 Degrees to 55 Degrees C

Country of Origin (subject to change) Malaysia

Current Measurement Range 0 to 24mADC

Data Hold No

Display Multiline LCD

For RTD Type Ni 120, Pt 100 (385), Pt 100 (393), Pt 100 (JIS), Pt 1000 (385), Pt 200 (385), Pt 500 (385)

For Thermocouple Type Type B, Type BP, Type E, Type J, Type K, Type L, Type N, Type R, Type S, Type T, Type U, Type XK

Includes Instructions, Test Clips, Test Leads

Includes NIST-Traceable Certificate Yes

Loop Supply Voltage 24V DC

Manufacturer Warranty Length 3 yr

Manufacturers Warranty Length 3 yr

Max. Loop Current 22mADC

Measurement Functions Current, Resistance, Temperature, Voltage

Millivolt Accuracy 0.02% +2

Millivolt Range 0 to 100mV DC

Number of Digits 5

Package Quantity 1

Promotion Restriction Not eligible for promotion

Resistance Accuracy 15 to 3,200 ohm

Resistance Measurements 0 to 3200 ohm

Resistance Range 0 to 3,200 ohm

Resistance Source 15 to 3200 ohm

RTD Temperature Range -328 Degrees to 1472 Degrees F, (-200 Degrees to 800 Degrees C) (Dependent on Type RTD)

RTD Temperature Range C -200 Degrees to 800 Degrees C

RTD Temperature Range F -328 Degrees to 1,472 Degrees F

RTD Type Ni 120, Pt 100 (385), Pt 200 (385), Pt 500 (385), Pt 1000 (385), Pt 100 (393) and Pt 100 (JIS)

Sensor Maximum Temperature ÃÂ°C 1,800 Degrees C (Type B), 950 Degrees C (Type E), 1,200 Degrees C (Type J), 1,370 Degrees C (Type K), 900 Degrees C (Type L), 13,000 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T), 600 Degrees C (Type U)

Sensor Maximum Temperature C 1,800 Degrees C (Type B), 950 Degrees C (Type E), 1,200 Degrees C (Type J), 1,370 Degrees C (Type K), 900 Degrees C (Type L), 13,000 Degrees C (Type N), 1,750 Degrees C (Type R), 1,750 Degrees C (Type S), 400 Degrees C (Type T), 600 Degrees C (Type U)

Sensor Minimum Temperature ÃÂ°C 600 Degrees C (Type B), -200 Degrees C (Type E), -200 Degrees C (Type J), -200 Degrees C (Type K), -200 Degrees C (Type L), -200 Degrees C (Type N), -20 Degrees C (Type R), -20 Degrees C (Type S), -200 Degrees C (Type T), -200 Degrees C (Type U)

Sensor Minimum Temperature C 600 Degrees C (Type B), -200 Degrees C (Type E), -200 Degrees C (Type J), -200 Degrees C (Type K), -200 Degrees C (Type L), -200 Degrees C (Type N), -20 Degrees C (Type R), -20 Degrees C (Type S), -200 Degrees C (Type T), -200 Degrees C (Type U)

Sensor Temperature Range -20 Degrees to 1,750 Degrees C (Type R), -20 Degrees to 1,750 Degrees C (Type S), -200 Degrees to 1,200 Degrees C (Type J), -200 Degrees to 1,370 Degrees C (Type K), -200 Degrees to 13,000 Degrees C (Type N), -200 Degrees to 400 Degrees C (Type T), -200 Degrees to 600 Degrees C (Type U), -200 Degrees to 900 Degrees C (Type L), -200 Degrees to 950 Degrees C (Type E), 600 Degrees to 1,800 Degrees C (Type B)

Sensor Type RTD, Thermocouple

Source Voltage -10mV to 10V DC

Source/Simulate T, Ohms, V

Temperature Range -328 Degrees to 1,472 Degrees F/-200 Degrees to 800 Degrees C (RTD), -328 Degrees to 2,498 Degrees F/-200 Degrees to 1,370 Degrees C (Thermocouple)

Thermocouple Temperature Range -328 Degrees to 2498 Degrees F, (-200 Degrees to 1370 Degrees C) (Dependent on Thermocouple Type)

Thermocouple Temperature Range C -200 Degrees to 1,370 Degrees C

Thermocouple Temperature Range F -328 Degrees to 2,498 Degrees F

Thermocouple Type J , K, T, E, R, S, B, L, U, N, XK and BP

Voltage Measurement Range 0 to 30V DC
