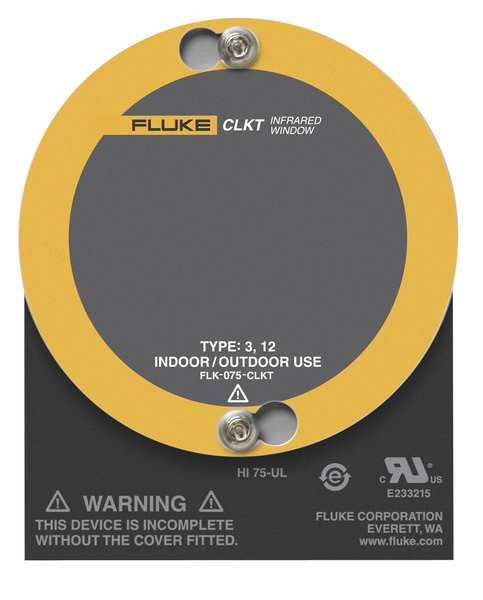

Round Infrared Window, 100mm dia, Type3/12

SKU
Brand Fluke
Categories
Description 4 In. Round Infrared Window, Crystal Insert Size 100mm dia, Viewing Aperture Size 89mm dia, Viewing Aperture Area 6322 sq mm, Window Thickness 4 mm, NEMA Rating 12, 3, IP Rating 65, Gasket Maximum Temperature 250 Degrees C (482 Degrees F), Body Maximum Temperature 659 Degrees C (1219 Degrees F), Optic Maximum Temperature 1400 Degrees C (2552 Degrees F), Voltage Range Any, Components Grounder Metal, Body Material Aluminum, Includes Access Key and Installation Instructions on a CD
graingerSKU: 4LHD2, mscSKU: , zoro_no: G0591394, mongo_id: 65bbe82a22d7a989a98dd618

Web Price

$911.24 / each

Qty

Product Details

Body Material Aluminum

Body Maximum Temperature 659 Degrees C (1219 Degrees F)

Components Grounder Metal

Country of Origin (subject to change) China

Crystal Insert Size 100mm dia

Gasket Maximum Temperature 250 Degrees C (482 Degrees F)

Includes Access Key and Installation Instructions on a CD

IP Rating 65

IR Window IP Rating IP65

IR Window NEMA Rating NEMA 12, NEMA 3

Manufacturers Warranty Length 1 yr

NEMA Rating 12, 3

Optic Maximum Temperature 1400 Degrees C (2552 Degrees F)

Package Quantity 1

Promotion Restriction Not eligible for promotion

Special Features Allowing the Thermographer to See Potential Problems in Visual Light and Thermographic Mode, Each Infrared Window Comes Complete with a Security Access Key, Installation Instructions and Self Adhesive Drilling Template

Use Indoor, Outdoor

Viewing Aperture Area 6322 sq mm

Viewing Aperture Size 89mm dia

Voltage Range Any

Window Thickness 4 mm
