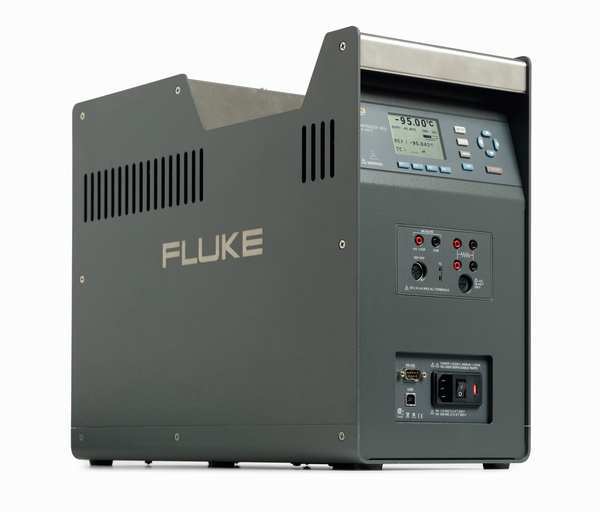

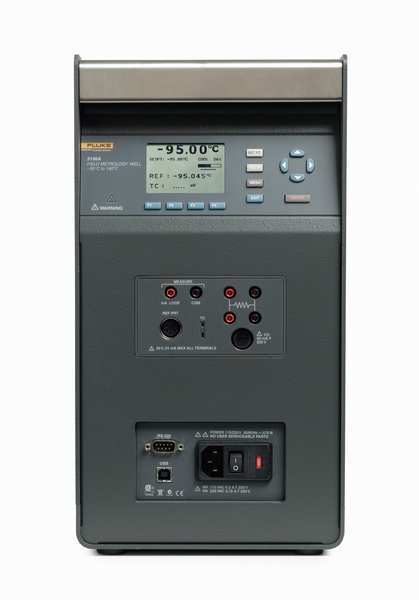

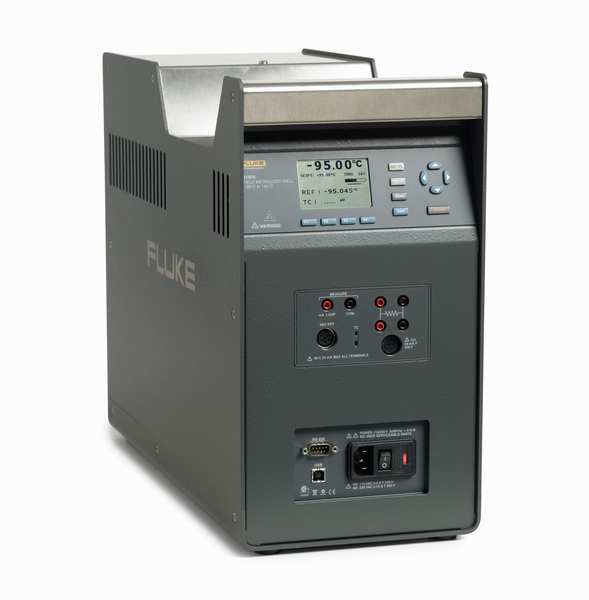

Drywell, Temperature Calibrator

SKU
Brand Fluke
Categories
Description Drywell, Field Metrology Well, Fluke 9190A, -139 Degrees to 284 Degrees F/-95 Degrees to 140 Degrees C, Interface RS-232, USB Cable, Number of Set Points Variable, 18 13/16 in H x 8 in W x 14 29/32 in D
graingerSKU: 19YH33, mscSKU: , zoro_no: G8016687, mongo_id: 65bbe6d43aaddbd5a9058106

Web Price

$33,212.49 / each

Qty

Product Details

4-Wire Device Resistance Characteristics Range: 0 to 400 ohms/Accuracy: +/-0.0025 ohms (0 to 42 ohms), +/-60 ppm of Reading (42 to 400 ohms)

Accuracy +/-0.2 Degrees C Full Range

Agency Compliance EU Directives, CSA, Australian EMC Requirements

Application Blood Banks, Cold Rooms, Freeze Dryers, Laboratory Refrigerators, Medical Freezers, Sterilizers (Autoclaves)

Brand and Series Fluke 9190A

Calibration Certificate yes

Calibrator Accuracy +/-0.2 Degrees C

Calibrator Type Field Metrology Well

Calibrator Weight 35 lb

Country of Origin (subject to change) United States

Current mA Characteristics 0.02% + 0.002 mA Accuracy/4 to 22 mA, 4 to 24 mA Range

Display LCD

Display Resolution 0.01 Degrees

Display Temperature Accuracy +/-0.2 Degrees C

For RTD Type 2-Wire, 3-Wire, 4-Wire, Ni-120, PT-100 (385), PT-100 (3926), PT-100 (JIS)

For Stem Diameter (2) 3 mm, (2) 4 mm, (2), 6 mm

For Thermocouple Type Type C, Type E, Type J, Type K, Type L, Type M, Type N, Type R, Type S, Type T, Type U

Includes 6 ft Main Power Cord, 9930 Interface-It Calibration Software and Users Guide, Getting Started Manual, Insert Removal Tool, Product CD, Report of Calibration and Calibration Label, USB Cable, Well Insulator Cap

Interface RS-232, USB Cable

Loop Supply Voltage 24V DC

Max. Loop Current 4 to 20mA

Number of Set Points Variable

Overall Depth 14.91 in

Overall Dimensions 18 13/16 in H x 8 in W x 14 29/32 in D

Overall Height 18.81 in

Overall Width 8 in

Package Quantity 1

Power Source Plug-In

Power Source Details 100 to 115V, 200 to 230V

Probe Connection Types (1) 4-Terminal RTD Input, (1) Miniature connectors (ASTM E1684)

Promotion Restriction Not eligible for promotion

Reference Input Resistance Characteristics +/--0.0025 ohm Accuracy (0 to 42 ohm), +/-60 ppm of Reading Accuracy (42 to 400 ohm)

Reference Input Temperature Characteristics +/-0.010 Degrees C at -95 Degrees C, +/-0.013 Degrees C at -25 Degrees C, +/-0.015 Degrees C at 0 Degrees C, +/-0.020 Degrees C at 50 Degrees C, +/-0.025 Degrees C at 140 Degrees C

Reference Junction Temperature Characteristics +/- 0.35 Degrees C Accuracy at Ambient Temperature of 13 Degrees to 33 Degrees C

Resistance Sensing Current Characteristics 0.02% at 0.002 mA; Cal 4-22 mA, Spec 4-24 mA

RTD Temperature Range -139 Degrees to 284 Degrees F (-95 Degrees to 140 Degrees C)

RTD Temperature Range C -95 Degrees to 140 Degrees C

RTD Temperature Range F -139 Degrees to 284 Degrees F

RTD Type 4 Wire, 3 Wire, 2 Wire

Sensor Type RTD, Thermocouple

Set Point Style Adjustable

Single Well/Dual Well Single Well

Stability +/-0.015 Degrees C

Stabilization Time 15 min

Standards IEC 61010-1, Installation Category II, Pollution degree 2, IEC 61326-1: Basic

Temperature Accuracy +/-0.2 Degrees C

Temperature Range -139 Degrees to 284 Degrees F/-95 Degrees to 140 Degrees C

Thermocouple mV Characteristics 0.025% + 0.01 mV at -10 to 75 mV

Thermocouple Temperature Accuracy Characteristics Type C: +/-1.00 Degrees C at 140 Degrees C, Type E: +/-0.60 Degrees C at 140 Degrees C, Type J: +/-0.70 Degrees C at 140 Degrees C, Type K: +/-0.75 Degrees C at 140 Degrees C, Type L: +/-0.65 Degrees C at 140 Degrees C, Type M: +/-0.65 Degrees C at 140 Degrees C, Type N: +/-0.75 Degrees C at 140 Degrees C, Type R: +/-1.60 Degrees C at 140 Degrees C, Type S: +/-1.60 Degrees C at 140 Degrees C, Type T: +/-0.60 Degrees C at 140 Degrees C, Type U: +/-0.70 Degrees C at 140 Degrees C

Thermocouple Temperature Range -139 Degrees to 284 Degrees F (-95 Degrees to 140 Degrees C)

Thermocouple Temperature Range C -95 Degrees to 140 Degrees C

Thermocouple Temperature Range F -139 Degrees to 284 Degrees F

Thermocouple Type C, E, J, K, L, M, N, R, S, T, U

Typical Cooling Time 80 min (23 Degrees to -90 Degrees C), 90 min (23 Degrees to -95 Degrees C), 60 min (140 Degrees to 23 Degrees C)

Typical Heating Time 40 min (-95 Degrees to 140 Degrees C)

Typical Uniformity +/-0.05 Degrees C

Well Depth 6.31 in

Well Diameter 1.19 in

Well Size 1 3/16 in Dia x 6 5/16 D Well

With Process Connections Yes
