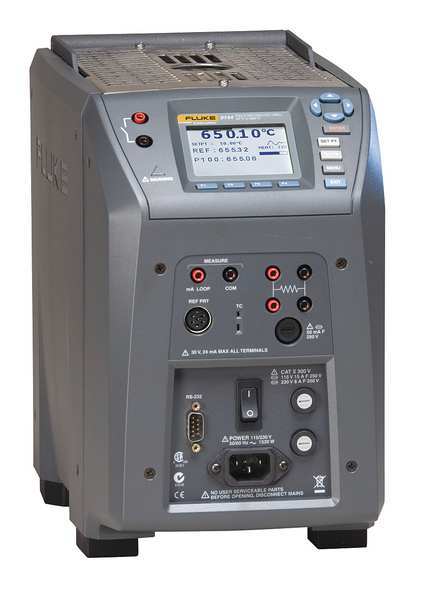

Drywell, Temperature

SKU
Brand Fluke
Categories
Description Drywell, Field Metrology Well, Fluke 9144, -196 Degrees to 660 Degrees C, 0 Degrees to 1,480 Degrees C, Calibration Details NVLAP Accredited Calibration Included, Interface RS-232, Number of Set Points Variable, 11 13/32 in H x 7 5/16 in W x 11 39/64 in D
graingerSKU: 33W990, mscSKU: , zoro_no: G8416344, mongo_id: 65bbe75b9a749db822731bdd

Web Price

$8,043.75 / each

Qty

Product Details

Accuracy +/-0.05 Degrees C

Agency Compliance CE, CSA, C-TICK, ROHS, WEEE

Application Field Testing

Brand and Series Fluke 9144

Calibration Certificate NVLAP accredited

Calibration Details NVLAP Accredited Calibration Included

Calibrator Accuracy +/-0.35 Degrees C at 420 Degrees C, +/-0.35 Degrees C at 50 Degrees C, +/-0.5 Degrees C at 660 Degrees C

Calibrator Application Industrial Process Environment

Calibrator Type Field Metrology Well

Calibrator Weight 17 lb

Country of Origin (subject to change) United States

Display LCD

Display Resolution 0.01 Degrees

Display Temperature Accuracy +/-0.35 Degrees C at 420 Degrees C, +/-0.35 Degrees C at 50 Degrees C, +/-0.5 Degrees C at 660 Degrees C

For Stem Diameter (2) 3 mm, (2) 4 mm, (2) 6 mm

Includes 9144 Field Metrology Well, Power Cord, RS-232 Cable, User Guide, Technical Manual CD, Report of Calibration, Calibration Label, Tongs (Insert Removal Tool), 9930 Interface-it Software and User's Guide

Includes NIST-Traceable Certificate No

Interface RS-232

Number of Set Points Variable

Overall Depth 11.61 in

Overall Dimensions 11 13/32 in H x 7 5/16 in W x 11 39/64 in D

Overall Height 11.41 in

Overall Width 7.31 in

Package Quantity 1

Power Source Details 100 to 115V, 230V

Promotion Restriction Not eligible for promotion

Sensor Type Thermocouple

Set Point Style Adjustable

Single Well/Dual Well Single Well

Stability +/-0.03 Degrees C at 50 Degrees C, +/-0.04 Degrees C at 420 Degrees C, +/-0.05 Degrees C at 660 Degrees C

Standards NVLAP Accredited

Temperature Accuracy +/-0.05 Degrees C

Temperature Range -196 Degrees to 660 Degrees C, 0 Degrees to 1,480 Degrees C

Typical Cooling Time 25 min (660 Degrees to 100 Degrees C), 35 min (660 Degrees to 50 Degrees C)

Typical Heating Time 15 min (50 Degrees to 660 Degrees C)

Typical Uniformity +/-0.05 Degrees C at 50 Degrees C, +/-0.35 Degrees C at 420 Degrees C, +/-0.5 Degrees C at 660 Degrees C, +/-0.02 Degrees C at 50 Degrees C, +/-0.05 Degrees C at 420 Degrees C, +/-0.10 Degrees C at 660 Degrees C

Well Depth 5.91 in

Well Size 5 29/32 D Well

With Process Connections No
