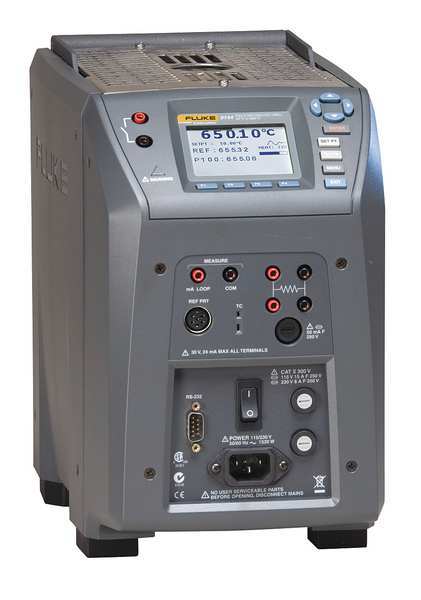

Drywell, Temperature

SKU
Brand Fluke
Categories
Description Drywell, Field Metrology Well, Fluke 9144, -196 Degrees to 660 Degrees C, 0 Degrees to 1,480 Degrees C, Calibration Details NVLAP Accredited Calibration Included, Interface RS-232, Number of Set Points Variable, 11 13/32 in H x 7 5/16 in W x 11 39/64 in D
graingerSKU: 33W987, mscSKU: , zoro_no: G7837085, mongo_id: 65bbe8289a749db8227795df

Web Price

$11,471.25 / each

Qty

Product Details

4-Wire Device Resistance Characteristics Range: 0 to 400 ohms/Accuracy: +/-0.0025 ohms (0 to 42 ohms), +/-60 ppm of Reading (42 to 400 ohms)

Accuracy +/-0.05 Degrees C

Agency Compliance CE, CSA, C-TICK, ROHS, WEEE

Application Field Testing

Brand and Series Fluke 9144

Calibration Certificate NVLAP accredited

Calibration Details NVLAP Accredited Calibration Included

Calibrator Accuracy +/-0.35 Degrees C at 420 Degrees C, +/-0.35 Degrees C at 50 Degrees C, +/-0.5 Degrees C at 660 Degrees C

Calibrator Application Industrial Process Environment

Calibrator Type Field Metrology Well

Calibrator Weight 17 lb

Country of Origin (subject to change) United States

Current mA Characteristics 0.02% + 2 mV Accuracy/4 to 22 mA, 4 to 24 mA Range

Display LCD

Display Resolution 0.01 Degrees

Display Temperature Accuracy +/-0.35 Degrees C at 420 Degrees C, +/-0.35 Degrees C at 50 Degrees C, +/-0.5 Degrees C at 660 Degrees C

For RTD Type 4-Wire, Ni-120

For Stem Diameter (4) 1/4 in

For Thermocouple Type Type C, Type E, Type J, Type K, Type L, Type M, Type N, Type R, Type S, Type T, Type U

Includes 9144 Field Metrology Well, Insert for Configuration Ordered, Power Cord, RS-232 Cable, User Guide, Technical Manual CD, Report of Calibration, Calibration Label, 6-pin DIN Connector, Test Lead Kit, Clamp-on ferrites (3), Tongs (insert removal tool), 9930 Interface-it Software and User's Guide

Includes NIST-Traceable Certificate No

Interface RS-232

Loop Supply Voltage 24V DC

Max. Loop Current 24 mA

Number of Set Points Variable

Overall Depth 11.61 in

Overall Dimensions 11 13/32 in H x 7 5/16 in W x 11 39/64 in D

Overall Height 11.41 in

Overall Width 7.31 in

Package Quantity 1

Power Source Details 100 to 115V, 230V

Probe Connection Types (1) 4-Terminal RTD Input, (1) Small Connectors TC

Promotion Restriction Not eligible for promotion

Reference Input Resistance Characteristics +/--0.0025 ohm Accuracy (0 to 42 ohm), +/-60 ppm of Reading Accuracy (42 to 400 ohm)

Reference Input Temperature Characteristics +/-0.010 Degrees C at -25 Degrees C, +/-0.015 Degrees C at 0 Degrees C, +/-0.020 Degrees C at 50 Degrees C, +/-0.025 Degrees C at 150 Degrees C, +/-0.030 Degrees C at 200 Degrees C, +/-0.040 Degrees C at 350 Degrees C, +/-0.050 Degrees C at 420 Degrees C, +/-0.070 Degrees C at 660 Degrees C

Reference Junction Temperature Characteristics +/- 0.35 Degrees C Accuracy at Ambient Temperature of 13 Degrees to 33 Degrees C

Resistance Sensing Current Characteristics 0.02% at 2 mV; Cal 4-22 mA, Spec 4-24 mA

RTD Temperature Range -196 to 660 Degrees C

RTD Temperature Range C -196 Degrees to 660 Degrees C

RTD Type NI-120, 385, 3892, JIS

Sensor Type RTD, Thermocouple

Set Point Style Adjustable

Single Well/Dual Well Single Well

Stability +/-0.03 Degrees C at 50 Degrees C, +/-0.04 Degrees C at 420 Degrees C, +/-0.05 Degrees C at 660 Degrees C

Standards NVLAP Accredited

Temperature Accuracy +/-0.05 Degrees C

Temperature Range -196 Degrees to 660 Degrees C, 0 Degrees to 1,480 Degrees C

Thermocouple mV Characteristics 0.025% + 0.01 mV at -10 to 75 mV

Thermocouple Temperature Accuracy Characteristics Type C: +/-1.1 Degrees C at 660 Degrees C, Type E: +/-0.7 Degrees C at 660 Degrees C, Type J: +/-0.7 Degrees C at 660 Degrees C, Type K: +/-0.8 Degrees C at 660 Degrees C, Type L: +/-0.7 Degrees C at 660 Degrees C, Type M: +/-1.4 Degrees C at 660 Degrees C, Type N: +/-0.9 Degrees C at 660 Degrees C, Type R: +/-1.4 Degrees C at 660 Degrees C, Type S: +/-1.5 Degrees C at 660 Degrees C, Type T: +/-0.8 Degrees C at 400 Degrees C, Type U: +/-0.75 Degrees C at 600 Degrees C

Thermocouple Temperature Range 0 to 1480 Degrees C (type S)

Thermocouple Temperature Range C 0 Degrees to 1,480 Degrees C

Thermocouple Type C, E, J, K, L, M, N, R, S, T, U

Typical Cooling Time 25 min (660 Degrees to 100 Degrees C), 35 min (660 Degrees to 50 Degrees C)

Typical Heating Time 15 min (50 Degrees to 660 Degrees C)

Typical Uniformity +/-0.05 Degrees C at 50 Degrees C, +/-0.35 Degrees C at 420 Degrees C, +/-0.5 Degrees C at 660 Degrees C, +/-0.02 Degrees C at 50 Degrees C, +/-0.05 Degrees C at 420 Degrees C, +/-0.10 Degrees C at 660 Degrees C

Well Depth 5.91 in

Well Size 5 29/32 D Well

With Process Connections Yes
