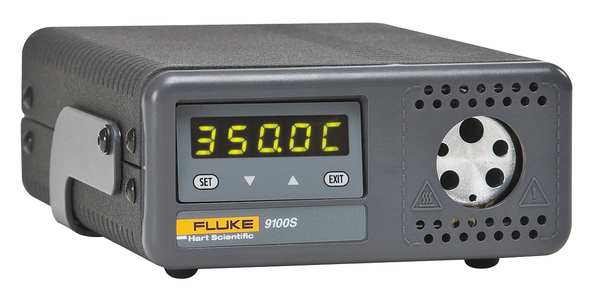

Dry Well Calibrator, 1/16-1/4 In Hole

SKU
Brand Fluke
Categories
Description Dry Well Calibrator, Handheld Dry-Well, Fluke 9100S, 95 Degrees to 707 Degrees F/35 Degrees to 375 Degrees C, Calibration Details Data at 50 Degrees C, 100 Degrees C, 150 Degrees C, 200 Degrees C, 250 Degrees C, 300 Degrees C and 375 Degrees C, Hot Block Temperature Range 95 to 707 F, 35 to 375 C, Interface RS-232, 2 1/4 in H x 4 29/32 in W x 6 7/64 in D
graingerSKU: 4LGZ9, mscSKU: , zoro_no: G8002522, mongo_id: 65bbe7d19a749db82275cb71

Web Price

$4,159.99 / each

Qty

Product Details

(hidden) product type builder Fluke 9100S 9100S-A-156

Brand and Series Fluke 9100S

Calibration Certificate NIST

Calibration Details Data at 50 Degrees C, 100 Degrees C, 150 Degrees C, 200 Degrees C, 250 Degrees C, 300 Degrees C and 375 Degrees C

Calibrator Accuracy +/-0.25 Degrees C at 100 Degrees C, +/-0.25 Degrees C at 50 Degrees C, +/-0.5 Degrees C at 375 Degrees C

Calibrator Type Handheld Dry-Well

Calibrator Weight 2 lb

Country of Origin (subject to change) United States

Depth 6 7/64 in

Display Resolution 0.1 Degrees

For Stem Diameter 0.0625 in, 0.125 in, 0.15625 in, 0.1875 in, 0.25 in

Height 2 1/4 in

Hot Block Temperature Range 95 to 707 F, 35 to 375 C

Includes Instructions

Includes NIST-Traceable Certificate Yes

Interchangeable Insert No

Interface RS-232

Overall Depth 6.11 in

Overall Dimensions 2 1/4 in H x 4 29/32 in W x 6 7/64 in D

Overall Height 2.25 in

Overall Width 4.91 in

Package Quantity 1

Power Required 115V AC ( +/-10%), 55/65 Hz

Power Source Plug-In

Power Source Details 115V AC, 230V AC

Promotion Restriction Not eligible for promotion

Removable Inserts No

Set Point Style Adjustable

Stability +/-0.07 Degrees C at 50 Degrees C, +/-0.1 Degrees C at 100 Degrees C, +/-0.3 Degrees C at 375 Degrees C

Stabilization Time 5 min

Stem Hole Dia. 0.0625 in, 0.125 in, 0.15625 in, 0.1875 in and 0.25 in Probes

Temp. Accuracy +/- 0.25 Degrees C at 100 Degrees C, +/- 0.25 Degrees C at 50 Degrees C, +/- 0.5 Degrees C at 375 Degrees C, +/-0.45 Degrees F at 122 Degrees F, +/-0.9 Degrees F at 707 Degrees F

Temp. Range 35 Degrees to 375 Degrees C, 95 Degrees to 707 Degrees F

Temp. Stability +/-0.07 Degrees C at 50 Degrees C; +/-0.1 Degrees C at 100 Degrees C; +/-0.3 Degrees C at 375 Degrees C

Temperature Accuracy +/-0.25 Degrees C (at 100 Degrees C), +/-0.25 Degrees C (at 50 Degrees C), +/-0.45 Degrees F (at 122 Degrees F), +/-0.5 Degrees C (at 375 Degrees C), +/-0.9 Degrees F (at 707 Degrees F)

Temperature Range 95 Degrees to 707 Degrees F/35 Degrees to 375 Degrees C

Typical Cooling Time 14 min (375 Degrees to 100 Degrees C)

Typical Heating Time 9.5 min (35 Degrees to 375 Degrees C)

Typical Uniformity +/-0.2 Degrees C

Well Depth 4 in

Well Size 4 in D Well

Width 4 9/10 in

With Process Connections No
