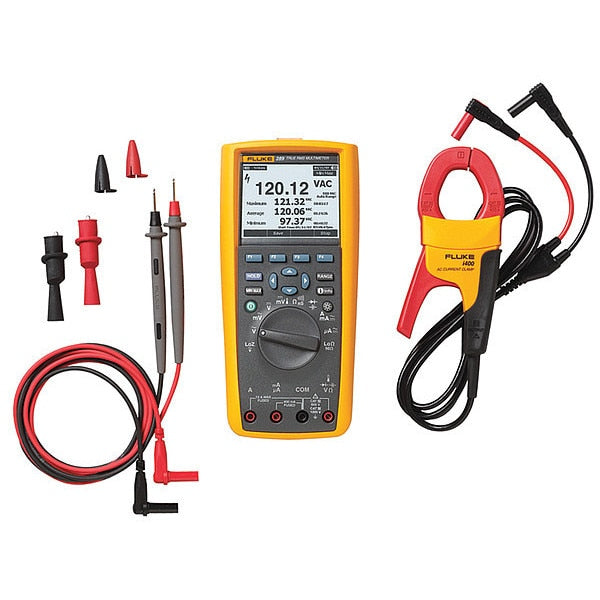

Digital Multimeter, LCD Display

SKU
Brand Fluke
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.4 Percent, Basic DC Voltage Accuracy +/-0.025 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy +/-0.05 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000
graingerSKU: 55PC75, mscSKU: , zoro_no: G503614718, mongo_id: 65bbe7d03aaddbd5a90ba2b3

Web Price

$1,229.99 / each

Qty

Product Details

AC Current Measurement Resolution 500 uA

AC Response Calculation TRMS

AC Voltage Measurement Resolution 50 V

Additional Components Current Clamp Probe

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/-0.6%

Basic AC Voltage Accuracy +/-0.4%

Basic DC Accuracy 0.025% +2 Digits

Basic DC Current Accuracy +/-0.05%

Basic DC Voltage Accuracy +/-0.025% + 2 Digits

Battery Access Yes

Battery Chemistry Alkaline

Battery Size AA

Battery Type AA Alkaline

Bluetooth Compatible Yes

Calibration Certificate Not Included

Calibration Certificate Included No

Capacitance Measurement Accuracy 1.00 %

Capacitance Measurement Resolution 1 nF

Capacitance Range 1 nF to 1000 nF

Capacity 2.24 Ah

Computer Interface Connection Type USB

Country of Origin (subject to change) United States

Current Leakage Testing No

Data Hold Yes

Data Logging Yes

DC Current Measurement Resolution 500 uA

DC Voltage Measurement Resolution 50 V

Depth 2.4 in

Diode Test Yes

Display LCD

Display Type LCD

Dustproof No

Duty Cycle Yes

Elapse Time Clock Yes

Features Bluetooth-Compatible ; Data Logging

Frequency Measurement Accuracy 0.005 %

Frequency Measurement Resolution 99.999 Hz

Fuse Access Yes

Includes Alligator Clips, Current Clamp, Test Lead Set

Instrument Counts 6,000

Instrument Frequency Counter Range 99.99 Hz to 999.99 kHz

Instrument Safety Rating CAT IV 600V

Intrinsically Safe No

Manufacturers Warranty Length 1 yr

Max. AC Amps 400 A

Max. AC Volts 1,000

Max. DC Amps 400 A

Max. DC Volts 1,000

Max. Ohms 500 megohm

Maximum AC Current Measurement 400 A

Maximum AC Voltage Measurement 1,000 V

Maximum Capacitance Measurement 1,000 nF

Maximum DC Current Measurement 400 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 999.99 kHz

Maximum Operating Temperature 131 Degrees F

Maximum Resistance Measurement 500 megaohm

Maximum Storage Temperature 140 Degrees F

Maximum Temperature Measurement 732 Degrees F

Min-Max-Avg Button Included Yes

Min./Max. Memory Yes

Minimum AC Current Measurement 0 uA

Minimum AC Voltage Measurement 0 V

Minimum Capacitance Measurement 1 nF

Minimum DC Current Measurement 0 mA

Minimum DC Voltage Measurement 0 V

Minimum Frequency Measurement 99.99 Hz

Minimum Operating Temperature -4 Degrees F

Minimum Storage Temperature -40 Degrees F

Minimum Temperature Measurement -128 Degrees F

Minimum/Maximum Memory Yes

Multimeter Features Bluetooth-Compatible, Data Logging

Multiple On-Screen Displays Yes

NIST Certification By Not Certified

NIST Certification By Manufacturer Not Certified

Overall Height 8.8 in

Overall Width 4 in

Package Quantity 1

Parameters Measured AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)

Promotion Restriction Not eligible for promotion

Pulse Width Yes

Removable Screen No

Resistance Measurement Accuracy +/-0.05%

Resistance Measurement Resolution 50 ohm

Safety Rating CAT III 1000V; CAT I 600V

Series FLUKE(R) Fluke-289

Software Included No

Special Features Low Pass Filter for Accurate Voltage and Frequency Measurements, Zoom on Trend Provides Unprecedented Ability to View and Analyze Trend, Capture Data

Standards CE

Style Full Size

Temp. Range -128 Degrees F to 732 Degrees F (-200 Degrees C to 1350 Degrees C)

Temperature Measurement Accuracy 1.00 %

Thermal Imaging No

Time of Day Clock Yes

True RMS Bandwidth 100 kHz

Waterproof No

Weight 28 oz
