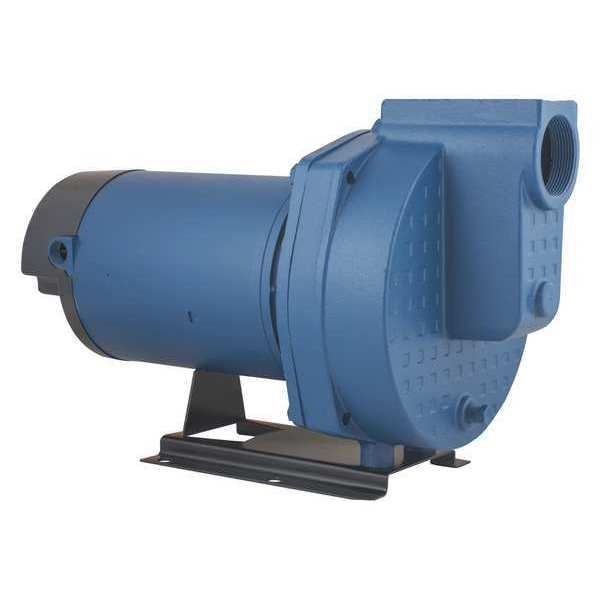

Sprinkler Pump, Noryl, 115/230V

Home / Sprinkler Pump, Noryl, 115/230V

Sprinkler Pump, Noryl, 115/230V

SKU
Brand Flint & Walling
Categories Pumps
Description Sprinkler Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 3/4 hp, Nameplate Voltage 120/240V AC, Suction Lift (Maximum) 25 ft, Flow Rate @ 5 psi 60 gpm, Flow Rate @ 10 psi 53 gpm, Flow Rate @ 20 psi 43 gpm, Maximum Feet of Head 98 ft, Shut Off Pressure (Maximum) 100 psi, Compatible Intake Pipe Size 2 in, Compatible Discharge Pipe Size 1 1/2 in, Intake Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 30 psi 31 gpm, Flow Rate @ 40 psi 15 gpm, Priming Self-Priming
graingerSKU: 44YW77, mscSKU: , zoro_no: G0462729, mongo_id: 65bbe76f9a749db82273ac10

Web Price

$1,077.75 / each

Qty

Product Details

Agency Compliance CE

Amps 14.0/7.0

Bearing Type Ball

Case Pressure (Maximum) 100 psi

Compatible Discharge Pipe Size 1 1/2 in

Compatible Intake Pipe Size 2 in

Country of Origin (subject to change) United States

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Electrical Connection Type Plug-In

Features Double Ball Bearing Motors for Continuous Operation, Flint & Walling's Service Plus NEMA J, High Capacity, High Volume

Flow Rate @ 10 psi 53 gpm

Flow Rate @ 15 psi 48 gpm

Flow Rate @ 20 psi 43 gpm

Flow Rate @ 30 psi 31 gpm

Flow Rate @ 40 psi 15 gpm

Flow Rate @ 5 psi 60 gpm

For Use With Lawn Irrigation

For Use With Potable Systems Yes

Frame 56J

Frequency 60 Hz

GPM @ 10 PSI 53

GPM @ 15 PSI 48

GPM @ 20 PSI 43

GPM @ 25 PSI 37

GPM @ 30 PSI 31

GPM @ 35 PSI 25

GPM @ 40 PSI 15

Height 14 in

Horsepower 3/4 hp

Housing Material Cast iron

Housing Material - Pumps Cast Iron

HP - Pumps 3/4 hp

HP_ 3/4

Hz_ 60

Impeller Material Noryl

Impeller Type Closed

Inlet 2

Inlet (In.) 2

Inlet Size - Pumps 2 in NPT

Intake and Discharge Size 2 in , 1 1/2 in

Intake Type NPT

Length 21 1/2 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 100 psi

Max. Pressure 100 psi

Max. Pressure - Pumps 100 psi

Maximum Feet of Head 98 ft

Maximum Flow Rate 88 gpm

Maximum RPM 3,450 RPM

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J

Motor Type Single-Phase

Nameplate Voltage 120/240V AC

Outlet 1-1/2

Outlet Size - Pumps 1-1/2 in NPT

Overall Height 14 in

Overall Length 21.5 in

Overall Width 13.5 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Pressure Pump Type Sprinkler Pump

Priming Self-Priming

Pump Housing Material Cast Iron

Pumping Application Irrigation

Seal Material Carbon, Silicon Carbide

Series SPJ

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 100 psi

Stages 1

Standards CE

Suction Lift 25 ft

Suction Lift (Maximum) 25 ft

Thermal Overload Protection Yes

Thermal Protection Automatic Reset

Voltage 115/230

Voltage - Pumps 120/240V AC

Wetted Material Cast Iron, Noryl

Wetted Materials Cast Iron, Noryl

Width 13 1/2 in
