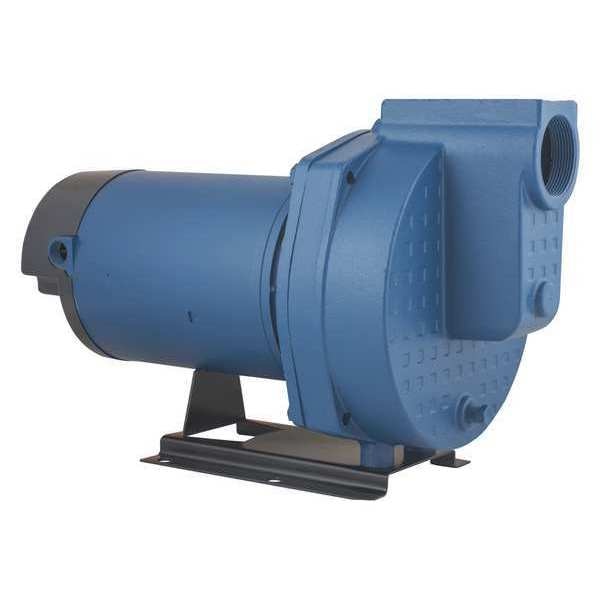

Sprinkler Pump, Low Lead Brass, 1/2 HP

Home / Sprinkler Pump, Low Lead Brass, 1/2 HP

Sprinkler Pump, Low Lead Brass, 1/2 HP

SKU
Brand Flint & Walling
Categories Pumps, Raw Materials
Description Sprinkler Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 1/2 hp, Nameplate Voltage 208-240/480V AC, Suction Lift (Maximum) 25 ft, Flow Rate @ 5 psi 77 gpm, Flow Rate @ 10 psi 75 gpm, Flow Rate @ 20 psi 71 gpm, Maximum Feet of Head 113 ft, Shut Off Pressure (Maximum) 100 psi, Compatible Intake Pipe Size 2 in, Compatible Discharge Pipe Size 1 1/2 in, Intake Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 30 psi 63 gpm, Flow Rate @ 40 psi 47 gpm, Priming Self-Priming
graingerSKU: 44YW79, mscSKU: , zoro_no: G0462701, mongo_id: 65bbe76f9a749db82273ac0e

Web Price

$2,238.75 / each

Qty

Product Details

Agency Compliance CE

Amps 5.7/2.9

Bearing Type Ball

Case Pressure (Maximum) 100 psi

Compatible Discharge Pipe Size 1 1/2 in

Compatible Intake Pipe Size 2 in

Country of Origin (subject to change) United States

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Electrical Connection Type Plug-In

Features Double Ball Bearing Motors for Continuous Operation, Flint & Walling's Service Plus NEMA J, High Capacity, High Volume

Flow Rate @ 10 psi 75 gpm

Flow Rate @ 15 psi 73 gpm

Flow Rate @ 20 psi 71 gpm

Flow Rate @ 30 psi 63 gpm

Flow Rate @ 40 psi 47 gpm

Flow Rate @ 5 psi 77 gpm

Flow Rate @ 50 psi 30 gpm

For Use With Lawn Irrigation

For Use With Potable Systems Yes

Frame 56J

Frequency 60 Hz

GPM @ 10 PSI 75

GPM @ 15 PSI 73

GPM @ 20 PSI 71

GPM @ 25 PSI 68

GPM @ 30 PSI 63

GPM @ 35 PSI 55

GPM @ 40 PSI 47

GPM @ 45 PSI 35

GPM @ 50 PSI 30

Horsepower 1/2 hp

Housing Material Cast iron

Housing Material - Pumps Cast Iron

HP - Pumps 1/2 hp

HP_ 1/2

Hz_ 60

Impeller Material Noryl

Impeller Type Closed

Inlet 2

Inlet (In.) 2

Inlet Size - Pumps 2 in NPT

Intake and Discharge Size 2 in , 1 1/2 in

Intake Type NPT

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 100 psi

Max. Head 83 ft

Maximum Feet of Head 113 ft

Maximum Flow Rate 88 gpm

Maximum RPM 3,450 RPM

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J

Motor Type 3-Phase

Nameplate Voltage 208-240/480V AC

Outlet 1/2

Outlet Size - Pumps 1-1/2 in NPT

Package Quantity 1

Phase Three

Phase - Pumps 3

Pressure Pump Type Sprinkler Pump

Priming Self-Priming

Pump Housing Material Cast Iron

Pumping Application Irrigation

Seal Material Carbon, Silicon Carbide

Series SPJ

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 100 psi

Stages 1

Standards CE

Suction Lift 25 ft

Suction Lift (Maximum) 25 ft

Thermal Overload Protection Yes

Thermal Protection Automatic Reset

Voltage 208/230-460

Voltage - Pumps 208 to 240/480V AC

Wetted Material Cast Iron, Brass

Wetted Materials Cast Iron, Low Lead Brass
