Booster Pump System, 1 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 3 St

Home / Booster Pump System, 1 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 3 Stage, 120 psi Max Pressure

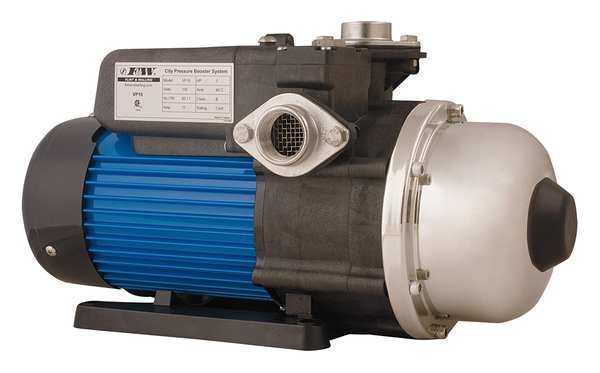

Booster Pump System, 1 hp, 115V AC, 1 Phase, 1 in NPT Inlet Size, 3 Stage, 120 psi Max Pressure

SKU
Brand Flint & Walling
Categories Pumps
Description Booster Pump, Phase Single, Pump Housing Material Stainless Steel, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 1 hp, Nameplate Voltage 115V AC, Flow Rate @ 10 psi 27 gpm, Flow Rate @ 20 psi 24 gpm, Flow Rate @ 30 psi 21 gpm, Flow Rate @ 40 psi 15 gpm, Flow Rate @ 50 psi 10 gpm, Flow Rate @ 60 psi 4 gpm, Flow Rate @ 70 psi 3 gpm, Flow Rate @ 80 psi 3 gpm, Flow Rate @ 90 psi 3 gpm, Shut Off Pressure (Maximum) 112 psi, Compatible Intake Pipe Size 1 in
graingerSKU: 32JA74, mscSKU: , zoro_no: G8769625, mongo_id: 65bbe76f9a749db82273ac0c

Web Price

$2,193.75 / each

Qty

Product Details

Agency Compliance CSA, cUS

Amps 10 A

Bearing Type Ball

Best Efficiency GPM @ PSI 3 @ 86

Best Efficiency Pressure 86 psi

Booster Pump Type Booster Pump System

Case Pressure (Maximum) 120 psi

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 in

Compatible with Media Type Water

Cord Length 5 ft

Country of Origin (subject to change) China

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Electrical Connection Type Plug-In

Flow Rate @ 10 psi 27 gpm

Flow Rate @ 15 psi 26 gpm

Flow Rate @ 20 psi 24 gpm

Flow Rate @ 30 psi 21 gpm

Flow Rate @ 40 psi 15 gpm

Flow Rate @ 50 psi 10 gpm

Flow Rate @ 60 psi 4 gpm

Flow Rate @ 70 psi 3 gpm

Flow Rate @ 80 psi 3 gpm

Flow Rate @ 90 psi 3 gpm

For Use With Home Water Pressure Boost

For Use With Potable Systems Yes

For Use With Systems Potable

Frequency 60 Hz

Height 8 7/8 in

Horsepower 1 hp

Housing Material Stainless steel

Housing Material - Pumps Stainless Steel

HP - Pumps 1 hp

HP_ 1

Hz_ 60

Impeller Design Closed

Impeller Material Stainless Steel

Impeller Type Closed

Includes Instructions

Inlet 1

Inlet (In.) 1

Inlet Size - Pumps 1 in NPT

Intake and Discharge Size 1 in , 1 in

Intake Size 1 in

Intake Type NPT

Length 16 27/64 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 120 psi

Max. Pressure 120 psi

Max. Pressure - Pumps 120 psi

Max. PSI Boost @ 2-10 GPM 55

Max. PSI Boost @ 20 GPM 8

Maximum Flow Rate 28 gpm

Maximum RPM 3,450 RPM

Minimum Flow Rate 1 gpm

Motor Ambient Temp. Rating 40 Degrees C/104 Degrees F

Motor Ambient Temperature (Maximum) 104 Degrees F

Motor Enclosure Totally Enclosed Fan Cooled (TEFC)

Motor Enclosure - Pumps Totally Enclosed Fan-Cooled

Motor Enclosure Type TEFC

Motor RPM 3450

Motor Type PSC

Mounting Orientation Horizontal

Nameplate Voltage 115V AC

Nominal Voltage 115V AC

Number of Stages 3

Number of Stages - Pumps 3

Outlet 1

Outlet Size - Pumps 1 in NPT

Overall Height 8.98 in

Overall Length 16.11 in

Overall Width 7.28 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Pressure Boost (Maximum) 55 psi

Priming Manual

Pump Housing Material Stainless Steel

Seal Material Ceramic

Shut Off Pressure (Maximum) 112 psi

Stages 3

Standards ANSI 372 255405, CSAus Certified, NSF Certified

Tank (Gal.) 0.1

Thermal Overload Protection Yes

Type Pressure

Voltage 115

Voltage - Pumps 115V AC

Wetted Material Stainless Steel, Thermoplastic

Wetted Materials Stainless Steel, Thermoplastic

Width 7 27/64 in
