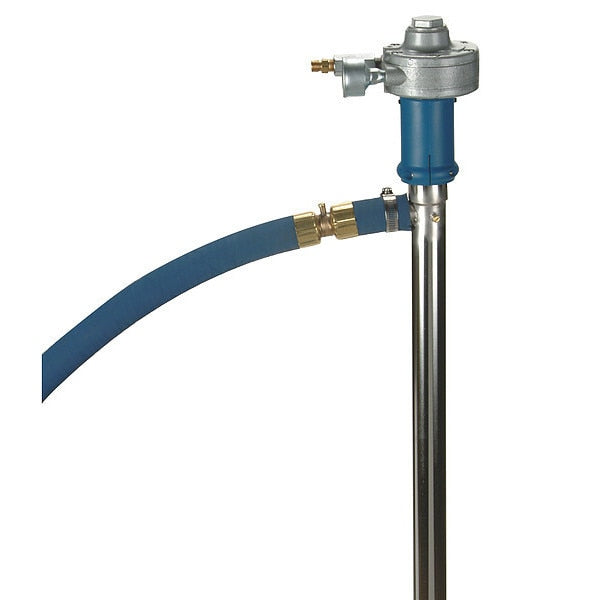

Drum Pump, 3/4 HP, Suction Tube 40 L, 7 GPM

Home / Drum Pump, 3/4 HP, Suction Tube 40 L, 7 GPM

Drum Pump, 3/4 HP, Suction Tube 40 L, 7 GPM

SKU
Brand Finish Thompson
Categories Pumps
Description Air Operated Drum Pump, Max. Air Pressure 100 psi, Suction Tube Material 316 Stainless Steel, Self-Priming Yes, Overall Length 48 1/8 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Hose Length 48 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Motor Enclosure Air, Noise Level 78 db, Max. Viscosity 2,000 cps, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No
graingerSKU: 3DYK4, mscSKU: , zoro_no: G0256252, mongo_id: 65bbe96f22d7a989a9954c51

Web Price

$1,967.49 / each

Qty

Product Details

Adapter Material Polypropylene

Agency Compliance NO

Air Inlet Size 1/4 in MNPT

Air Outlet Size 1/4 in

Compatible Chemicals Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Paint Thinner, Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene

Country of Origin (subject to change) United States

Diesel Exhaust Fluid Compatible No

Discharge Connection Type Hose Barb

Discharge Tube Outlet ID 1 in

Discharge Tube Outlet ID Size 1

Discharge Tube Outlet OD 1 1/2 in

Discharge Tube Outlet OD Size 1-15/32

Discharge Tubing Material Cross-linked Polyethylene

Duty Cycle Continuous

Explosion Proof Yes

Food Grade No

For Container Size 55 gal

For Container Type Drum

For Media Type Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Automatic Transmission Fluid, Biodiesel, Calcium Chloride, Chromic Acid, Citric Acid, Cyclohexane, Diesel Fuel, E85, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrazine, Isopropanol, Kerosene, Ketones, Lacquer Thinners, Methanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Toluene, Trichlorethylene, Water, Xylene

For Use With Flammable Liquids

Gear Lube NT

GPM 7

Grease NT

Height 40

Height Above Container 8 1/16 in

Hose Inside Dia. 1 in

Hose Length 48 in

Hose Outside Dia. 1 3/8 in

Hose Tube Material Polyethylene

Housing Material Stainless steel

Housing Material - Pumps Stainless Steel

Includes Motor and Static Kit

Includes Bung Adapter No

Includes Discharge Hose Yes

Includes Nozzle No

Includes Spout No

Includes Suction Tube Yes

Inlet Size 1.5

Max. Air Inlet (PSI) 4.32

Max. Air Pressure 100 psi

Max. Flow Rate 16 gpm

Max. Fluid Temp. 150 Degrees F

Max. GPM for Oil 5

Max. GPM for Water 7

Max. Head 10 ft.

Max. Head - Pumps 10 ft

Max. Head Pressure 4.3 psi

Max. Liquid Temp. 150 Degrees F

Max. Oil Flow 5 gpm

Max. Viscosity 2,000 cps

Metered No

Min. Air Pressure 80 psi

Min. Fluid Temp. -20 Degrees F

Motor Enclosure Air

Motor HP 1/2 hp

Motor RPM 9,000 RPM

Motor Type Air

Noise Level 78 db

Not Recommended Chemicals Acetic Acid (Glacial), DEF, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)

Outlet Size 1 Barb

Overall Length 48 1/8 in

Package Quantity 1

Power Source Air

Pump Connection ID 1 1/2 in

Pump Connection OD 1 1/2 in

Runs Dry No

Seal Material PTFE

Self-Priming Yes

Series TT

Suction Tube ID 1 1/2 in

Suction Tube Length 40 in
