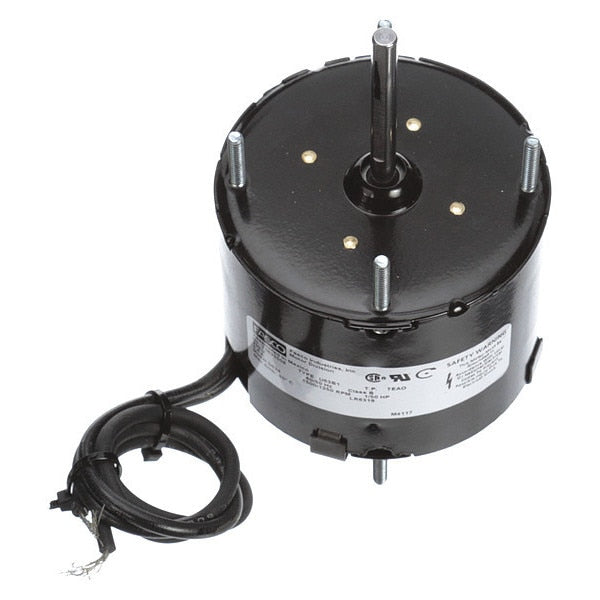

HVAC 3.3 In Motor, 1/50 HP, 230V, CW

Home / HVAC 3.3 In Motor, 1/50 HP, 230V, CW

HVAC 3.3 In Motor, 1/50 HP, 230V, CW

SKU
Brand Fasco
Categories HVAC & Refrigeration
Description Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/50 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 230V AC, Full Load Amps 0.4 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
graingerSKU: 38N570, mscSKU: , zoro_no: G7525883, mongo_id: 65bbe83a22d7a989a98e2651

Web Price

$119.06 / each

Qty

Product Details

Application HVAC/R

Body Dia. 3 5/16 in

Bolt Circle Dia. 2 7/8 in

Capacitor Required No

Country of Origin (subject to change) Mexico

Duty Continuous

Frame 3.3

Full Load Amps 0.4 A

HP_ 1/50

Hz_ 60 Hz

Ins. Class B

Lead Length 12 in

Length Less Shaft 3 1/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Sleeve

Motor Design Shaded Pole

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CWSE

Motor Sub Application Direct Drive Fan/Blower

Motor Thermal Protection Auto

Mounting Stud

Mounting Holes (8) #8-32

Mounting Pattern 2-7/8 x 2-7/8

Mounting Stud Location 4/Both Ends

Mounting Stud Pattern 2 7/8 in x 2 7/8 in

Nameplate RPM 1,550

No. of Speeds 1

Number of Shafts 1

Number of Speeds 1

Overall Length 5 1/8 in

Package Quantity 1

Phase Single

RPM @ 50Hz 1,250 RPM

RPM Range 1,501-1,600

Shaft Dia. 1/4 in

Shaft Length 2 1/4 in

Standards CSA Certified, UL Recognized

Stud Size #8-32

Stud/Base Mtg. Pattern 2-7/8 in x 2-7/8 in

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 3 lb
