Home / Washdown Motor, 3 Ph, TENV, 3/4 HP, 3450 rpm

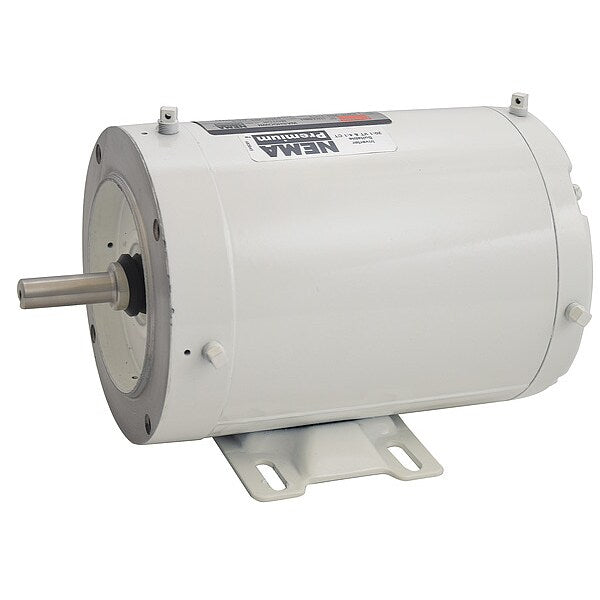

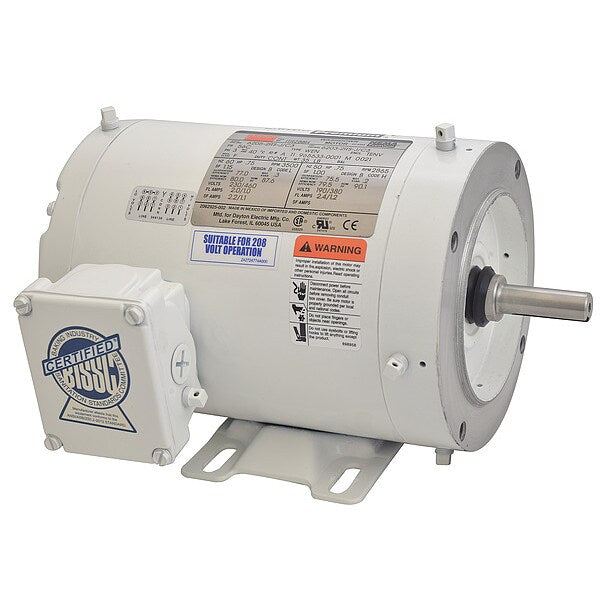

Washdown Motor, 3 Ph, TENV, 3/4 HP, 3450 rpm
Washdown Motor, 3 Ph, TENV, 3/4 HP, 3450 rpm

Washdown Motor, 3 Ph, TENV, 3/4 HP, 3450 rpm

  • Dayton
  • Washdown Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 3,500, Voltage 230/460V AC, Full Load Amps 2.0/1.0 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Epoxy Coated Rolled Steel

    graingerSKU: 1TRZ8, mscSKU: , zoro_no: G2338454, mongo_id: 65bbe84d9a749db822785c3b

Web Price
$1,263.74 / each
Qty

Product Details

CC030A
Cast Oversized Gasketed
Mexico
(4) Each End, (2) In Conduit Box
Continuous
Continuous
56C
Epoxy Coated
2.0/1.0 A
3/4
60 Hz
F
Yes
9 1/4 in
40 Degrees C
Washdown
Ball
3-Phase
Totally Enclosed Nonventilated
Epoxy Coated Rolled Steel
Horizontal
Face/Base
1.15
Keyed
CW/CCW
None
3,500
B
80 %
11 3/4 in
1
Three
3,001-3,600
5/8 in
2 in
303 Stainless Steel
CSA Certified (LR63596), UL Recognized (E47479), USDA Approved
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
