Upblast Ventilator, Wheel 11 In, 115V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Schools, Drive Type Direct Drive, For Air Type Clean Air, Base Diameter Not Applicable, Base Width 19 in, Base Length 19 in, Base Shape Square, Maximum Static Pressure 5/8 in wc, Exhaust Airflow @ 0.000 in SP 811 cfm, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 1/15 hp, Assembly Assembled, Number of Speeds 3, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
graingerSKU: 5DVP4, mscSKU: , zoro_no: G3038393, mongo_id: 65bbe89622d7a989a9902ab0

Web Price

$739.99 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. 6 3/8H Roof Curb Stock No. 4c453

Adj. UL 762 Kitchen Roof Curb Stock No. 4HX61

Airflow @ 0.000 in SP 811 cfm

Application Industrial and Commercial Buildings, Schools

Assembled/Unassembled Assembled

Assembly Assembled

Base Diameter Not Applicable

Base Dimension 19 in Square

Base Height 1.8 in

Base Length 19 in

Base Shape Square

Base Size - Roof Ventilators 19 in x 19 in

Base Square Size - Roof Ventilators 19 x 19

Base Width 19 in

Brake Horsepower 9/100 hp

CFM @ 0.000-In. SP 549/680/811

CFM @ 0.125-In. SP 451/600/744

CFM @ 0.250-In. SP 306/517/677

CFM @ 0.375-In. SP -/391/604

CFM @ 0.500-In. SP -/-/501

CFM @ 0.625-In. SP -/-/347

CFM @ 0.750-In. SP -/-/-

CFM @ 0.875-In. SP -/-/-

CFM @ 1.000-In. SP -/-/-

CFM @ 1.250-In. SP -/-/-

CFM @ 1.500-In. SP -/-/-

Compatible Curb Manufacturer Part Number 3AZK1 to 3AZK9, 3AZL1 to 3AZL3

Compatible Speed Control 48C172

Country of Origin (subject to change) United States

Current 1.48/1.82/2.44 A

Cutout Length 14.5 in

Cutout Size 14.5 in L x 14.5 in W

Damper Size 10 x 10 in

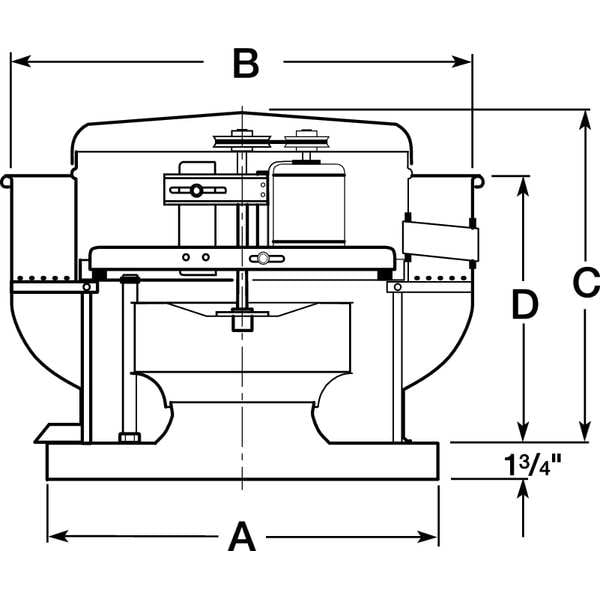

Dimension A 19 in

Dimension B 21 in

Dimension C 13 3/8 in

Dimension D 11 1/2 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Direct Drive

Drive Type - Roof Ventilators Direct Drive

Duty Rating - Roof Ventilators Standard

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 811 cfm

Exhaust Airflow @ 0.000 in SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.125 in SP 744 cfm

Exhaust Airflow @ 0.250 in SP 677 cfm

Exhaust Airflow @ 0.375 in SP 604 cfm

Exhaust Airflow @ 0.500 in SP 501 cfm

Exhaust Airflow @ 0.500 in SP - Range 0 to 1,999 cfm

Features Aluminum Backward Inclined, Nonoverloading Centrifugal Wheel Design

Fixed UL 762 Kitchen Roof Curb Stock No. 4HX54

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 21 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 21 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 0.03//0.05/0.09

Max. Inlet Temp. 130 Degrees F

Max. Operating Amps 1.48/1.82/2.44

Maximum Ambient Temperature 130 Degrees F

Maximum Fan Speed 1,550 RPM

Maximum Inlet Air Temperature 130 Degrees F

Maximum Static Pressure 5/8 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/15 hp

Motor HP 1/15

Motor HP - Roof Ventilators 1/15 hp

Motor Location Out of Airstream

Motor Voltage 115

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Mounting Orientation Vertical

Nameplate Voltage 115V AC

Nominal Voltage 115V AC

Number of Speeds 3

Overall Depth 15 1/8 in

Overall Dia. 21 in

Overall Diameter 21 in

Overall Height 15 1/8 in

Overall Width 21 in

Package Quantity 1

Phase 1

Propeller Shaft Diameter 1/2 in

Recommended 12 In. Fixed Curb Item No. 2RB75

Recommended 8 In. Fixed Curb Item No. 4HX38

Recommended Damper Size (In.) 9 1/2 x 9 1/2

Recommended Damper Stock No. 3TZ50

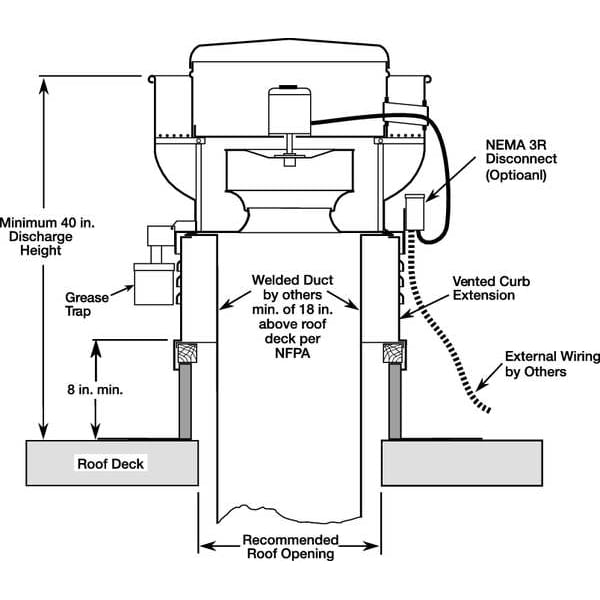

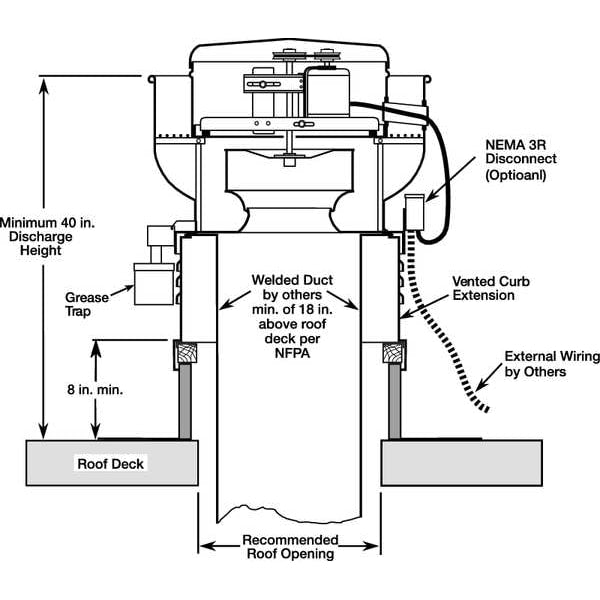

Requires Roof Curb for New Installation

RPM 1050/1300/1550

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 3.9/5.4/7.6

Sones @ 0.250-In. SP @ 5 Ft. 4.2/5.4/7.5

Sones @ 0.500-In. SP @ 5 Ft. -/-/7.4

Sound Level 3.9 sones @ 0.125 in SP and 5 ft, 4.2 sones @ 0.250 in SP and 5 ft, 5.4 sones @ 0.125 in SP and 5 ft, 5.4 sones @ 0.250 in SP and 5 ft, 5.6 sones @ 0.375 in SP and 5 ft, 7.4 sones @ 0.375 in SP and 5 ft, 7.4 sones @ 0.500 in SP and 5 ft, 7.5 sones @ 0.250 in SP and 5 ft, 7.6 sones @ 0.125 in SP and 5 ft, 7.8 sones @ 0.625 in SP and 5 ft, Fan RPM 1050 : 4.1 sones @ 0.000 in SP and 5 ft, Fan RPM 1300 : 5.5 sones @ 0.000 in SP and 5 ft, Fan RPM 1550 : 7.8 sones @ 0.000 in SP and 5 ft

Speed Control 48C172

Speed Controllable Yes

Standards AMCA Sound and Air, CSA Certified Motor, UL/cUL 705

Voltage - Roof Ventilators 115V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 11 in

Wheel Diameter 11 in

Wheel Material Aluminum

Wheel Type Backward Inclined
