Upblast Vent, 30-1/2 In, 208-230/460V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 42 in, Base Length 42 in, Base Shape Square, Maximum Static Pressure 2 in wc, Exhaust Airflow @ 0.000 in SP 14,727 cfm, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 5 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 7A718, mscSKU: , zoro_no: G2251742, mongo_id: 65bbe8bc22d7a989a9910fb5

Web Price

$4,392.49 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV85

Adj. UL 762 Kitchen Roof Curb Stock No. 4HX63

Airflow @ 0.000 in SP 14,727 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 42 in Square

Base Height 1.8 in

Base Length 42 in

Base Shape Square

Base Size - Roof Ventilators 42 in x 42 in

Base Square Size - Roof Ventilators 42 x 42

Base Width 42 in

Bearing Type Regreasable Pillow Block

Brake Horsepower 5 21/100 hp

CFM @ 0.000-In. SP 14,727

CFM @ 0.125-In. SP 14,497

CFM @ 0.250-In. SP 14,266

CFM @ 0.375-In. SP 14,036

CFM @ 0.500-In. SP 13,788

CFM @ 0.625-In. SP 13,505

CFM @ 0.750-In. SP 13,223

CFM @ 0.875-In. SP 12,940

CFM @ 1.000-In. SP 12,614

CFM @ 1.250-In. SP 11,963

CFM @ 1.500-In. SP 11,191

CFM @ 1.75-In. SP 10,357

CFM @ 2.000-In. SP 9178

Country of Origin (subject to change) Multiple

Current 14.0 to 12.7/6.3 A

Damper Size 35 x 35 in

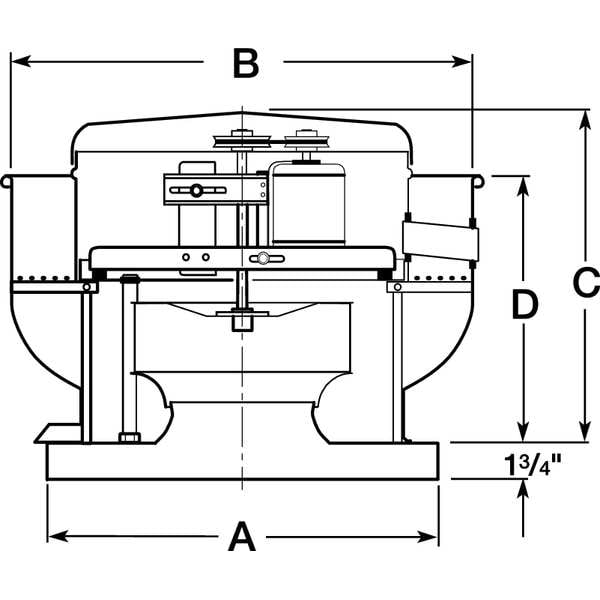

Dimension A 42 in

Dimension B 50 in

Dimension C 40 in

Dimension D 29 1/4 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 14,727 cfm

Exhaust Airflow @ 0.000 in SP - Range More than 10,000 cfm

Exhaust Airflow @ 0.000 in. SP - Range 8,000 to 15,000 cfm

Exhaust Airflow @ 0.125 in SP 14,497 cfm

Exhaust Airflow @ 0.250 in SP 14,266 cfm

Exhaust Airflow @ 0.375 in SP 14,036 cfm

Exhaust Airflow @ 0.500 in SP 13,788 cfm

Exhaust Airflow @ 0.500 in SP - Range More than 10,000 cfm

Features Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Leakproof, Nonoverloading Centrifugal Wheel Design

Fixed UL 762 Kitchen Roof Curb Stock No. 4HX59

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 50 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 50 in

Hz_ 60

Includes Drive Package, NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 5.21

Max. Inlet Temp. 300 Degrees F

Maximum Fan Speed 905 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 2 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 5 hp

Motor HP 5

Motor HP - Roof Ventilators 5 hp

Motor Location Out of Airstream

Motor Speed 905 RPM

Motor Voltage 208/230/460

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Number of Speeds 1

Overall Dia. 50 in

Overall Diameter 50 in

Overall Height 41 3/4 in

Package Quantity 1

Phase 3

Propeller Shaft Diameter 1 in

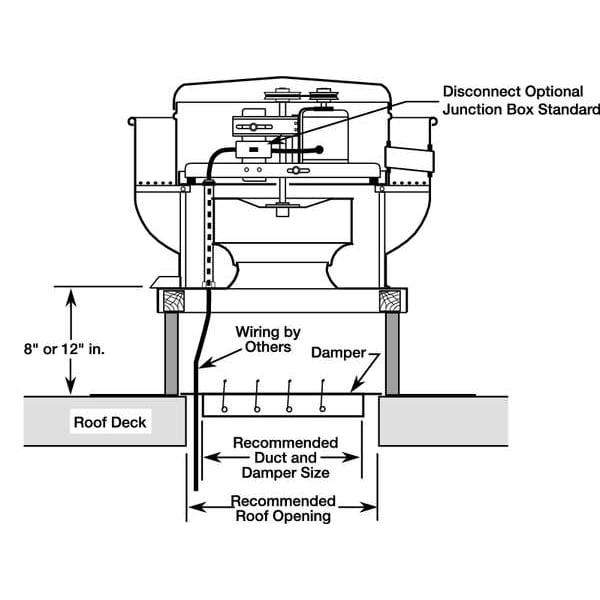

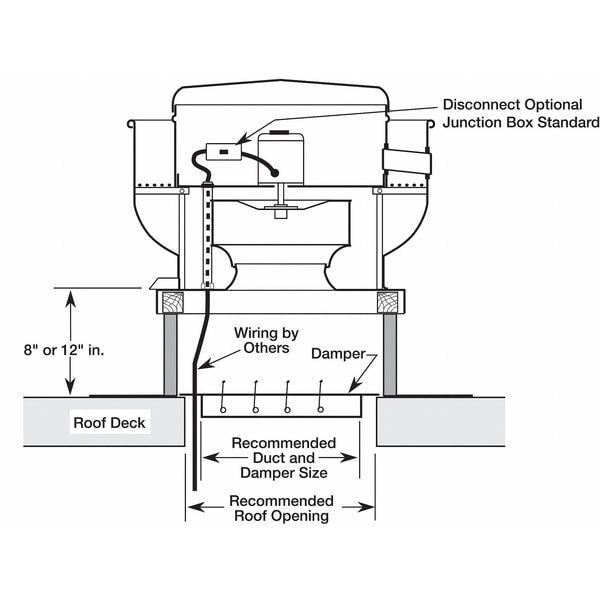

Recommended 12 In. Fixed Curb Item No. 2RB81

Recommended 8 In. Fixed Curb Item No. 4HX43

Recommended Damper Size (In.) 35 x 35

Recommended Damper Stock No. 4HX69

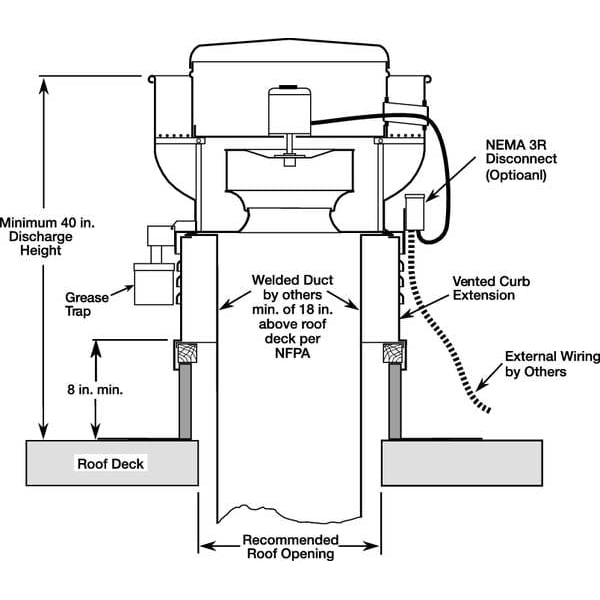

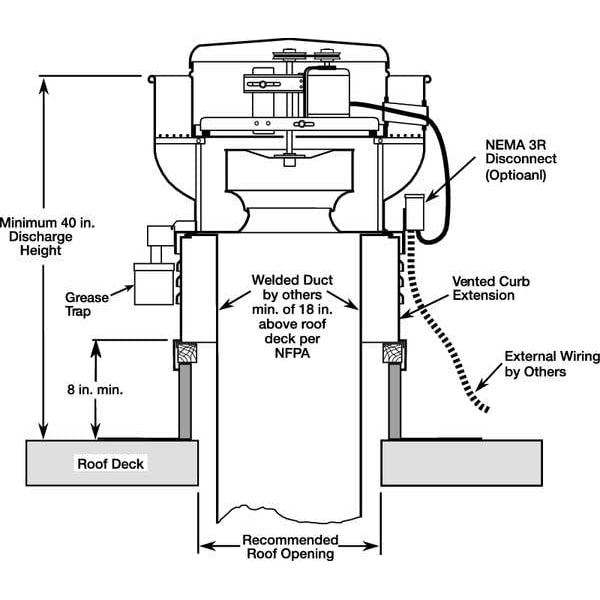

Requires Roof Curb for New Installation

Resistance Properties Spark Resistant

RPM 905

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 1 in

Sones @ 0.125-In. SP @ 5 Ft. 32

Sones @ 0.250-In. SP @ 5 Ft. 32

Sones @ 0.500-In. SP @ 5 Ft. 29

Sound Level 22.0 sones @ 2.000 in SP and 5 ft, 24.0 sones @ 1.750 in SP and 5 ft, 26.0 sones @ 1.500 in SP and 5 ft, 27.0 sones @ 1.250 in SP and 5 ft, 28.0 sones @ 0.750 in SP and 5 ft, 28.0 sones @ 0.875 in SP and 5 ft, 28.0 sones @ 1.000 in SP and 5 ft, 29.0 sones @ 0.500 in SP and 5 ft, 29.0 sones @ 0.625 in SP and 5 ft, 30.0 sones @ 0.375 in SP and 5 ft, 32.0 sones @ 0.000 in SP and 5 ft, 32.0 sones @ 0.125 in SP and 5 ft, 32.0 sones @ 0.250 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 208V AC/230V AC/460V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 30 1/2 in

Wheel Diameter 30 1/2 in

Wheel Material Aluminum

Wheel Type Backward Inclined
