Upblast Vent, 30-1/2 In, 115/208-230V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 42 in, Base Length 42 in, Base Shape Square, Maximum Static Pressure 5/8 in wc, Exhaust Airflow @ 0.000 in SP 8,625 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 7A644, mscSKU: , zoro_no: G1290125, mongo_id: 65bbe7c49a749db822757141

Web Price

$3,803.74 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV85

Adj. UL 762 Kitchen Roof Curb Stock No. 4HX63

Airflow @ 0.000 in SP 8,625 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 42 in Square

Base Height 1.8 in

Base Length 42 in

Base Shape Square

Base Size - Roof Ventilators 42 in x 42 in

Base Square Size - Roof Ventilators 42 x 42

Base Width 42 in

Bearing Type Regreasable Pillow Block

Brake Horsepower 1 1/20 hp

CFM @ 0.000-In. SP 8625

CFM @ 0.125-In. SP 8231

CFM @ 0.250-In. SP 7772

CFM @ 0.375-In. SP 7245

CFM @ 0.500-In. SP 6636

CFM @ 0.625-In. SP 5879

Country of Origin (subject to change) Multiple

Current 13.6/6.9 to 6.9 A

Damper Size 35 x 35 in

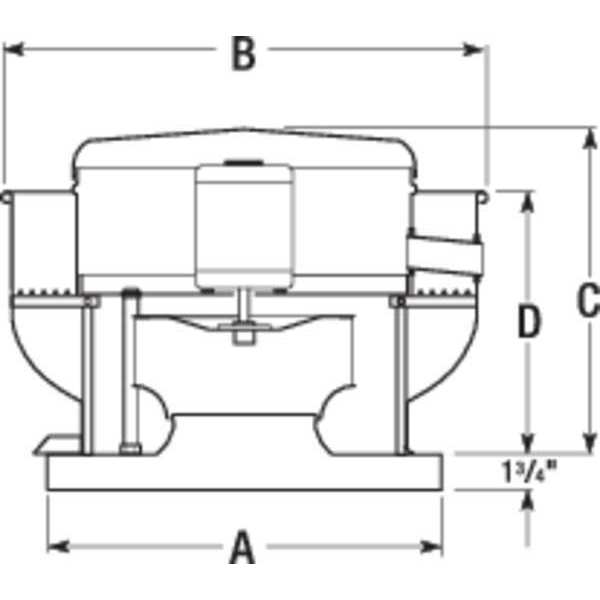

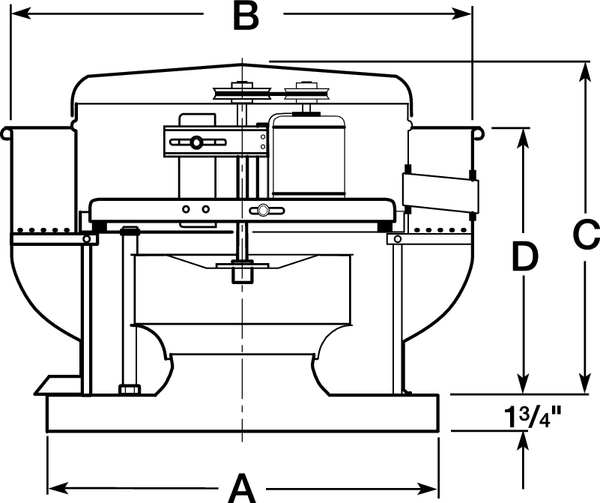

Dimension A 42 in

Dimension B 50 in

Dimension C 40 in

Dimension D 29 1/4 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 8,625 cfm

Exhaust Airflow @ 0.000 in SP - Range 5,000 to 10,000 cfm

Exhaust Airflow @ 0.000 in. SP - Range 8,000 to 15,000 cfm

Exhaust Airflow @ 0.125 in SP 8,231 cfm

Exhaust Airflow @ 0.250 in SP 7,772 cfm

Exhaust Airflow @ 0.375 in SP 7,245 cfm

Exhaust Airflow @ 0.500 in SP 6,636 cfm

Exhaust Airflow @ 0.500 in SP - Range 5,000 to 10,000 cfm

Features Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Leakproof, Nonoverloading Centrifugal Wheel Design

Fixed UL 762 Kitchen Roof Curb Stock No. 4HX59

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 50 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 50 in

Hz_ 60

Includes Drive Package, NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 1.05

Max. Inlet Temp. 300 Degrees F

Maximum Fan Speed 530 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 5/8 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1 hp

Motor HP 1

Motor HP - Roof Ventilators 1 hp

Motor Location Out of Airstream

Motor Speed 530 RPM

Motor Voltage 115/208/230

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Nameplate Voltage 115/208-230V AC

Nominal Voltage 115/208-230V AC

Number of Speeds 1

Overall Dia. 50 in

Overall Diameter 50 in

Overall Height 41 3/4 in

Package Quantity 1

Phase 1

Propeller Shaft Diameter 1 in

Recommended 12 In. Fixed Curb Item No. 2RB81

Recommended 8 In. Fixed Curb Item No. 4HX43

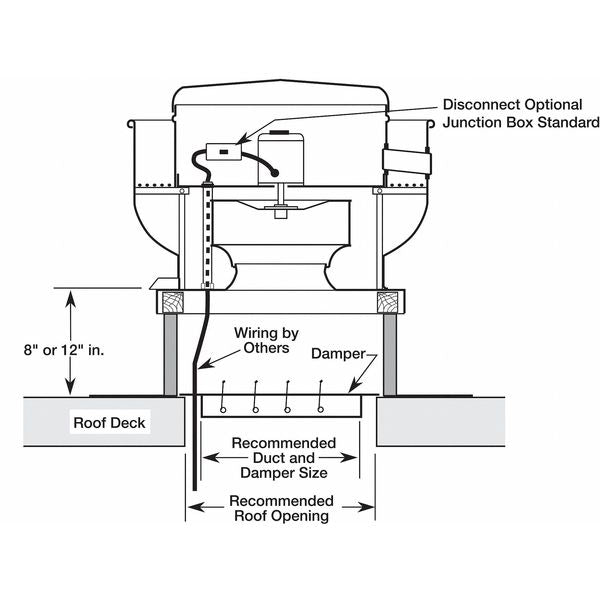

Recommended Damper Size (In.) 35 x 35

Recommended Damper Stock No. 4HX69

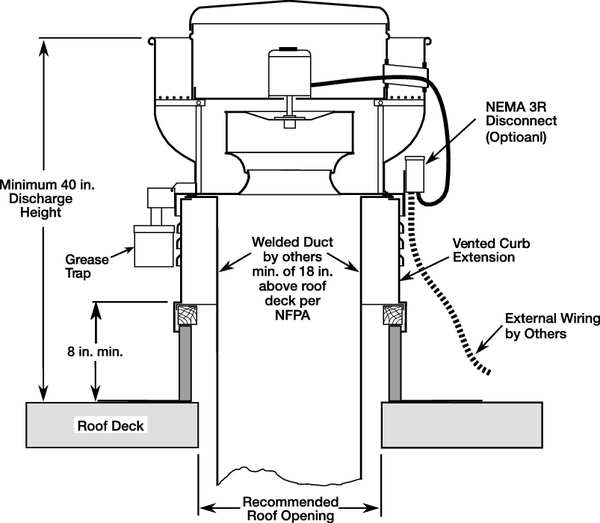

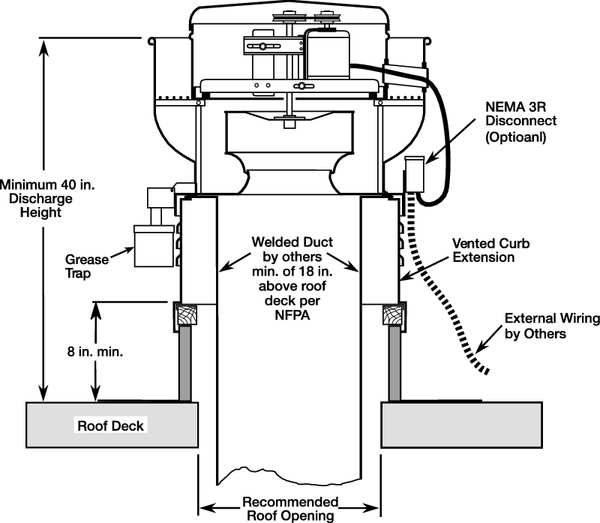

Requires Roof Curb for New Installation

Resistance Properties Spark Resistant

RPM 530

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 1 in

Sones @ 0.125-In. SP @ 5 Ft. 12.7

Sones @ 0.250-In. SP @ 5 Ft. 12.2

Sones @ 0.500-In. SP @ 5 Ft. 11.2

Sound Level 10.2 sones @ 0.625 in SP and 5 ft, 11.2 sones @ 0.500 in SP and 5 ft, 11.7 sones @ 0.375 in SP and 5 ft, 12.2 sones @ 0.250 in SP and 5 ft, 12.7 sones @ 0.125 in SP and 5 ft, 13.3 sones @ 0.000 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 115V AC/208V AC/230V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 30 1/2 in

Wheel Diameter 30 1/2 in

Wheel Material Aluminum

Wheel Type Backward Inclined
