Upblast Vent, 16-1/2 In, 115/208-230V
Upblast Vent, 16-1/2 In, 115/208-230V
Upblast Vent, 16-1/2 In, 115/208-230V
Upblast Vent, 16-1/2 In, 115/208-230V

Upblast Vent, 16-1/2 In, 115/208-230V

  • Dayton
  • Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter 22 1/8 in, Base Width Not Applicable, Base Length Not Applicable, Base Shape Round, Maximum Static Pressure 3/4 in wc, Exhaust Airflow @ 0.000 in SP 2,774 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/3 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum

    graingerSKU: 7AT14, mscSKU: , zoro_no: G0705302, mongo_id: 65bbe6613aaddbd5a90276c9

Web Price
$1,296.24 / each
Qty

Product Details

2,774 cfm
Industrial and Commercial Buildings, Restaurants, Schools
Unassembled
Unassembled
22 1/8 in
22 1/8 in Round
Not Applicable
Round
22 1/8 in dia
22-1/8 dia.
Not Applicable
Sealed Pillow Block
7/20 hp
2774
2637
2477
2300
2109
1893
1584
Multiple
6.6/3.4 to 3.1 A

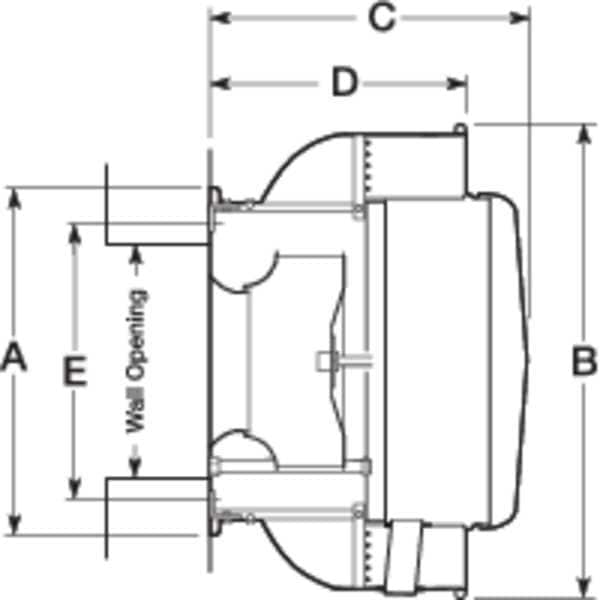

15 x 15 in
22 1/8 in
28 7/8 in
26 3/8 in
19 3/8 in
19 3/8 in
Yes
Yes
Belt Drive
Belt Drive
Standard
Power Cord
2,774 cfm
2,000 to 4,999 cfm
2,000 to 4,999 cfm
2,637 cfm
2,477 cfm
2,300 cfm
2,109 cfm
2,000 to 4,999 cfm
Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design, Optional NEMA 1 and 4 Disconnects Available, UL/CuL 705 Listed for Power Ventilators, UL/CuL 762 Listed for Restaurant Exhaust Appliances
Kitchen Air
No
60 Hz
Standard Grease
No
28.9 in
Aluminum
Spun
28.9 in
60
Drive Package, Mounting Plate, NEMA 1 Junction Box
Yes
Yes
Upblast Ventilator
0.35
300 Degrees F
6.6/3.0-3.3
965 RPM
300 Degrees F
3/4 in wc
Standard Motor
Open Dripproof
Open Dripproof (ODP)
1/3 hp
1/3
1/3 hp
Out of Airstream
965 RPM
115/208/230
wall

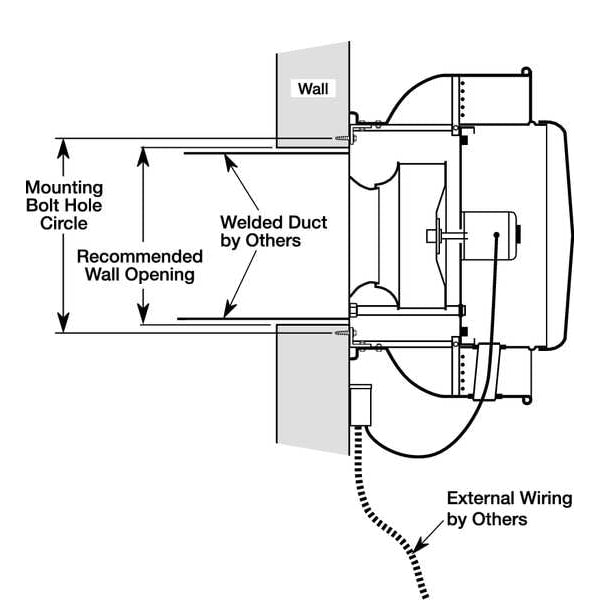

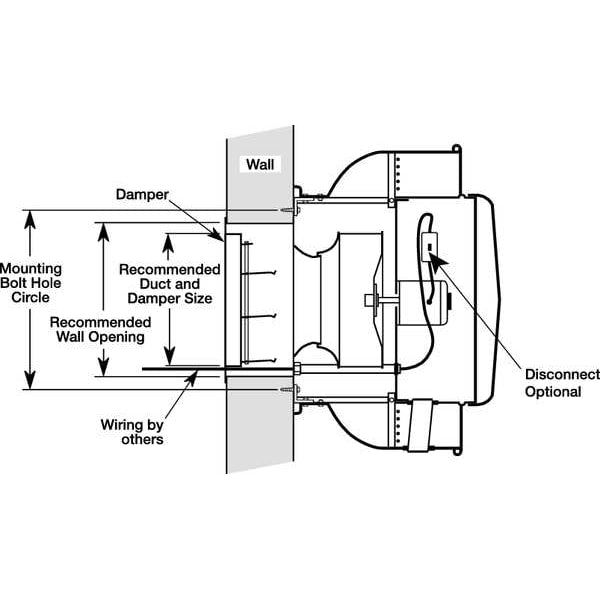

Roof, Wall
115/208-230V AC
115/208-230V AC
1
28 7/8 in
28 7/8 in
26 3/8 in
1
1
3/4 in
15 x 15
4HX77
Spark Resistant
965
Fully Rolled Windband
3/4 in
12.0
11.5
10.8
10.8 sones @ 0.500 in SP and 5 ft, 11.5 sones @ 0.250 in SP and 5 ft, 12.0 sones @ 0.125 in SP and 5 ft
A
No
AMCA Sound and Air, UL/cUL 762
115V AC/208V AC/230V AC
Aluminum / Aluminum
16 1/2 in
16 1/2 in
Aluminum
Backward Inclined
