Upblast Vent, 13-1/4 In, 115/208-230V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter 19 3/4 in, Base Width Not Applicable, Base Length Not Applicable, Base Shape Round, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 1,968 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/3 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 7AT02, mscSKU: , zoro_no: G2640391, mongo_id: 65bbe72f3aaddbd5a907d610

Web Price

$1,502.49 / each

Qty

Product Details

Airflow @ 0.000 in SP 1,968 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter 19 3/4 in

Base Dimension 19 3/4 in Round

Base Length Not Applicable

Base Shape Round

Base Size - Roof Ventilators 19 3/4 in dia

Base Square Size - Roof Ventilators 19-3/4 dia.

Base Width Not Applicable

Bearing Type Sealed Pillow Block

Brake Horsepower 7/20 hp

CFM @ 0.000-In. SP 1968

CFM @ 0.125-In. SP 1895

CFM @ 0.250-In. SP 1822

CFM @ 0.375-In. SP 1749

CFM @ 0.500-In. SP 1671

CFM @ 0.625-In. SP 1586

CFM @ 0.750-In. SP 1479

CFM @ 0.875-In. SP 1358

CFM @ 1.000-In. SP 1198

Country of Origin (subject to change) Multiple

Current 6.6/3.4 to 3.1 A

Damper Size 12 x 12 in

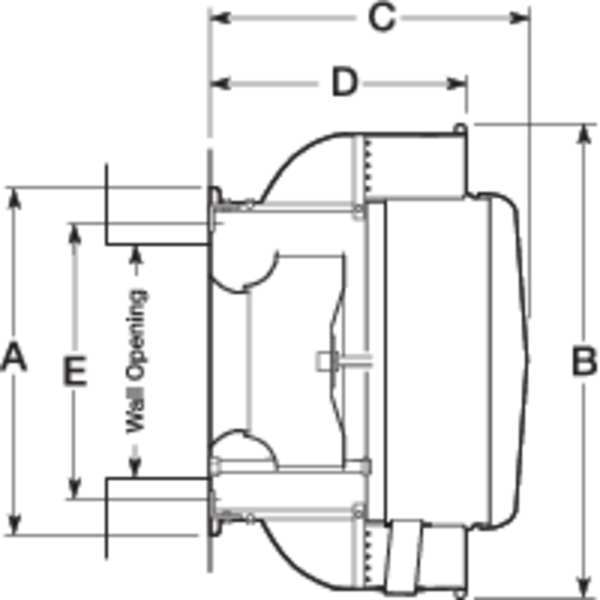

Dimension A 19 3/4 in

Dimension B 24 7/8 in

Dimension C 25 1/8 in

Dimension D 17 3/8 in

Dimension E 16 7/8 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Exhaust Airflow @ 0.000 in SP 1,968 cfm

Exhaust Airflow @ 0.000 in SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.125 in SP 1,895 cfm

Exhaust Airflow @ 0.250 in SP 1,822 cfm

Exhaust Airflow @ 0.375 in SP 1,749 cfm

Exhaust Airflow @ 0.500 in SP 1,671 cfm

Exhaust Airflow @ 0.500 in SP - Range 0 to 1,999 cfm

Features Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Increased Stability, Nonoverloading Centrifugal Wheel Design

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 24.9 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 24.9 in

Hz_ 60

Includes Drive Package, Mounting Plate, NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 0.35

Max. Inlet Temp. 300 Degrees F

Max. Operating Amps 6.6/3.0-3.3

Maximum Fan Speed 1,435 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 1 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/3 hp

Motor HP 1/3

Motor HP - Roof Ventilators 1/3 hp

Motor Location Out of Airstream

Motor Speed 1,435 RPM

Motor Voltage 115/208/230

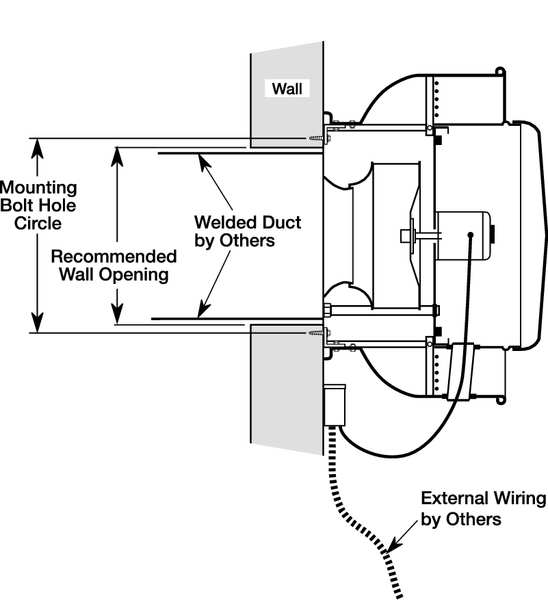

Mounting Location wall

Mounting Location - Roof Ventilators Roof, Wall

Nameplate Voltage 115/208-230V AC

Nominal Voltage 115/208-230V AC

Number of Speeds 1

Overall Dia. 24 7/8 in

Overall Diameter 24 7/8 in

Overall Height 25 1/8 in

Package Quantity 1

Phase 1

Propeller Shaft Diameter 3/4 in

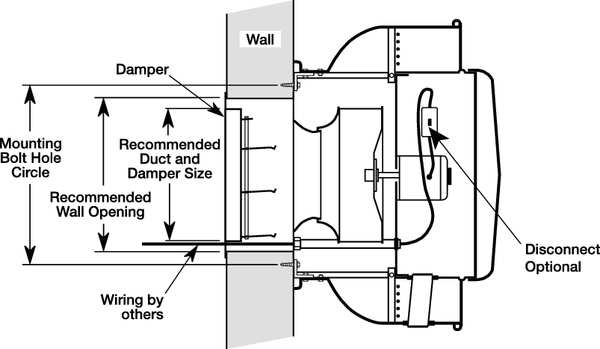

Recommended Damper Size (In.) 12 x 12

Recommended Damper Stock No. 4HX74

Resistance Properties Spark Resistant

RPM 1435

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 3/4 in

Sones @ 0.125-In. SP @ 5 Ft. 15.5

Sones @ 0.250-In. SP @ 5 Ft. 15.1

Sones @ 0.500-In. SP @ 5 Ft. 14.3

Sound Level 11.9 sones @ 1.000 in SP and 5 ft, 12.5 sones @ 0.875 in SP and 5 ft, 13.1 sones @ 0.750 in SP and 5 ft, 13.8 sones @ 0.625 in SP and 5 ft, 14.3 sones @ 0.500 in SP and 5 ft, 14.8 sones @ 0.375 in SP and 5 ft, 15.1 sones @ 0.250 in SP and 5 ft, 15.5 sones @ 0.125 in SP and 5 ft, 15.7 sones @ 0.000 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 115V AC/208V AC/230V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 13 1/4 in

Wheel Diameter 13 1/4 in

Wheel Material Aluminum

Wheel Type Backward Inclined
