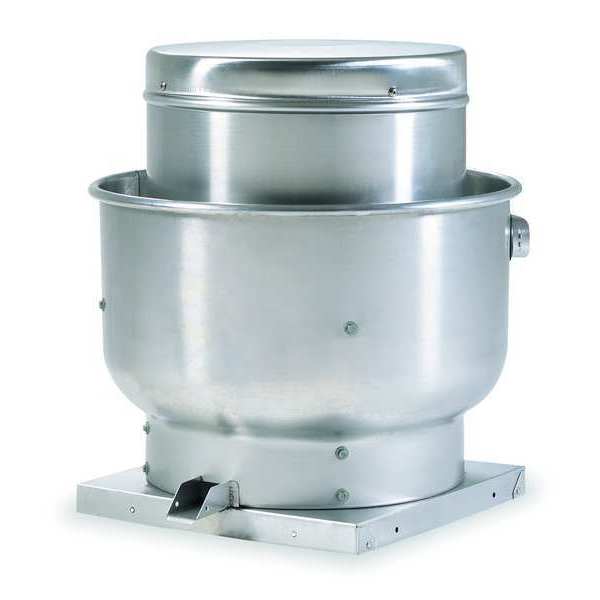

Upblast Vent, 11-1/4 In, 115/208-230V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter 19 3/4 in, Base Width Not Applicable, Base Length Not Applicable, Base Shape Round, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 1,413 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/4 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 7AR95, mscSKU: , zoro_no: G2582876, mongo_id: 65bbe92822d7a989a993bff6

Web Price

$1,181.24 / each

Qty

Product Details

Airflow @ 0.000 in SP 1,413 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter 19 3/4 in

Base Dimension 19 3/4 in Round

Base Length Not Applicable

Base Shape Round

Base Size - Roof Ventilators 19 3/4 in dia

Base Square Size - Roof Ventilators 19-3/4 dia.

Base Width Not Applicable

Bearing Type Sealed Pillow Block

Brake Horsepower 13/50 hp

CFM @ 0.000-In. SP 1413

CFM @ 0.125-In. SP 1365

CFM @ 0.250-In. SP 1313

CFM @ 0.375-In. SP 1251

CFM @ 0.500-In. SP 1189

CFM @ 0.625-In. SP 1125

CFM @ 0.750-In. SP 1056

CFM @ 0.875-In. SP 974

CFM @ 1.000-In. SP 861

Country of Origin (subject to change) Multiple

Current 4.6/2.2 to 2.3 A

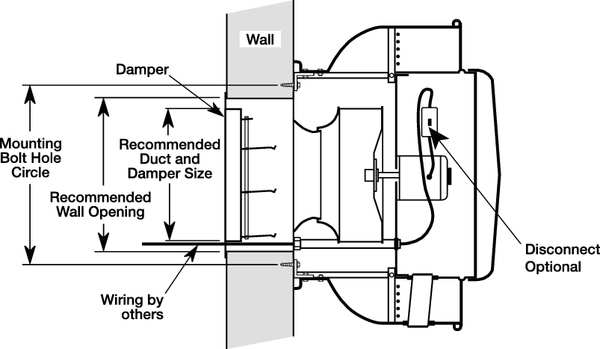

Damper Size 12 x 12 in

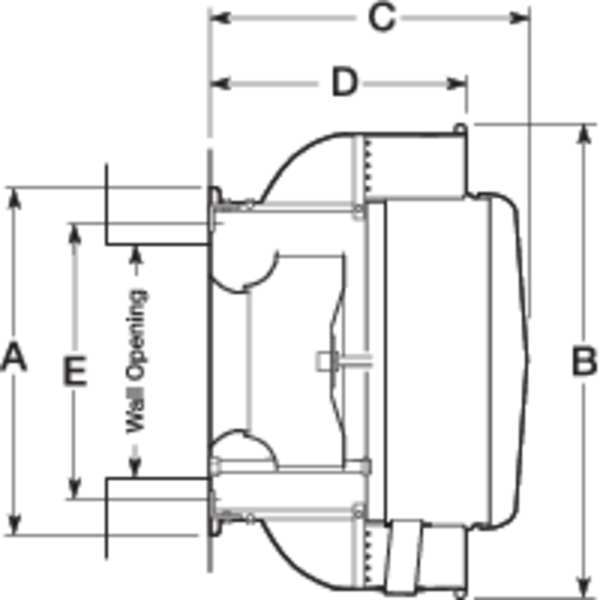

Dimension A 19 3/4 in

Dimension B 24 7/8 in

Dimension C 25 1/8 in

Dimension D 17 3/8 in

Dimension E 16 7/8 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Exhaust Airflow @ 0.000 in SP 1,413 cfm

Exhaust Airflow @ 0.000 in SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.125 in SP 1,365 cfm

Exhaust Airflow @ 0.250 in SP 1,313 cfm

Exhaust Airflow @ 0.375 in SP 1,251 cfm

Exhaust Airflow @ 0.500 in SP 1,189 cfm

Exhaust Airflow @ 0.500 in SP - Range 0 to 1,999 cfm

Features Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Leakproof, Nonoverloading Centrifugal Wheel Design

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 24.9 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 24.9 in

Hz_ 60

Includes Drive Package, Mounting Plate, NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 0.26

Max. Inlet Temp. 300 Degrees F

Max. Operating Amps 4.6/2.2-2.3

Maximum Fan Speed 1,660 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 1 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/4 hp

Motor HP 1/4

Motor HP - Roof Ventilators 1/4 hp

Motor Location Out of Airstream

Motor Speed 1,660 RPM

Motor Voltage 115/208/230

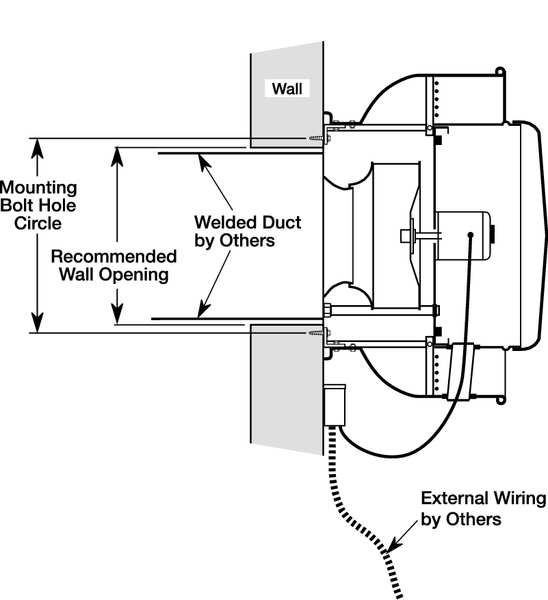

Mounting Location wall

Mounting Location - Roof Ventilators Roof, Wall

Nameplate Voltage 115/208-230V AC

Nominal Voltage 115/208-230V AC

Number of Speeds 1

Overall Dia. 24 7/8 in

Overall Diameter 24 7/8 in

Overall Height 25 1/8 in

Package Quantity 1

Phase 1

Propeller Shaft Diameter 3/4 in

Recommended Damper Size (In.) 12 x 12

Recommended Damper Stock No. 4HX74

Resistance Properties Spark Resistant

RPM 1660

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 3/4 in

Sones @ 0.125-In. SP @ 5 Ft. 12.3

Sones @ 0.250-In. SP @ 5 Ft. 12.0

Sones @ 0.500-In. SP @ 5 Ft. 11.3

Sound Level 10.2 sones @ 0.750 in SP and 5 ft, 10.8 sones @ 0.625 in SP and 5 ft, 11.3 sones @ 0.500 in SP and 5 ft, 11.6 sones @ 0.375 in SP and 5 ft, 12.0 sones @ 0.250 in SP and 5 ft, 12.3 sones @ 0.125 in SP and 5 ft, 12.7 sones @ 0.000 in SP and 5 ft, 9.4 sones @ 1.000 in SP and 5 ft, 9.6 sones @ 0.875 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 115V AC/208V AC/230V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 11 1/4 in

Wheel Diameter 11 1/4 in

Wheel Material Aluminum

Wheel Type Backward Inclined
