Upblast Less Drive Package, 14-3/4 In, Base Length: 22"

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, Wheel Diameter 14 3/4 in, Base Diameter Not Applicable, Base Length 22 in, Base Width 22 in, Base Shape Square, Maximum Static Pressure 1 3/4 in wc, Maximum Airflow 3,066 cfm, Minimum Airflow 998 cfm, Maximum Motor Horsepower 1 hp, Minimum Motor Horsepower 1/4 hp, Maximum Motor Speed 1,725 RPM, Minimum Motor Speed 1,105 RPM, Assembly Unassembled
graingerSKU: 16D524, mscSKU: , zoro_no: G4574482, mongo_id: 65bbe7563aaddbd5a908ba90

Web Price

$1,518.74 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. UL 762 Kitchen Roof Curb Stock No. 4HX61

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 22 in Square

Base Height 1.8 in

Base Length 22 in

Base Shape Square

Base Size - Roof Ventilators 22 in x 22 in

Base Width 22 in

Bearing Type Sealed Pillow Block

Brake Horsepower 13/50 hp, 17/50 hp, 13/25 hp, 79/100 hp, 1 hp

CFM Range 2001 to 3125 @ 0.0 in SP

Compatible Curb Manufacturer Part Number 24Y860, 2RB75-2RB77, 2RB79-2RB82, 2ZV82-2ZV85

Country of Origin (subject to change) United States

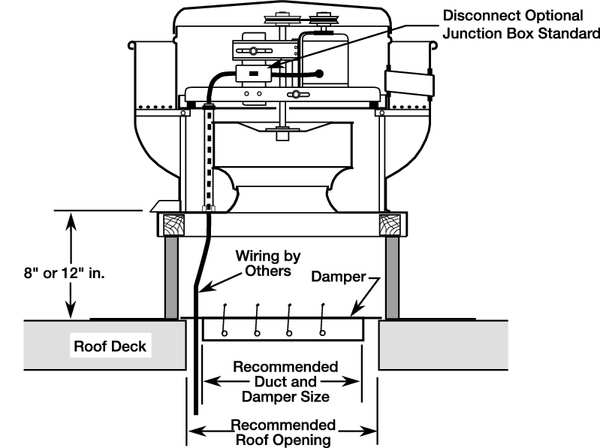

Cutout Length 17.5 in

Cutout Size 17.5 in L x 17.5 in W

Damper Size 15 x 15 in

Dimension A 22 in

Dimension B 28 7/8 in

Dimension C 26 3/8 in

Dimension D 19 3/8 in

Drive Package With Motor Included No

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Electrical Connection Power Cord

Features Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design

Fixed UL 762 Kitchen Roof Curb Stock No. 4HX55

For Air Type Kitchen Air

For Airflow (Dependent on Motor) 998 cfm to 3,066 cfm

For High-Static Pressure Applications No

Grease Capacity Standard Grease

Housing Length 28.9 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 28.9 in

Includes NEMA 1 Junction Box

Includes Drive Package No

Includes Motor No

Item - Roof Ventilators Upblast Ventilator

Max. Inlet Temp. 300 Degrees

Maximum Airflow 3,066 cfm

Maximum Ambient Temperature 300 Degrees F

Maximum Fan Speed 1,725 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Motor Horsepower 1 hp

Maximum Motor Speed 1,725 RPM

Maximum Noise Level @ 5 Feet 14.2 sones

Maximum Static Pressure 1 3/4 in wc

Minimum Airflow 998 cfm

Minimum Motor Horsepower 1/4 hp

Minimum Motor Speed 1,105 RPM

Motor HP Range 1/4 to 1

Motor Location Out of Airstream

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Number of Speeds 1

Overall Depth 28 1/8 in

Overall Dia. 24 7/8 in

Overall Diameter 24 7/8 in

Overall Height 28 1/8 in

Overall Width 28 7/8 in

Package Quantity 1

Propeller Shaft Diameter 3/4 in

Recommended 12 In. Fixed Curb Item No. 2RB76

Recommended Damper Size (In.) 15 x 15

Recommended Damper Stock No. 4HX65

RPM Range 1105 to 1725

Safety Features Fully Rolled Windband

Shaft Dia. Sheave End 3/4 in

Shaft Dia. Wheel End 3/4 in

Sound Level Fan RPM 1105 : 10.9 sones @ 0.000 in SP and 5 ft, 10.8 sones @ 0.125 in SP and 5 ft, 10.6 sones @ 0.250 in SP and 5 ft, 10.3 sones @ 0.375 in SP and 5 ft, 10.0 sones @ 0.500 in SP and 5 ft, 9.9 sones @ 0.625 in SP and 5 ft, 9.6 sones @ 0.750 in SP and 5 ft, Fan RPM 1210 : 12.2 sones @ 0.000 in SP and 5 ft, 12.2 sones @ 0.125 in SP and 5 ft, 11.7 sones @ 0.250 in SP and 5 ft, 11.6 sones @ 0.375 in SP and 5 ft, 11.2 sones @ 0.500 in SP and 5 ft, 11.0 sones @ 0.625 in SP and 5 ft, 10.9 sones @ 0.750 in SP and 5 ft, 10.6 sones @ 0.875 in SP and 5 ft, Fan RPM 1390 : 14.9 sones @ 0.000 in SP and 5 ft, 14.7 sones @ 0.125 in SP and 5 ft, 14.2 sones @ 0.250 in SP and 5 ft, 13.2 sones @ 0.375 in SP and 5 ft, 12.9 sones @ 0.500 in SP and 5 ft, 12.5 sones @ 0.625 in SP and 5 ft, 12.1 sones @ 0.750 in SP and 5 ft, 11.4 sones @ 0.875 in SP and 5 ft, 11.0 sones @ 1.000 in SP and 5 ft, Fan RPM 1595 : 20.0 sones @ 0.000 in SP and 5 ft,19.0 sones @ 0.125 in SP and 5 ft, 18.5 sones @ 0.250 in SP and 5 ft, 19.5 sones @ 0.375 in SP and 5 ft, 16.1 sones @ 0.500 in SP and 5 ft, 14.2 sones @ 0.625 in SP and 5 ft, 13.3 sones @ 0.750 in SP and 5 ft, 12.6 sones @ 0.875 in SP and 5 ft, 12.3 sones @ 1.000 in SP and 5 ft, 12.6 sones @ 1.250 in SP and 5 ft, 11.6 sones @ 1.500 in SP and 5 ft, Fan RPM 1725 : 26.0 sones @ 0.000 in SP and 5 ft, 23.0 sones @ 0.125 in SP and 5 ft, 22.0 sones @ 0.250 in SP and 5 ft, 24.0 sones @ 0.375 in SP and 5 ft, 24.0 sones @ 0.500 in SP and 5 ft, 18.0 sones @ 0.625 in SP and 5 ft, 15.1 sones @ 0.750 in SP and 5 ft, 14.1 sones @ 0.875 in SP and 5 ft, 13.4 sones @ 1.000 in SP and 5 ft, 14.3 sones @ 1.250 in SP and 5 ft, 13.8 sones @ 1.500 in SP and 5 ft, 13.8 sones @ 1.750 in SP and 5 ft

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 14 3/4 in

Wheel Diameter 14 3/4 in

Wheel Material Aluminum

Wheel Type Backward Inclined
