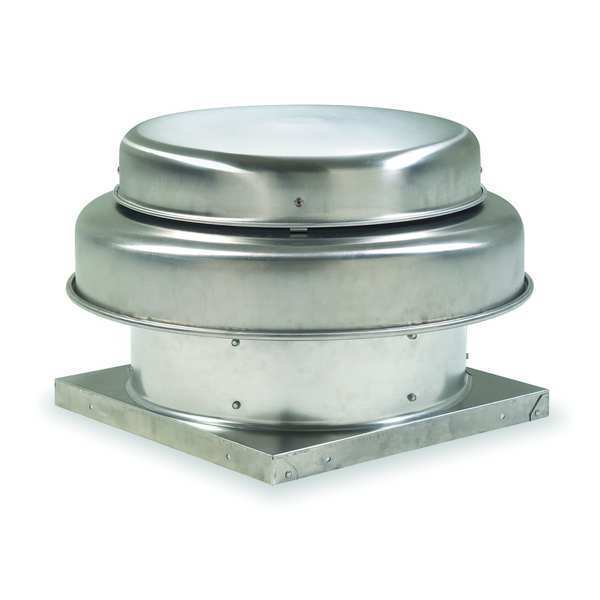

Supply Vent, 14 In

SKU
Brand Dayton
Categories
Description Supply Fan, Mounting Location Roof, Assembly Fully Assembled, Blade Diameter 14 in, Housing Material Aluminum, Exhaust Airflow @ 0.000 in SP 2,041 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, Maximum Static Pressure 3/4 in wc, Motor Enclosure Open Air Over, Motor Horsepower 1/4 hp, Nameplate Voltage 115V AC, Number of Speeds 1, Phase 1, Maximum Inlet Air Temperature 120 Degrees F, Number of Blades 4, Supply Airflow @ 0.000 in SP 2,041 cfm, Base Diameter Not Applicable
graingerSKU: 4YC93, mscSKU: , zoro_no: G1784517, mongo_id: 65bbe63f3aaddbd5a9019230

Web Price

$1,308.74 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. 6 3/8H Roof Curb Stock No. 4C453

Airflow @ 0.000 in SP 2,041 cfm

Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Application Industrial and Commercial Applications

Assembly Fully Assembled

Base Diameter Not Applicable

Base Dimension 22 in Square

Base Height 1 3/4 in

Base Length 22 in

Base Shape Square

Base Top to Shroud 6 1/4 in

Base Width 22 in

Blade Design Swept Steeply Pitched

Blade Diameter 14 in

Blade Material Aluminum

Brake Horsepower 1/4 hp

CFM @ 0.000-In. SP 2041

CFM @ 0.125-In. SP 1912

CFM @ 0.250-In. SP 1742

CFM @ 0.375-In. SP 1567

CFM @ 0.500-In. SP 1380

CFM @ 0.625-In. SP 1155

CFM @ 0.750-In. SP 1018

Compatible Curb Manufacturer Part Number 2RB76, 2ZV82, 4C453, 4C670, 4HX39, 4HX47

Compatible Speed Control 48C173

Country of Origin (subject to change) United States

Current 4.2 A

Cutout Length 17.5 in

Cutout Size 17.5 in L x 17.5 in W

Damper Size 15 x 15 in

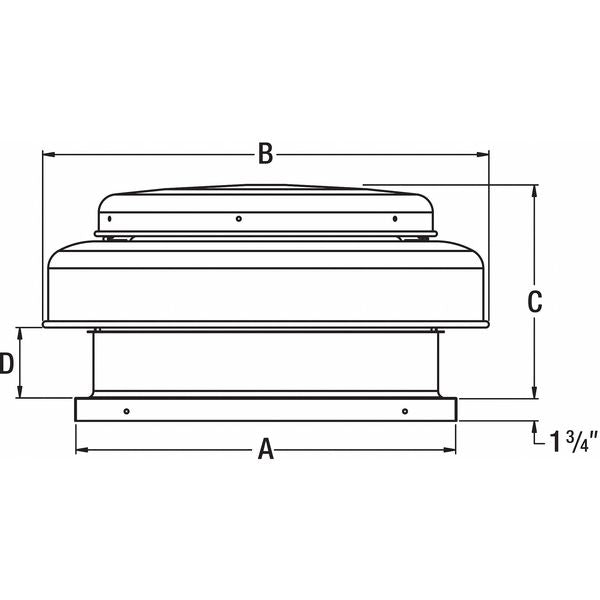

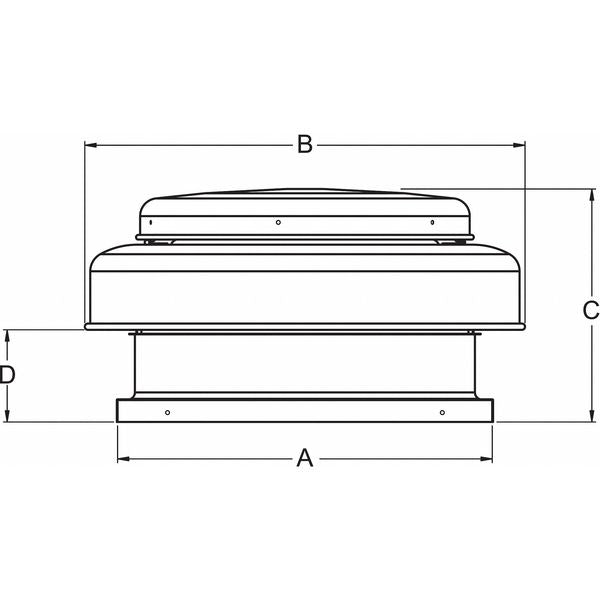

Dimension A 22 in

Dimension B 28 5/8 in

Dimension C 16 1/2 in

Dimension D 6 1/4 in

Drive Type Direct Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 2,041 cfm

Exhaust Airflow @ 0.125 in SP 1,912 cfm

Exhaust Airflow @ 0.250 in SP 1,742 cfm

Exhaust Airflow @ 0.375 in SP 1,567 cfm

Exhaust Airflow @ 0.500 in SP 1,380 cfm

Features Fully Rolled Baffle Bead for Stability and Ease of Transport With Spun Aluminum Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Length 28.6 in

Housing Material Spun Aluminum

Housing Material Fabrication Spun

Housing Width 28.6 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Material Aluminum Blade with Aluminum Housing

Max. BHP 0.25 hp

Max. Inlet Temp. 120 Degrees F

Max. Operating Amps 3.0

Maximum Fan Speed 1,750 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 3/4 in wc

Motor Efficiency Standard-Efficiency Motor

Motor Enclosure Open Air Over

Motor Enclosure Design Open Air-Over (OAO)

Motor Horsepower 1/4 hp

Motor HP 1/4 hp

Motor Location In Airstream

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 115V AC

Number of Blades 4

Number of Speeds 1

Overall Dia. 28 5/8 in

Overall Diameter 28.6 in

Overall Height 16 1/2 in

Overall Length 28 5/8 in

Overall Width 28 5/8 in

Package Quantity 1

Phase 1

Promotion Restriction Not eligible for promotion

Propeller Dia. 14 in

Propeller Material Aluminum

Propeller Shaft Diameter 1/2 in

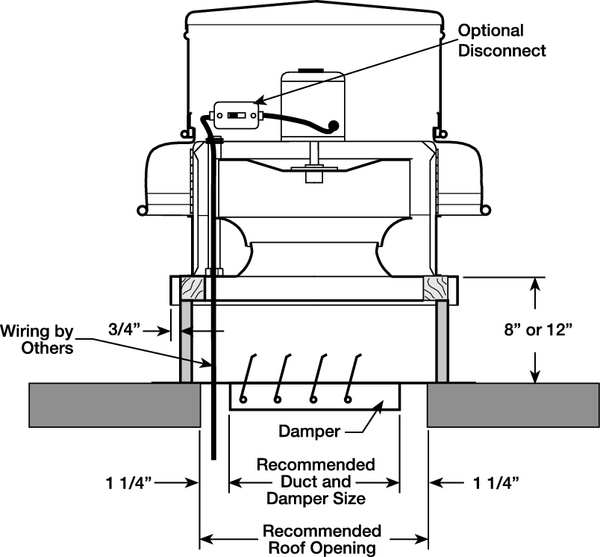

Recommended 12 In. Fixed Curb Item No. 2RB76

Recommended 8 In. Fixed Curb Item No. 4HX39

Recommended Damper Size 15 in x 15 in

Recommended Damper Stock No. 4HX65

Requires Roof Curb for New Installation

RPM 1750

Safety Features Birdscreen

Shaft Dia. Propeller End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 15.7

Sones @ 0.250-In. SP @ 5 Ft. 15.9

Sound Level 15.7 sones @ 0.125 in SP and 5 ft, 15.9 sones @ 0.250 in SP and 5 ft, 15.9 sones @ 0.375 in SP and 5 ft, 16.1 sones @ 0.000 in SP and 5 ft, 17.3 sones @ 0.750 in SP, 18.4 sones @ 0.500 in SP and 5 ft, 18.9 sones @ 0.625 in SP and 5 ft

Speed Control 48C173

Speed Controllable Yes

Standards AMCA Sound & Air, UL/cUL 705

Supply Airflow @ 0.000 in SP 2,041 cfm

Supply Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Supply Airflow @ 0.125 in SP 1,912 cfm

Supply Airflow @ 0.250 in SP 1,741 cfm

Supply Airflow @ 0.375 in SP 1,567 cfm

Supply Airflow @ 0.500 in SP 1,380 cfm

Voltage 115
