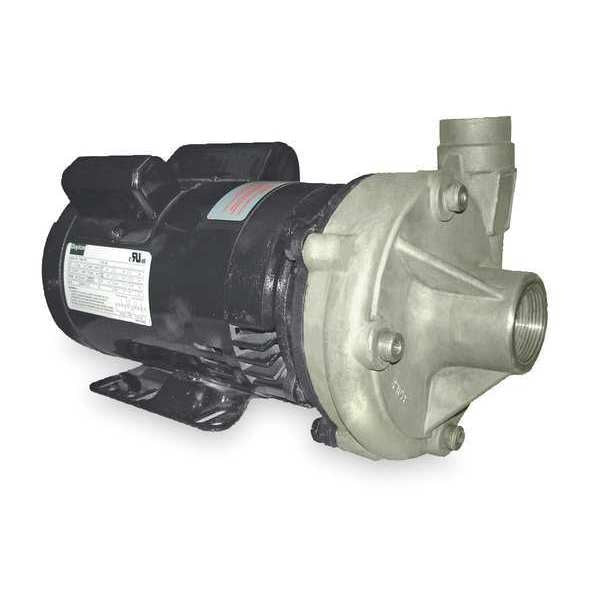

Stainless Steel 3/4 HP Centrifugal Pump 115/230V

Home / Stainless Steel 3/4 HP Centrifugal Pump 115/230V

Stainless Steel 3/4 HP Centrifugal Pump 115/230V

SKU
Brand Dayton
Categories Pumps
Description Centrifugal Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 3/4 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 42 gpm, Flow Rate @ 60 ft of Head (Maximum) 32 gpm, Flow Rate @ 80 ft of Head (Maximum) 19 gpm, Maximum Feet of Head 98 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 10 ft of Head (Maximum) 53 gpm
graingerSKU: 2ZXK6, mscSKU: , zoro_no: G3431154, mongo_id: 65bbe77c3aaddbd5a909a570

Web Price

$1,008.74 / each

Qty

Product Details

Agency Compliance UL Approval in Motor

Amps 11.3/5.6

Bearing Type Ball

Best Efficiency Flow 33 gpm

Best Efficiency GPM @ Head 33 @ 59 ft

Best Efficiency Head 59 ft

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 1/4 in

Compatible with Media Type Non-Flammable Liquids

Country of Origin (subject to change) India

Discharge Rotation 90 Degrees Increments

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Features Continuous High Pressure Circulation

Feet of Head (Minimum) 10 ft

Flow Rate @ 1 ft of Head (Maximum) Not Applicable

Flow Rate @ 10 ft of Head (Maximum) 53 gpm

Flow Rate @ 100 ft of Head (Maximum) Not Applicable

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) 51 gpm

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) 49 gpm

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) 46 gpm

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) 42 gpm

Flow Rate @ 5 ft of Head (Maximum) Not Applicable

Flow Rate @ 50 ft of Head (Maximum) 37 gpm

Flow Rate @ 60 ft of Head (Maximum) 32 gpm

Flow Rate @ 70 ft of Head (Maximum) 27 gpm

Flow Rate @ 80 ft of Head (Maximum) 19 gpm

Flow Rate @ 90 ft of Head (Maximum) 12 gpm

For Use With Potable Systems No

Frame 56J

Frequency 60 Hz

GPM of Water @ 10 Ft. of Head 53

GPM of Water @ 15 Ft. of Head 51

GPM of Water @ 20 Ft. of Head 49

GPM of Water @ 25 Ft. of Head 47

GPM of Water @ 30 Ft. of Head 46

GPM of Water @ 40 Ft. of Head 42

GPM of Water @ 50 Ft. of Head 37

GPM of Water @ 60 Ft. of Head 32

GPM of Water @ 70 Ft. of Head 27

GPM of Water @ 80 Ft. of Head 19

GPM of Water @ 90 Ft. of Head 12

Height 8 1/2 in

Horsepower 3/4 hp

Housing Material Stainless steel

Housing Material - Pumps Stainless Steel

HP - Pumps 3/4 hp

HP_ 3/4

Hz_ 60

Impeller Design Closed

Impeller Material Stainless Steel

Impeller Type Closed

Includes Manual

Inlet 1-1/4

Inlet Pressure 200 psi

Inlet Size - Pumps 1-1/4 in NPT

Intake and Discharge Size 1 1/4 in , 1 in

Intake Type NPT

Item - Straight Centrifugal Pumps Straight Centrifugal High Head Pump

Length 15 1/2 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 200 psi

Max. Dia. Solids 5/32 in

Max. Head 98 ft

Max. Liquid Temp. 200 Degrees F

Max. Pressure 42 psi

Max. Pressure - Pumps 42 psi

Max. Specific Gravity 1.0

Maximum Feet of Head 98 ft

Maximum Media Temperature 200 Degrees F

Maximum RPM 3,450 RPM

Minimum Media Temperature 40 Degrees F

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J

Motor RPM 3,450 RPM

Motor Type ODP

Nameplate Voltage 115/230V AC

Nominal Voltage 115/230V AC

Outlet 1

Outlet Size - Pumps 1 in NPT

Overall Height 8.5 in

Overall Length 15.5 in

Overall Width 7.9 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Port Rotation 4 Position Increments

Pump Housing Material Stainless Steel

Pumping Application Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation

Seal Material Viton

Seal Type Mechanical

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 42 psi

Solid Diameter (Maximum) 0.16 in

Specific Gravity (Maximum) 1

Standards UL Listed (Motor Only)

Voltage 115/230VAC

Voltage - Pumps 120/240V AC

Wetted Material Carbon, Ceramic, Stainless Steel, Viton

Wetted Materials Carbon, Ceramic, Stainless Steel, Viton

Width 8 in
