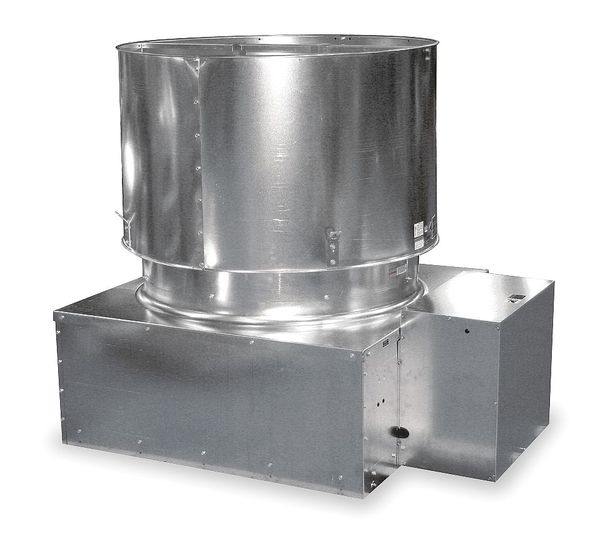

Roof Vent, 48 In, Less Drive Pkg

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Assembly Unassembled, Drive Type Belt Drive, Blade Diameter 48 in, Base Diameter Not Applicable, Base Length 57 1/2 in, Base Width 57 1/2 in, Base Shape Square, Maximum Airflow 34,761 cfm, Minimum Airflow 18,650 cfm, Maximum Motor Horsepower 5 hp, Minimum Motor Horsepower 2 hp, Maximum Motor Speed 587 RPM, Minimum Motor Speed 313 RPM, Maximum Static Pressure 1/2 in wc, For High-Static Pressure Applications No, For Air Type Emergency Smoke
graingerSKU: 2RB67, mscSKU: , zoro_no: G1673813, mongo_id: 65bbe9bf22d7a989a99758cd

Web Price

$6,392.49 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV86

Adj. 6 3/8H Roof Curb Stock No. 3C216

Agency Compliance cUL Listed, UL

Application Industrial and Commercial Buildings

Assembly Unassembled

Base Diameter Not Applicable

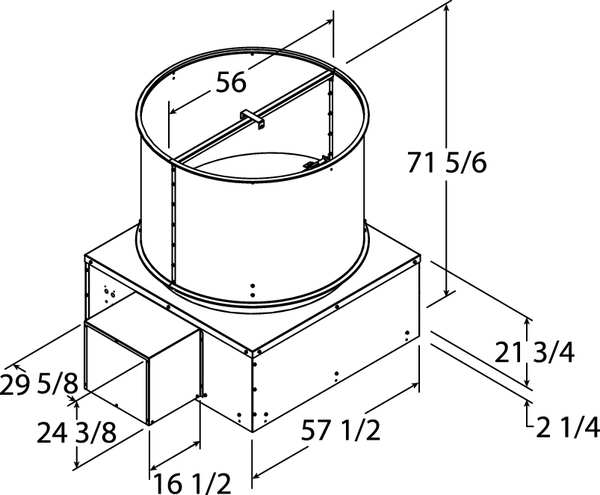

Base Dimension 57 1/2 in Square

Base Height 1 3/4 in

Base Height (In.) 1 3/4 in

Base Length 57 1/2 in

Base Length (In.) 57-1/2

Base Shape Square

Base Size - Roof Ventilators 57 1/2 in x 57 1/2 in

Base Width 57 1/2 in

Base Width (In.) 57-1/2

Bearing Type Regreasable Pillow Block

Blade Design Swept Steeply Pitched

Blade Dia. 48 in

Blade Diameter 48 in

Blade Finish Galvanized

Blade Material Steel

Brake Horsepower 2 1/5 hp

CFM Range 25642 to 34761 @ 0.000-In SP

Compatible Curb Manufacturer Part Number 2ZV86, 3AZJ7, 3C216, 4HX45, 4HX53

Country of Origin (subject to change) United States

Cutout Length 52 in

Cutout Size 52 in L x 52 in W

Drive Package With Motor Included No

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Features Spring Loaded Damper Lifters

For Air Type Emergency Smoke

For Airflow (Dependent on Motor) 18,650 cfm to 34,761 cfm

For High-Static Pressure Applications No

Fusible Link Temperature 165 Degrees F

Housing Finish Galvanized

Housing Length 56 in

Housing Material Steel

Housing Width 56 in

Includes Drive Package No

Includes Motor No

Item - Roof Ventilators Emergency Smoke Ventilator

Material Steel Blade with Steel Housing

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Airflow 34,761 cfm

Maximum Ambient Temperature 1,000 Degrees F

Maximum Fan Speed 587 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Motor Horsepower 5 hp

Maximum Motor Speed 587 RPM

Maximum Noise Level @ 5 Feet 29 sones

Maximum Static Pressure 1/2 in wc

Minimum Airflow 18,650 cfm

Minimum Motor Horsepower 2 hp

Minimum Motor Speed 313 RPM

Motor HP Range 2 to 5

Mount Type Roof Curb

Mounting Location Roof

Mounting Orientation Horizontal, Vertical

Noise Level @ 0.000 in SP @ 5 ft 18.8 sones

Number of Blades 6

Overall Depth 74 in

Overall Dia. (In.) 56 in

Overall Diameter 56 in

Overall Height 71 7/8 in

Overall Height (In.) 71 5/6 in

Overall Width 57 1/2 in

Package Quantity 1

Power Source Electric Motor

Propeller Material Steel

Propeller Shaft Diameter 1 1/4 in

Recommended 12 In. Fixed Curb Item No. 4HX53

Recommended 8 In. Fixed Curb Item No. 4HX45

Requires Roof curb for new installations

Resistance Properties Weather Resistant

RPM Range 313 to 587

Series RBUMO

Shaft Dia. Propeller End (In.) 1 1/4 in

Shaft Dia. Sheave End (In.) 1 1/4 in

Smoke Control Maximum Temperature 100 Degrees F for 15 min, 500 Degrees F for 4 hr

Sound Level Fan RPM 433: 18.8 Sones @ 0.000 in SP and 5 ft, 18.4 sones @ 0.125 in SP and 5 ft, 18.2 sones @ 0.250 in SP and 5 ft, Fan RPM 496: 23.0 Sones @ 0.000 in SP and 5 ft, 23.0 sones @ 0.125 in SP and 5 ft, 22.0 sones @ 0.250 in SP and 5 ft, 23.0 sones @ 0.375 in SP and 5 ft, Fan RPM 587: 29.0 Sones @ 0.000 in SP and 5 ft, 29.0 sones @ 0.125 in SP and 5 ft, 29.0 sones @ 0.250 in SP and 5 ft, 28.0 sones @ 0.375 in SP and 5 ft, 29.0 sones @ 0.500 in SP and 5 ft

Spark Resistant Construction Type A

Speed Control No

Speed Controllable No

Standards AMCA, UL/cUL 793

Stock No. 2RB67

Type Emergency Smoke
