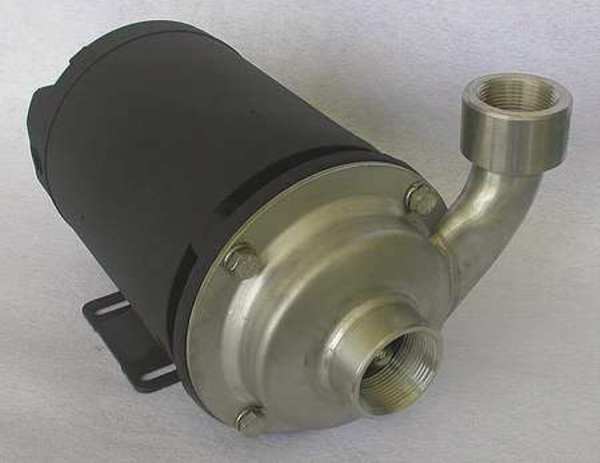

Pump, 2 HP, 230/460V, 8.4/4.2 Amp

Home / Pump, 2 HP, 230/460V, 8.4/4.2 Amp

Pump, 2 HP, 230/460V, 8.4/4.2 Amp

SKU
Brand Dayton
Categories Pumps
Description Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 68 ft, Flow Rate (Maximum) 130 gpm, Horsepower (Maximum) 2 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 114 gpm
graingerSKU: 4JMW3, mscSKU: , zoro_no: G2264324, mongo_id: 65bbe90822d7a989a992e143

Web Price

$1,586.24 / each

Qty

Product Details

Agency Compliance CUS

Ambient Temperature (Maximum) 104 Degrees F

Ambient Temperature (Minimum) 40 Degrees F

Amps 8.4/4.2

Application Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating

Bearing Type Ball

Best Efficiency Flow 55 gpm

Best Efficiency GPM @ Head 55 gpm @ 50 ft

Best Efficiency Head 50 ft

Best Efficiency Range GPM @ Head 26 to 100 gpm @ 60 to 100 ft

Case Pressure (Maximum) 150 psi

Compatible Motor Frame 56J NEMA

Cord Length Not Applicable

Country of Origin (subject to change) China

Current 8.4 or 4.2 A

Discharge Pipe Size 1 1/2 in

Discharge Pipe Type NPT

Discharge Port 1 1/2 in NPT

Discharge Rotation 90 Degrees Increments

Drain Plug No

Duty Continuous

Duty Cycle Continuous

Electrical Connection Type Not Applicable

Feet of Head (Maximum) 68 ft

Flow Rate (Maximum) 130 gpm

Flow Rate (Minimum) 24 gpm

Flow Rate @ 1 ft of Head (Maximum) 118 gpm

Flow Rate @ 10 ft of Head (Maximum) 114 gpm

Flow Rate @ 15 ft of Head (Maximum) 106 gpm

Flow Rate @ 20 ft of Head (Maximum) 109 gpm

Flow Rate @ 25 ft of Head (Maximum) 100 gpm

Flow Rate @ 30 ft of Head (Maximum) 92 gpm

Flow Rate @ 40 ft of Head (Maximum) 75 gpm

Flow Rate @ 5 ft of Head (Maximum) 117 gpm

Flow Rate @ 60 ft of Head (Maximum) 24 gpm

Flow Rate @ 70 ft of Head (Maximum) Not Applicable

Flow Rate @ 80 ft of Head (Maximum) Not Applicable

For Use With Potable Systems No

Frequency 60 Hz

GPM of Water @ 10 Ft. of Head 114

GPM of Water @ 15 Ft. of Head 110

GPM of Water @ 20 Ft. of Head 109

GPM of Water @ 25 Ft. of Head 105

GPM of Water @ 30 Ft. of Head 92

GPM of Water @ 40 Ft. of Head 85

GPM of Water @ 5 Ft. of Head 130

GPM of Water @ 50 Ft. of Head 55

GPM of Water @ 60 Ft. of Head 24

Height 7 3/4 in

Horsepower (Maximum) 2 hp

Housing Material 304 Stainless Steel

HP_ 2 hp

Hz_ 60

Impeller Design Closed

Impeller Material 304 Stainless Steel

Impeller Type Closed

Includes Manual

Inlet 2 in NPT

Inlet Pressure 120 psi

Intake Pipe Size 2 in

Intake Pipe Type NPT

Length 14 3/4 in

Manufacturers Warranty Length 1 yr

Max. Case Pressure 150 psi

Max. Dia. Solids 1/8 in

Max. Fluid Viscosity 31 SUS

Max. GPM @ Head 130 gpm @ 5 ft

Max. Head 68 ft

Max. Liquid Temp. 200 Degrees F

Max. Specific Gravity 1.0

Media Temperature (Maximum) 200 Degrees F

Media Temperature (Minimum) 40 Degrees F

Min. GPM @ Head 24 gpm @ 60 ft

Motor Enclosure ODP

Motor RPM 3,450 RPM

Motor Speed (Maximum) 3,450 RPM

Nameplate Voltage 230/460V AC

NEMA/IEC Frame 56J

Outlet 1-1/2 in NPT

Overall Height 7.8 in

Overall Length 14.8 in

Overall Width 8.6 in

Package Quantity 1

Phase 3

Port Rotation 90 Degrees Increments

Priming Manual

Screw Material Stainless Steel

Seal Material Carbon, Ceramic, Stainless Steel, Viton

Seal Type Mechanical

Service Factor 1.15

Shaft Material Stainless Steel

Shaft Outer Diameter 7/16 in

Shut Off Pressure (Maximum) 150 psi

Solid Diameter (Maximum) 0.13 in

Specific Gravity (Maximum) 1

Standards CUS

Suction Port 2 in NPT

Viscosity (Maximum) 31 SUS

Voltage 230/460

Wetted Material 304 Stainless Steel, Carbon, Ceramic, Viton

Wetted Materials 304 Stainless Steel, Carbon, Ceramic, Viton

Width 8 9/16 in
