Home / MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2
MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2
MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2
MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2
MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2
MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2

MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2

  • Dayton

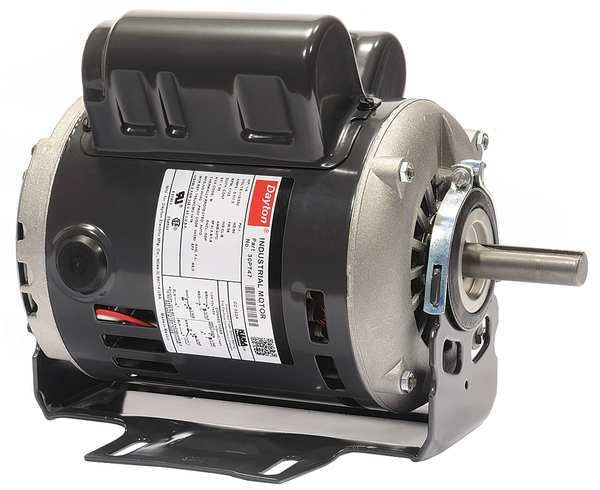

  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.0/3.6 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Keyed

    graingerSKU: 30PT89, mscSKU: , zoro_no: G9009515, mongo_id: 65bbe7519a749db82272f9b1

Web Price
$494.99 / each
Qty

Product Details

Yes
Mexico
Continuous
Continuous
56
Rolled steel
7.0/3.6 A
Energy Aware
Product Contributes To Reducing Energy Consumption
3/4 hp
60 Hz
Start Cap 357MFD @ 165V
B
No
9 7/8 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Cradle Base
1.25
Keyed
CW/CCW
Auto
3,450
1
76.2 %
11 13/16 in
1
Single
3001-3600
3,001-3,600
5/8 in
1 7/8 in
CSA (258501), UL (E47479)
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
