Home / MTR, CS/CR, ODP, 2 HP, 3450RPM, 56, EFF 82.9
MTR, CS/CR, ODP, 2 HP, 3450RPM, 56, EFF 82.9
MTR, CS/CR, ODP, 2 HP, 3450RPM, 56, EFF 82.9
MTR, CS/CR, ODP, 2 HP, 3450RPM, 56, EFF 82.9
MTR, CS/CR, ODP, 2 HP, 3450RPM, 56, EFF 82.9
MTR, CS/CR, ODP, 2 HP, 3450RPM, 56, EFF 82.9

MTR, CS/CR, ODP, 2 HP, 3450RPM, 56, EFF 82.9

  • Dayton

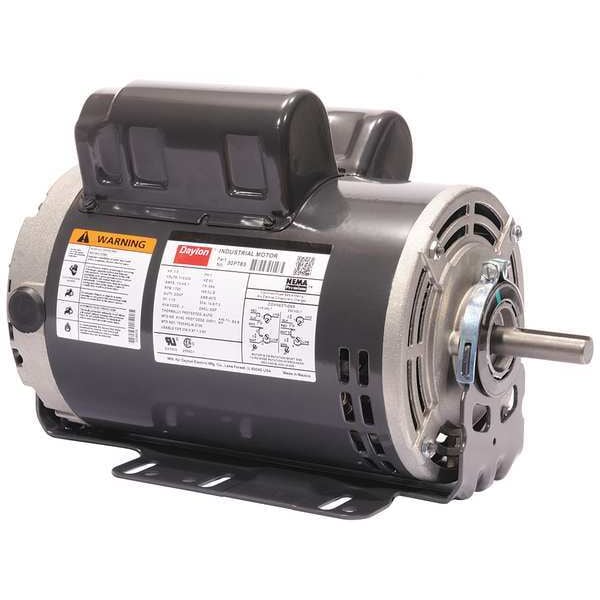

  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.3/8.7 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Keyed

    graingerSKU: 30PT84, mscSKU: , zoro_no: G8565295, mongo_id: 65bbe8e822d7a989a9922fde

Web Price
$752.49 / each

Product Details

Yes
Mexico
Continuous
Continuous
56H
Rolled steel
17.3/8.7 A
Energy Aware
Product Contributes To Reducing Energy Consumption
2 hp
60 Hz
Start Cap 495MFD @ 165V
B
No
12 3/8 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Cradle Base
1.15
Keyed
CW/CCW
Auto
3,450
1
82.9 %
13 13/16 in
1
Single
3001-3600
3,001-3,600
5/8 in
1 7/8 in
CSA (258501), UL (E47479)
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
