Home / MTR, CS/CR, ODP, 1/3 HP, 1725, 48Z, EFF 72.4

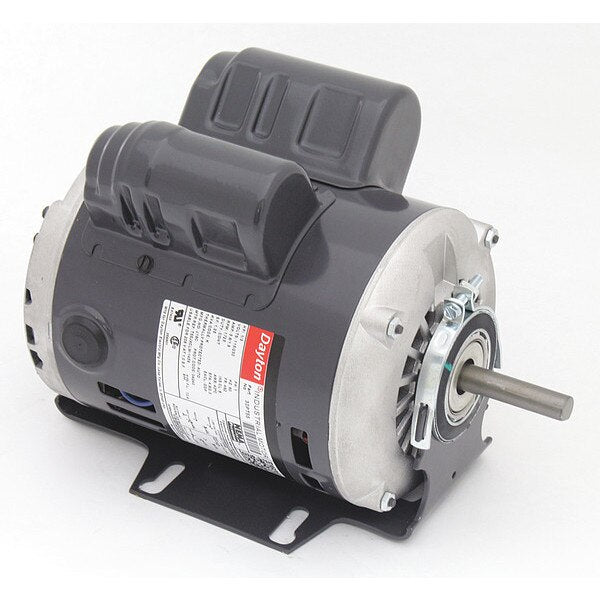

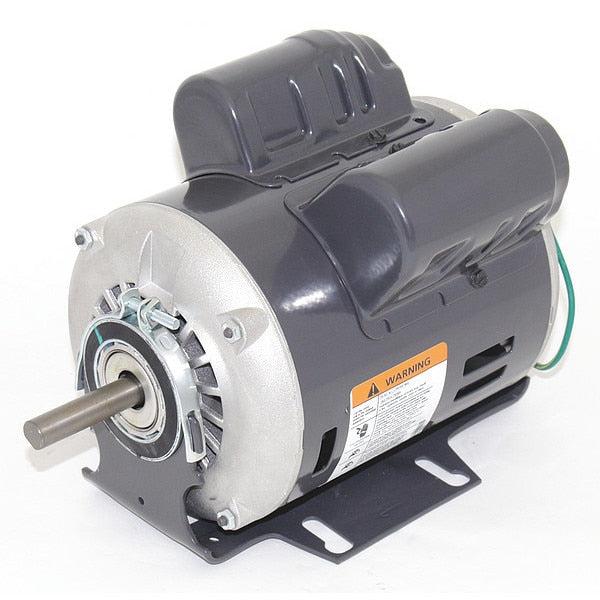

MTR, CS/CR, ODP, 1/3 HP, 1725, 48Z, EFF 72.4
MTR, CS/CR, ODP, 1/3 HP, 1725, 48Z, EFF 72.4
MTR, CS/CR, ODP, 1/3 HP, 1725, 48Z, EFF 72.4
MTR, CS/CR, ODP, 1/3 HP, 1725, 48Z, EFF 72.4
MTR, CS/CR, ODP, 1/3 HP, 1725, 48Z, EFF 72.4
MTR, CS/CR, ODP, 1/3 HP, 1725, 48Z, EFF 72.4

MTR, CS/CR, ODP, 1/3 HP, 1725, 48Z, EFF 72.4

  • Dayton
  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.8/1.9 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Flat

    graingerSKU: 30PT55, mscSKU: , zoro_no: G9009454, mongo_id: 65bbee1c526e052139aee96e

Web Price
$459.99 / each
Qty

Product Details

Yes
Mexico
Continuous
Continuous
48Z
Rolled steel
3.8/1.9 A
Energy Aware
Product Contributes To Reducing Energy Consumption
1/3 hp
60 Hz
Start Cap 238MFD @ 125V
B
No
8 3/8 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Cradle Base
1.35
Flat
CW/CCW
Auto
1,725
1
72.4 %
10 5/16 in
1
Single
1701-1800
1,701-1,800
1/2 in
1 7/8 in
CSA (258501), UL (E47479)
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
