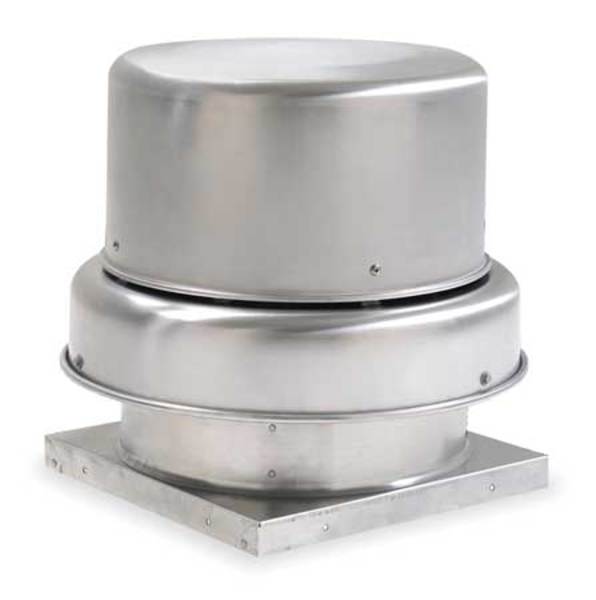

Downblast Vent, Belt Drive, 36 In
Downblast Vent, Belt Drive, 36 In

Downblast Vent, Belt Drive, 36 In

  • Dayton
  • Centrifugal Downblast Roof Exhaust Fan, Drive Type Belt Drive, Assembly Unassembled, Wheel Diameter 36 in, Base Diameter Not Applicable, Base Length 46 in, Base Width 46 in, Base Shape Square, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/2 hp, Exhaust Airflow @ 0.000 in SP 8,693 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof, Maximum Static Pressure 3/8 in wc

    graingerSKU: 7YR33, mscSKU: , zoro_no: G2029781, mongo_id: 65bbe70b3aaddbd5a906f09d

Web Price
$4,374.99 / each
Qty

Product Details

3C598 or 2ZV85
3c597
AMCA Sound & Air, UL/cUL 705
8,693 cfm
8,000 to 15,000 cfm
Industrial and Commercial Applications
Unassembled
Unassembled
Not Applicable
46 in Square
1 3/4 in
46 in
Square
46 in x 46 in
46 x 46
46 in
Regreasable Pillow Block
14/25 hp
8693
7830
6756
5001
2RB82, 2ZV85, 3C597, 3C598, 4HX44, 4HX52
Multiple
7.6/3.7 to 3.8 A
39 x 39 in
46 in
58 3/4 in
38 1/2 in
8 7/8 in
Yes
Yes
Belt Drive
Belt Drive
Standard
Power Cord
8,693 cfm
5,000 to 10,000 cfm
7,830 cfm
6,756 cfm
5,001 cfm
Fresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life, Fully Rolled Windband Bead for Increased Stability and Easy Transport, Nonoverloading Centrifugal Wheel Design
Clean Air
No
60 Hz
No
58.8 in
Aluminum
Spun
58.8 in
60
Drive Package, NEMA 1 Junction Box
Yes
Yes
Downblast Ventilator
Aluminum Blade with Aluminum Housing
0.56
180 Degrees
8.6/3.7-3.8
325 RPM
180 Degrees F
3/8 in wc
Standard-Efficiency Motors
Open Dripproof
Open Dripproof (ODP)
1/2 hp
1/2
1/2 hp
Out of Airstream
1,725 RPM
115/208/230
Roof Curb
Roof
Roof
115/208-230V AC
115/208-230V AC
1
58 3/4 in
58 3/4 in
40 1/4 in
58 3/4 in
58 3/4 in
1
1
1 1/4 in
2RB82 or 4HX52
4HX44
Weather Resistant
325
Birdscreen, Windband
1 1/4 in
8.0
6.8
5.6 sones @ 0.375 in SP and 5 ft, 6.8 sones @ 0.250 in SP and 5 ft, 8.0 sones @ 0.125 in SP and 5 ft, 8.7 sones @ 0.000 in SP and 5 ft
A
No
AMCA Sound and Air, UL/cUL 705
115V AC/208V AC/230V AC
36 in
36 in
Aluminum
Backward Inclined
