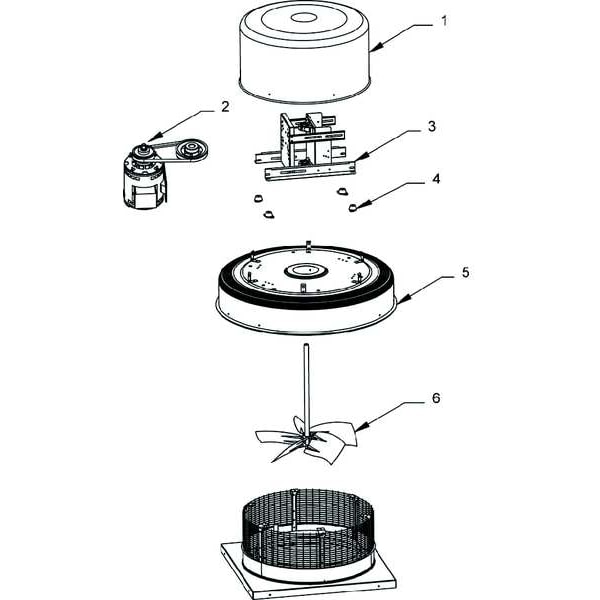

Downblast Vent, Belt Drive, 33-1/2 In

SKU
Brand Dayton
Categories
Description Centrifugal Downblast Roof Exhaust Fan, Drive Type Belt Drive, Assembly Unassembled, Wheel Diameter 33 1/2 in, Base Diameter Not Applicable, Base Length 46 in, Base Width 46 in, Base Shape Square, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 5 hp, Exhaust Airflow @ 0.000 in SP 16,908 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof
graingerSKU: 7AU96, mscSKU: , zoro_no: G2969827, mongo_id: 65bbe8bc22d7a989a9910fc9

Web Price

$4,627.49 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 3C597

Adj. 6 3/8H Roof Curb Stock No. 3c597

Agency Compliance AMCA Sound & Air, UL/cUL 705

Airflow @ 0.000 in SP 16,908 cfm

Airflow @ 0.000 in SP - Range More than 15,000 cfm

Application Industrial and Commercial Applications

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 46 in Square

Base Height 1 3/4 in

Base Length 46 in

Base Shape Square

Base Size - Roof Ventilators 46 in x 46 in

Base Square Size - Roof Ventilators 46 x 46

Base Width 46 in

Bearing Type Regreasable Pillow Block

Brake Horsepower 5 17/100 hp

CFM @ 0.000-In. SP 16,908

CFM @ 0.125-In. SP 16,549

CFM @ 0.250-In. SP 16,185

CFM @ 0.375-In. SP 15,798

CFM @ 0.500-In. SP 15,408

CFM @ 0.625-In. SP 14,987

CFM @ 0.750-In. SP 14,564

CFM @ 0.875-In. SP 14,094

CFM @ 1.000-In. SP 13,624

CFM @ 1.250-In. SP 12,640

CFM @ 1.500-In. SP 11,538

CFM @ 1.75-In. SP 10,184

Compatible Curb Manufacturer Part Number 2RB82, 2ZV85, 3C597, 3C598, 4HX44, 4HX52

Country of Origin (subject to change) Multiple

Current 14.0 to 12.7/6.3 A

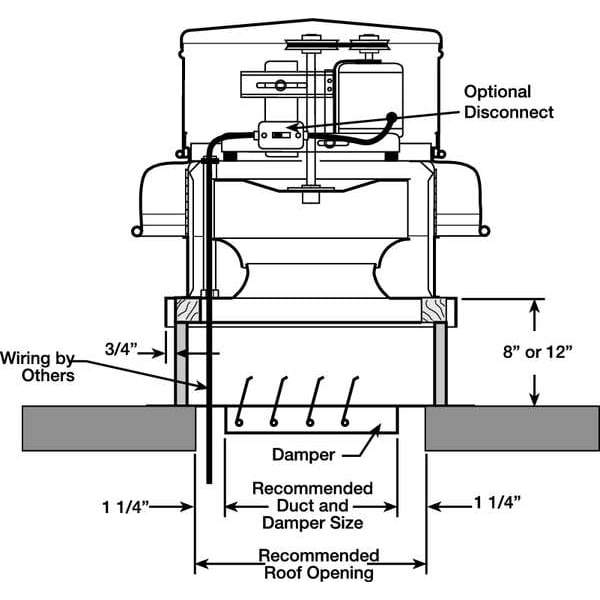

Damper Size 39 x 39 in

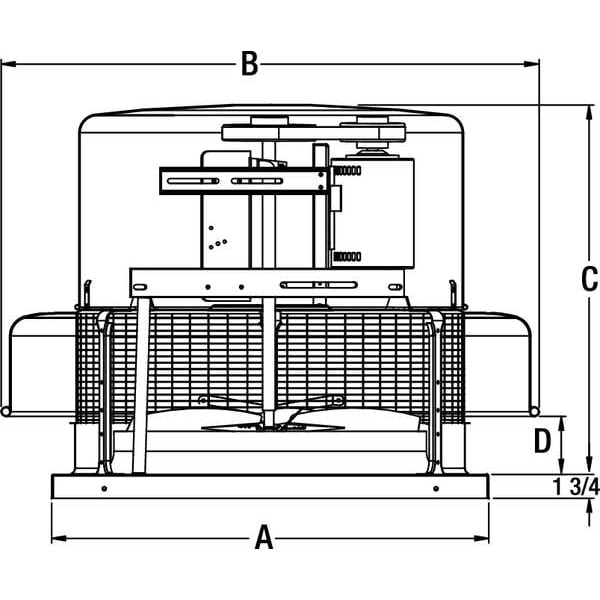

Dimension A 46 in

Dimension B 58 3/4 in

Dimension C 38 1/2 in

Dimension D 8 7/8 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 16,908 cfm

Exhaust Airflow @ 0.000 in SP - Range More than 10,000 cfm

Exhaust Airflow @ 0.125 in SP 16,549 cfm

Exhaust Airflow @ 0.250 in SP 16,185 cfm

Exhaust Airflow @ 0.375 in SP 15,798 cfm

Exhaust Airflow @ 0.500 in SP 15,408 cfm

Exhaust Airflow @ 0.500 in SP - Range More than 10,000 cfm

Features Fully Rolled Windband Bead for Increased Stability and Easy Transport, Nonoverloading Centrifugal Wheel Design

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Length 58.8 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 58.8 in

Hz_ 60

Includes Drive Package, NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Downblast Ventilator

Material Aluminum Blade with Aluminum Housing

Max. BHP 5.17

Max. Inlet Temp. 180 Degrees

Max. Operating Amps 14.5-13.1/6.6

Maximum Fan Speed 700 RPM

Maximum Inlet Air Temperature 180 Degrees F

Maximum Static Pressure 1 3/4 in wc

Motor Efficiency Standard-Efficiency Motors

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 5 hp

Motor HP 5

Motor HP - Roof Ventilators 5 hp

Motor Location Out of Airstream

Motor Speed 1,760 RPM

Motor Voltage 208/230/460

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Number of Speeds 1

Overall Dia. 58 3/4 in

Overall Diameter 53 3/4 in

Overall Height 40 1/8 in

Overall Length 58 3/4 in

Overall Width 58 3/4 in

Package Quantity 1

Phase 3

Propeller Shaft Diameter 1 1/4 in

Recommended 12 In. Fixed Curb Item No. 4HX52

Recommended 8 In. Fixed Curb Item No. 4HX44

Resistance Properties Weather Resistant

RPM 700

Safety Features Birdscreen, Windband

Shaft Dia. Wheel End 1 1/4 in

Sones @ 0.125-In. SP @ 5 Ft. 27

Sones @ 0.250-In. SP @ 5 Ft. 27

Sones @ 0.500-In. SP @ 5 Ft. 27

Sound Level 22.0 sones @ 1.750 in SP and 5 ft, 23.0 sones @ 1.500 in SP and 5 ft, 24.0 sones @ 1.250 in SP and 5 ft, 25.0 sones @ 0.875 in SP and 5 ft, 25.0 sones @ 1.000 in SP and 5 ft, 26.0 sones @ 0.625 in SP and 5 ft, 26.0 sones @ 0.750 in SP and 5 ft, 27.0 sones @ 0.125 in SP and 5 ft, 27.0 sones @ 0.250 in SP and 5 ft, 27.0 sones @ 0.375 in SP and 5 ft, 27.0 sones @ 0.500 in SP and 5 ft, 28.0 sones @ 0.000 in SP and 5 ft

Speed Controllable No

Standards AMCA Sound and Air, NEMA, UL/cUL 705

Voltage - Roof Ventilators 208V AC/230V AC/460V AC

Wheel Dia. 33 1/2 in

Wheel Diameter 33 1/2 in

Wheel Material Aluminum

Wheel Type Backward Inclined
