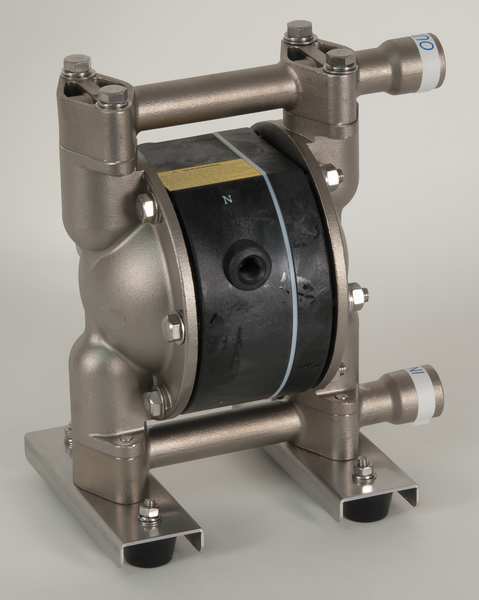

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

Home / Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

SKU
Brand Dayton
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 21 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 14 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT
graingerSKU: 22A597, mscSKU: , zoro_no: G5482251, mongo_id: 65bbe63d3aaddbd5a90186aa

Web Price

$1,932.49 / each

Qty

Product Details

Air Consumption (Maximum) 21 scfm

Air Inlet 1/4 in FNPT

Air Inlet Size 1/4 in FNPT

Air Intake Connection Size 1/4 in

Air Intake Connection Type FNPT

Air Intake Pressure (Maximum) 100 psi

Ball Material Santoprene(R)

Body Material Stainless steel

Check Seat Material 316 Stainless Steel

Connection Style NPT

Country of Origin (subject to change) Japan

Diaphragm Material Santoprene

Diaphragm Material - Pumps Santoprene(R)

Duty Cycle Continuous

Feet of Head (Maximum) Not Applicable

Flow Rate (Maximum) 14 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 13 gpm

Flow Rate @ 120 psi Not Applicable

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi 5 gpm

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi Not Applicable

Flow Rate @ 50 psi Not Applicable

Flow Rate @ 60 psi 9.8 gpm

Flow Rate @ 70 psi Not Applicable

Flow Rate @ 80 psi 11 gpm

Flow Rate @ 90 psi Not Applicable

Fluid Connection Size 1/2 in

Fluid Connection Type NPT

Fluid Discharge Connection 1/2 in NPT

Fluid Intake Connection 1/2 in FNPT

For Use With Potable Systems No

Height 9 3/4 in

Housing Material 316 Stainless Steel

Housing Material - Pumps Stainless Steel

Includes Ball Valve

Inlet/Outlet Size 1/2 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 8 5/16 in

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 1 yr

Max. Dia. Solids 1/32 in

Max. Flow 14 gpm

Max. Flow GPM 14 gpm

Max. Operating Pressure 100 psi

Max. Temp - Pumps 212 Degrees F

Max. Temp. 212 Degrees F

Media Discharge Connection Size 1/2 in

Media Discharge Connection Type NPT

Media Discharge Location Top

Media Discharge Size 1/2 in

Media Discharge Type NPT

Media Intake Connection Size 1/2 in

Media Intake Connection Type FNPT

Media Intake Location Bottom

Media Intake Size 1/2 in

Media Intake Type FNPT

Media Temperature (Maximum) 212 Degrees F

Media Temperature (Minimum) 0 Degrees F

Mounting Hardware Material Stainless Steel, Steel

Nameplate Voltage Not Applicable

Non-Wetted Housing Material Aluminum

NPSHr Not Applicable

Operating Pressure (Maximum) 100 psi

Operation Type Air Operated

Overall Height 9.8 in

Overall Length 8.3 in

Overall Size 8.3 in x 7.3 in x 9.8 in

Overall Width 7.3 in

Package Quantity 1

Port Location Bottom Top

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 5 ft

Self-Priming Wet 28 ft

Series Not Applicable

Series Family Not Applicable

Solid Diameter (Maximum) 0.03 in

Valve Material Santoprene

Valve Type Ball

Viscosity (Maximum) 15,000 cps

Wetted Housing Material 316 Stainless Steel

Width 7 5/16 in
