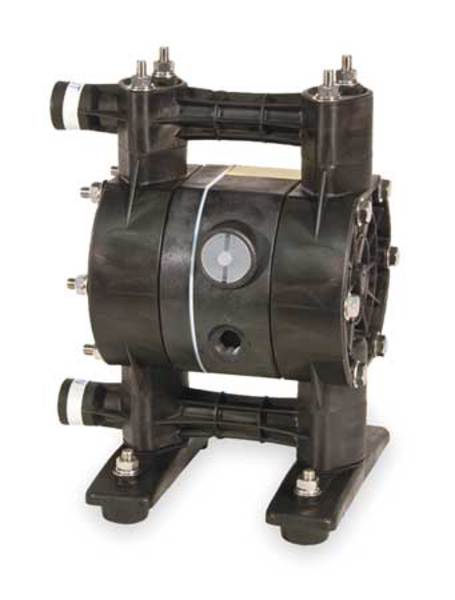

Double Diaphragm Pump, Kynar(R), Air Operated, PTFE, 15 GPM

Home / Double Diaphragm Pump, Kynar(R), Air Operated, PTFE, 15 GPM

Double Diaphragm Pump, Kynar(R), Air Operated, PTFE, 15 GPM

SKU
Brand Dayton
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 17 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material PVDF, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 15 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT, Media Intake Location Bottom
graingerSKU: 3HJV8, mscSKU: , zoro_no: G1607593, mongo_id: 65bbe84022d7a989a98e5550

Web Price

$1,363.74 / each

Qty

Product Details

Air Consumption (Maximum) 17 scfm

Air Inlet 1/4 in FNPT

Air Inlet Size 1/4 in FNPT

Air Intake Connection Size 1/4 in

Air Intake Connection Type FNPT

Air Intake Pressure (Maximum) 100 psi

Ball Material PTFE

Body Material Kynar(R)

Check Seat Material PVDF

Connection Style NPT

Country of Origin (subject to change) Japan

Diaphragm Material PTFE

Diaphragm Material - Pumps PTFE

Duty Cycle Continuous

Feet of Head (Maximum) Not Applicable

Flow Rate (Maximum) 15 gpm

Flow Rate @ 10 psi 6.5 gpm

Flow Rate @ 100 psi 15 gpm

Flow Rate @ 120 psi Not Applicable

Flow Rate @ 15 psi 6 gpm

Flow Rate @ 20 psi 6 gpm

Flow Rate @ 30 psi 10 gpm

Flow Rate @ 40 psi 10 gpm

Flow Rate @ 50 psi 12.5 gpm

Flow Rate @ 60 psi 12.5 gpm

Flow Rate @ 70 psi 12.5 gpm

Flow Rate @ 80 psi 12.7 gpm

Flow Rate @ 90 psi 15 gpm

Fluid Connection Size 1/2 in

Fluid Connection Type NPT

Fluid Discharge Connection 1/2 in NPT

Fluid Intake Connection 1/2 in NPT

For Use With Potable Systems No

Height 11 11/16 in

Housing Material PVDF

Housing Material - Pumps Kynar(R)

Inlet/Outlet Size 1/2 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 8 21/32 in

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 1 yr

Max. Dia. Solids 1/32 in

Max. Flow 15 gpm

Max. Flow GPM 15 gpm

Max. Operating Pressure 100 psi

Max. Temp - Pumps 212 Degrees F

Max. Temp. 212 Degrees F

Media Discharge Connection Size 1/2 in

Media Discharge Connection Type NPT

Media Discharge Location Top

Media Discharge Size 1/2 in

Media Discharge Type NPT

Media Intake Connection Size 1/2 in

Media Intake Connection Type NPT

Media Intake Location Bottom

Media Intake Size 1/2 in

Media Intake Type NPT

Media Temperature (Maximum) 212 Degrees F

Media Temperature (Minimum) 40 Degrees F

Mounting Hardware Material Stainless Steel, Steel

Nameplate Voltage Not Applicable

Non-Wetted Housing Material Plastic

NPSHr Not Applicable

Operating Pressure (Maximum) 100 psi

Operation Type Air Operated

Overall Height 11.7 in

Overall Length 8.7 in

Overall Size 8.7 in x 7 in x 11.7 in

Overall Width 7 in

Package Quantity 1

Port Location Bottom Top

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 8 ft

Self-Priming Wet 28 ft

Series Not Applicable

Series Family Not Applicable

Solid Diameter (Maximum) 0.03 in

Valve Material PTFE

Valve Type Flat

Viscosity (Maximum) 15,000 cps

Wetted Housing Material PVDF

Width 7 in
