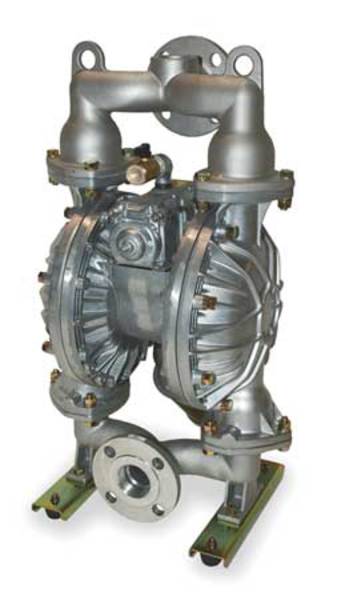

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 120 GPM

Home / Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 120 GPM

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 120 GPM

SKU
Brand Dayton
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 180 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT Threaded Flange, Check Seat Material Aluminum, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 120 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT Threaded Flange, Media Discharge Location Top, Media Intake Connection Size 2 in
graingerSKU: 6PY57, mscSKU: , zoro_no: G1706941, mongo_id: 65bbee11526e052139aea588

Web Price

$3,816.24 / each

Qty

Product Details

Air Consumption (Maximum) 180 scfm

Air Inlet 3/4 in NPT Threaded Flange

Air Inlet Size 3/4 in FNPT

Air Intake Connection Size 3/4 in

Air Intake Connection Type NPT Threaded Flange

Air Intake Pressure (Maximum) 100 psi

Ball Material PTFE

Body Material Aluminum

Check Seat Material Aluminum

Connection Style NPT

Country of Origin (subject to change) Japan

Diaphragm Material PTFE

Diaphragm Material - Pumps PTFE

Duty Cycle Continuous

Feet of Head (Maximum) Not Applicable

Flow Rate (Maximum) 120 gpm

Flow Rate @ 10 psi 65 gpm

Flow Rate @ 100 psi 120 gpm

Flow Rate @ 120 psi Not Applicable

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi 60 gpm

Flow Rate @ 30 psi 81 gpm

Flow Rate @ 40 psi 85 gpm

Flow Rate @ 50 psi 98 gpm

Flow Rate @ 60 psi 110 gpm

Flow Rate @ 70 psi Not Applicable

Flow Rate @ 80 psi Not Applicable

Flow Rate @ 90 psi 119 gpm

Fluid Connection Size 2 in

Fluid Connection Type NPT Threaded Flange

Fluid Discharge Connection 2 in NPT Threaded Flange

Fluid Intake Connection 2 in NPT Threaded Flange

For Use With Potable Systems No

Height 30 3/4 in

Housing Material Aluminum

Housing Material - Pumps Aluminum

Inlet/Outlet Size 2 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 17 3/4 in

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 1 yr

Max. Dia. Solids 5/16 in

Max. Flow 120 gpm

Max. Flow GPM 120 gpm

Max. Operating Pressure 100 psi

Max. Temp - Pumps 212 Degrees F

Max. Temp. 212 Degrees F

Media Discharge Connection Size 2 in

Media Discharge Connection Type NPT Threaded Flange

Media Discharge Location Top

Media Discharge Size 2 in

Media Discharge Type NPT Threaded Flange

Media Intake Connection Size 2 in

Media Intake Connection Type NPT Threaded Flange

Media Intake Location Bottom

Media Intake Size 2 in

Media Intake Type NPT Threaded Flange

Media Temperature (Maximum) 212 Degrees F

Media Temperature (Minimum) 40 Degrees F

Mounting Hardware Material Stainless Steel, Steel

Nameplate Voltage Not Applicable

Non-Wetted Housing Material Aluminum

NPSHr Not Applicable

Operating Pressure (Maximum) 100 psi

Operation Type Air Operated

Overall Height 30.8 in

Overall Length 17.8 in

Overall Size 17.8 in x 12.8 in x 30.8 in

Overall Width 12.8 in

Package Quantity 1

Port Location Bottom Top

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 15 ft

Self-Priming Wet 28 ft

Series Not Applicable

Series Family Not Applicable

Solid Diameter (Maximum) 0.31 in

Valve Material PTFE

Valve Type Ball

Viscosity (Maximum) 50,000 cps

Wetted Housing Material Aluminum

Width 12 53/64 in
