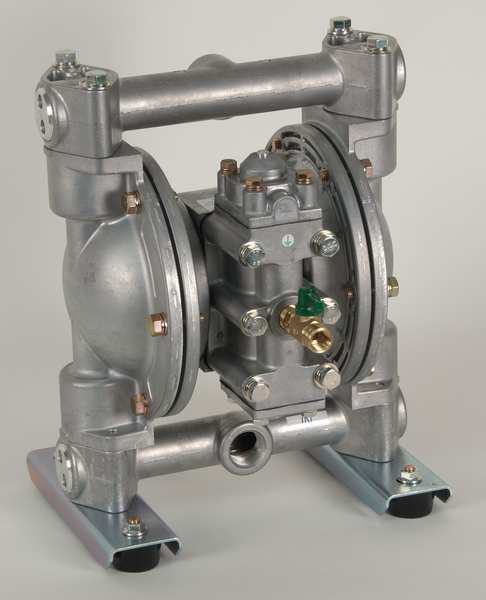

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 32 GPM

Home / Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 32 GPM

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 32 GPM

SKU
Brand Dayton
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material Aluminum, Diaphragm Material Buna-N, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 32 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 3/4 in, Media Intake Connection Type FNPT, Media Intake Location Bottom
graingerSKU: 22A592, mscSKU: , zoro_no: G6077942, mongo_id: 65bbe63d3aaddbd5a90186af

Web Price

$1,442.49 / each

Qty

Product Details

Air Consumption (Maximum) 45 scfm

Air Inlet Size 1/4 in FNPT

Air Intake Connection Size 1/4 in

Air Intake Connection Type FNPT

Air Intake Pressure (Maximum) 100 psi

Ball Material Buna N

Body Material Aluminum

Check Seat Material Aluminum

Connection Style NPT

Country of Origin (subject to change) Japan

Diaphragm Material Buna-N

Diaphragm Material - Pumps Buna N

Discharge Port 3/4 in NPT

Duty Cycle Continuous

Feet of Head (Maximum) Not Applicable

Flow Rate (Maximum) 32 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 29 gpm

Flow Rate @ 120 psi Not Applicable

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi 16 gpm

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi 22 gpm

Flow Rate @ 50 psi Not Applicable

Flow Rate @ 60 psi 25 gpm

Flow Rate @ 70 psi Not Applicable

Flow Rate @ 80 psi 26 gpm

Flow Rate @ 90 psi Not Applicable

Fluid Connection Size 3/4 in

Fluid Connection Type NPT

For Use With Potable Systems No

Height 12 5/8 in

Housing Material - Pumps Aluminum

Includes Ball Valve

Inlet/Outlet Size 3/4 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 8 in

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 1 yr

Max. Dia. Solids 1/16 in

Max. Flow 32 gpm

Max. Flow GPM 32 gpm

Max. Operating Pressure 100 psi

Max. Temp - Pumps 180 Degrees F

Max. Temp. 180 Degrees F

Media Discharge Connection Size 3/4 in

Media Discharge Connection Type NPT

Media Discharge Location Top

Media Intake Connection Size 3/4 in

Media Intake Connection Type FNPT

Media Intake Location Bottom

Media Temperature (Maximum) 180 Degrees F

Media Temperature (Minimum) 0 Degrees F

Mounting Hardware Material Stainless Steel, Steel

Nameplate Voltage Not Applicable

Non-Wetted Housing Material Aluminum

NPSHr Not Applicable

Operating Pressure (Maximum) 100 psi

Operation Type Air Operated

Overall Height 12.6 in

Overall Length 8 in

Overall Width 9.8 in

Package Quantity 1

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 18 ft

Self-Priming Wet 28 ft

Series Not Applicable

Series Family Not Applicable

Solid Diameter (Maximum) 0.06 in

Standards CSA Certified

Suction Port 3/4 in FNPT

Valve Material Buna-N

Valve Type Ball

Viscosity (Maximum) 40,000 cps

Wetted Housing Material Aluminum

Width 9 3/4 in
