Home / DC Gearmotor, 42.0 in-lb Max. Torque, 139 RPM Nameplate RPM, 90V DC Voltage

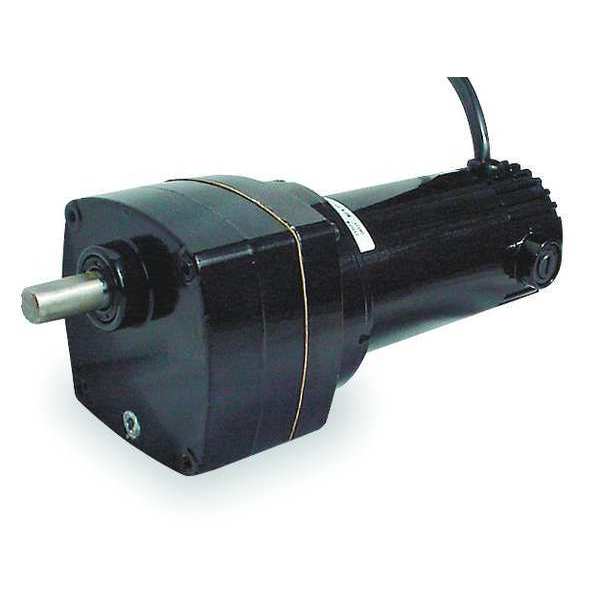

DC Gearmotor, 42.0 in-lb Max. Torque, 139 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, 42.0 in-lb Max. Torque, 139 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, 42.0 in-lb Max. Torque, 139 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, 42.0 in-lb Max. Torque, 139 RPM Nameplate RPM, 90V DC Voltage

DC Gearmotor, 42.0 in-lb Max. Torque, 139 RPM Nameplate RPM, 90V DC Voltage

  • Dayton
  • DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 139 RPM, Maximum Torque 42 in-lb, Overhung Load Capacity 220 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 13:1, Input Horsepower 1/10 hp, Output Shaft Diameter 1/2 in, Bearing Type Ball on Motor, Needle Throughout

    graingerSKU: 2H561, mscSKU: , zoro_no: G2368746, mongo_id: 65bbe7743aaddbd5a9096296

Web Price
$519.99 / each
Qty

Product Details

Ball on Motor, Needle Throughout
Ball on Motor, Needle Throughout
Externally Replaceable
United States
3.15 in
8 39/50 in
7.94
TENV
1.08 A
1.08 A
Die Cast Aluminum
Hardened Steel
13:1
Helical, Spur
Totally Enclosed Nonventilated
All Angle
CW/CCW
Parallel
Single
DC Gearmotor
90V DC
Aluminum
1/10 hp
1/10
8.75 in
Permanent Heavy Fluid Gear Oil
40 Degrees C
42 in-lb
40 Degrees C
42 in-lb
Totally Enclosed Nonventilated
Permanent Magnet DC
All Position
Any Angle
139 RPM
139 RPM
90V DC
1/2 in
1 in
9.75 in
220 lb
220 ft-lb
1
Yes
Yes
6YHY6
No
CW/CCW
101 to 150
Plastic
Spring Loaded Lip Type on Input and Output Shaft
Spring Loaded Lip Type on Input and Output Shaft
1/2 in
1
Parallel
C-UL Recognized, UL Recognized
Yes
None
90VDC
