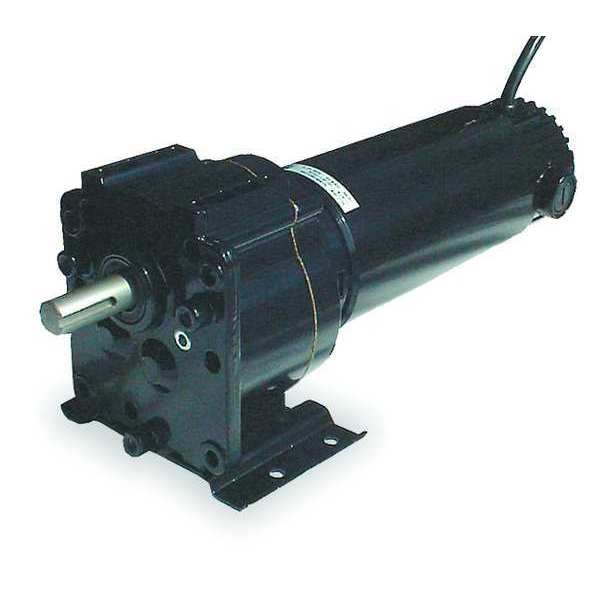

Home / DC Gearmotor, 280.0 in-lb Max. Torque, 42 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, 280.0 in-lb Max. Torque, 42 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, 280.0 in-lb Max. Torque, 42 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, 280.0 in-lb Max. Torque, 42 RPM Nameplate RPM, 90V DC Voltage

DC Gearmotor, 280.0 in-lb Max. Torque, 42 RPM Nameplate RPM, 90V DC Voltage

  • Dayton
  • DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 42 RPM, Maximum Torque 280 in-lb, Overhung Load Capacity 215 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 43:1, Input Horsepower 1/4 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Needle Throughout

    graingerSKU: 2H579, mscSKU: , zoro_no: G2599597, mongo_id: 65bbea5822d7a989a99ab0ff

Web Price
$828.74 / each
Qty

Product Details

Ball on Motor, Needle Throughout
Ball on Motor, Needle Throughout with Thrust Balls on Case
Externally Replaceable
United States
TENV
2.3 A
2.3 A
Die Cast Aluminum
Hardened Steel
43:1
Helical, Spur
Totally Enclosed Nonventilated
All Angle
CW/CCW
Parallel
Single
DC Gearmotor
90V DC
Aluminum
1/4 hp
1/4
12.13 in
Permanent Heavy Fluid Gear Oil
40 Degrees C
280 in-lb
40 Degrees C
280 in-lb
Totally Enclosed Nonventilated
Permanent Magnet DC
All Position
Any Angle
42 RPM
42 RPM
90V DC
5/8 in
1 1/2 in
13.63 in
215 lb
215 ft-lb
1
Yes
Yes
6YHZ0
No
CW/CCW
31 to 50
Plastic
Spring Loaded Lip Type on Input and Output Shaft
Spring Loaded Lip Type on Input and Output Shaft
5/8
1-1/2
Parallel
C-UL Recognized, UL Recognized
Yes
None
90VDC
