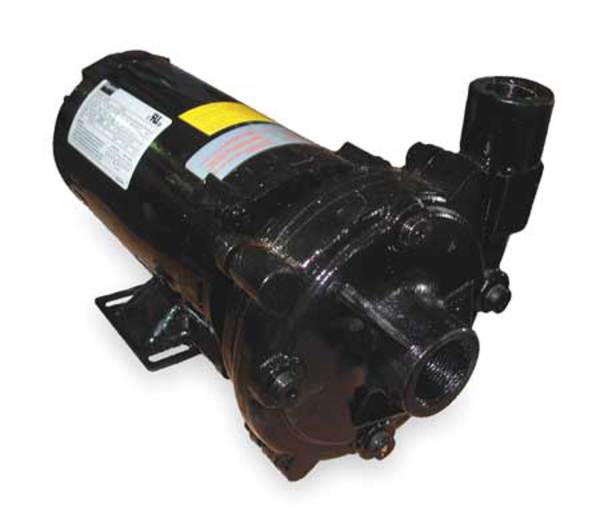

Cast Iron 1/2 HP Centrifugal Pump 208-230/460V

Home / Cast Iron 1/2 HP Centrifugal Pump 208-230/460V

Cast Iron 1/2 HP Centrifugal Pump 208-230/460V

SKU
Brand Dayton
Categories Pumps
Description Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 1/2 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 32 gpm, Flow Rate @ 60 ft of Head (Maximum) 21 gpm, Maximum Feet of Head 82 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 10 ft of Head (Maximum) 42 gpm, Flow Rate @ 15 ft of Head (Maximum) 40.5 gpm
graingerSKU: , mscSKU: , zoro_no: G3435966, mongo_id: 65bbe5fc3aaddbd5a9ffccdb

Web Price

$448.74 / each

Qty

Product Details

Agency Compliance UL Approval in Motor

Amps 1.8-1.7/0.9

Bearing Type Ball

Best Efficiency Flow 29 gpm

Best Efficiency GPM @ Head 29 @ 47 ft

Best Efficiency Head 47 ft

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 1/4 in

Compatible with Media Type Non-Flammable Liquids

Country of Origin (subject to change) India

Discharge Rotation 90 Degrees Increments

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Features Continuous High Pressure Circulation

Feet of Head (Minimum) 10 ft

Flow Rate @ 1 ft of Head (Maximum) Not Applicable

Flow Rate @ 10 ft of Head (Maximum) 42 gpm

Flow Rate @ 100 ft of Head (Maximum) Not Applicable

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) 40.5 gpm

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) 39 gpm

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) 36 gpm

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) 32 gpm

Flow Rate @ 5 ft of Head (Maximum) Not Applicable

Flow Rate @ 50 ft of Head (Maximum) 28 gpm

Flow Rate @ 60 ft of Head (Maximum) 21 gpm

Flow Rate @ 70 ft of Head (Maximum) 15 gpm

Flow Rate @ 80 ft of Head (Maximum) Not Applicable

Flow Rate @ 90 ft of Head (Maximum) Not Applicable

For Use With Potable Systems No

Frame 56J

Frequency 60 Hz

GPM of Water @ 10 Ft. of Head 42

GPM of Water @ 15 Ft. of Head 40

GPM of Water @ 20 Ft. of Head 39

GPM of Water @ 25 Ft. of Head 37

GPM of Water @ 30 Ft. of Head 36

GPM of Water @ 40 Ft. of Head 32

GPM of Water @ 50 Ft. of Head 28

GPM of Water @ 60 Ft. of Head 21

GPM of Water @ 70 Ft. of Head 15

Height 8 1/2 in

Horsepower 1/2 hp

Housing Material Cast iron

Housing Material - Pumps Cast Iron

HP - Pumps 1/2 hp

HP_ 1/2

Hz_ 60

Impeller Design Closed

Impeller Material Brass

Impeller Type Closed

Includes Manual

Inlet 1-1/4

Inlet Pressure 200 psi

Inlet Size - Pumps 1-1/4 in NPT

Intake and Discharge Size 1 1/4 in , 1 in

Intake Type NPT

Item - Straight Centrifugal Pumps Straight Centrifugal High Head Pump

Length 14 3/4 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 200 psi

Max. Dia. Solids 5/16 in

Max. Head 82 ft

Max. Liquid Temp. 200 Degrees F

Max. Pressure 35 psi

Max. Pressure - Pumps 35 psi

Max. Specific Gravity 1.0

Maximum Feet of Head 82 ft

Maximum Media Temperature 200 Degrees F

Maximum RPM 3,450 RPM

Minimum Media Temperature 40 Degrees F

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J

Motor RPM 3,450 RPM

Motor Type ODP

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Outlet 1

Outlet Size - Pumps 1 in NPT

Overall Height 8.5 in

Overall Length 14.7 in

Overall Width 7.9 in

Package Quantity 1

Phase Three

Phase - Pumps 3

Port Rotation 4 Position Increments

Pump Housing Material Cast Iron

Pumping Application Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation

Seal Material Viton

Seal Type Mechanical

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 35 psi

Solid Diameter (Maximum) 0.31 in

Specific Gravity (Maximum) 1

Standards UL Listed (Motor Only)

Voltage 208-230/460VAC

Voltage - Pumps 208 to 240/480V AC

Wetted Material Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton

Wetted Materials Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton

Width 8 in
