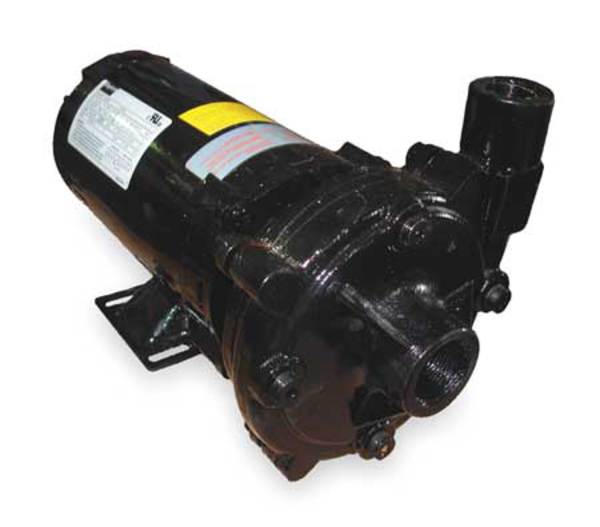

Cast Iron 1-1/2 HP Centrifugal Pump 208-230/460V

Home / Cast Iron 1-1/2 HP Centrifugal Pump 208-230/460V

Cast Iron 1-1/2 HP Centrifugal Pump 208-230/460V

SKU
Brand Dayton
Categories Pumps
Description Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 1 1/2 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 78 gpm, Flow Rate @ 60 ft of Head (Maximum) 62 gpm, Flow Rate @ 80 ft of Head (Maximum) 43 gpm, Maximum Feet of Head 110 ft, Compatible Intake Pipe Size 1 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/4 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Flow Rate @ 10 ft of Head (Maximum) 94 gpm
graingerSKU: 2ZXN5, mscSKU: , zoro_no: G0589382, mongo_id: 65bbe6403aaddbd5a901980e

Web Price

$719.99 / each

Qty

Product Details

Agency Compliance UL Approval in Motor

Amps 4.4-3.9/2.0

Bearing Type Ball

Best Efficiency Flow 54 gpm

Best Efficiency GPM @ Head 54 @ 70 ft

Best Efficiency Head 70 ft

Compatible Discharge Pipe Size 1 1/4 in

Compatible Intake Pipe Size 1 1/2 in

Compatible with Media Type Non-Flammable Liquids

Country of Origin (subject to change) India

Discharge Rotation 90 Degrees Increments

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Features Continuous High Pressure Circulation

Feet of Head (Minimum) 10 ft

Flow Rate @ 1 ft of Head (Maximum) Not Applicable

Flow Rate @ 10 ft of Head (Maximum) 94 gpm

Flow Rate @ 100 ft of Head (Maximum) Not Applicable

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) 92 gpm

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) 90 gpm

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) 85 gpm

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) 78 gpm

Flow Rate @ 5 ft of Head (Maximum) Not Applicable

Flow Rate @ 50 ft of Head (Maximum) 71 gpm

Flow Rate @ 60 ft of Head (Maximum) 62 gpm

Flow Rate @ 70 ft of Head (Maximum) 54 gpm

Flow Rate @ 80 ft of Head (Maximum) 43 gpm

Flow Rate @ 90 ft of Head (Maximum) 32 gpm

For Use With Potable Systems No

Frame 56J

Frequency 60 Hz

GPM of Water @ 10 Ft. of Head 94

GPM of Water @ 15 Ft. of Head 92

GPM of Water @ 20 Ft. of Head 90

GPM of Water @ 25 Ft. of Head 87

GPM of Water @ 30 Ft. of Head 85

GPM of Water @ 40 Ft. of Head 78

GPM of Water @ 50 Ft. of Head 71

GPM of Water @ 60 Ft. of Head 62

GPM of Water @ 70 Ft. of Head 54

GPM of Water @ 80 Ft. of Head 43

GPM of Water @ 90 Ft. of Head 32

Height 9 in

Horsepower 1 1/2 hp

Housing Material Cast iron

Housing Material - Pumps Cast Iron

HP - Pumps 1 1/2 hp

HP_ 1-1/2

Hz_ 60

Impeller Design Closed

Impeller Material Brass

Impeller Type Closed

Includes Manual

Inlet 1-1/2

Inlet Pressure 200 psi

Inlet Size - Pumps 1-1/2 in NPT

Intake and Discharge Size 1 1/2 in , 1 1/4 in

Intake Type NPT

Item - Straight Centrifugal Pumps Straight Centrifugal High Head Pump

Length 15 3/4 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 200 psi

Max. Dia. Solids 5/16 in

Max. Head 110 ft

Max. Liquid Temp. 200 Degrees F

Max. Pressure 47 psi

Max. Pressure - Pumps 47 psi

Max. Specific Gravity 1.0

Maximum Feet of Head 110 ft

Maximum Media Temperature 200 Degrees F

Maximum RPM 3,450 RPM

Minimum Media Temperature 40 Degrees F

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J

Motor RPM 3,450 RPM

Motor Type ODP

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Outlet 1-1/4

Outlet Size - Pumps 1-1/4 in NPT

Overall Height 8.9 in

Overall Length 15.8 in

Overall Width 8.8 in

Package Quantity 1

Phase Three

Phase - Pumps 3

Port Rotation 4 Position Increments

Pump Housing Material Cast Iron

Pumping Application Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation

Seal Material Viton

Seal Type Mechanical

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 47 psi

Solid Diameter (Maximum) 0.31 in

Specific Gravity (Maximum) 1

Standards UL Listed (Motor Only)

Voltage 208-230/460VAC

Voltage - Pumps 208 to 240/480V AC

Wetted Material Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton

Wetted Materials Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton

Width 8 3/4 in
