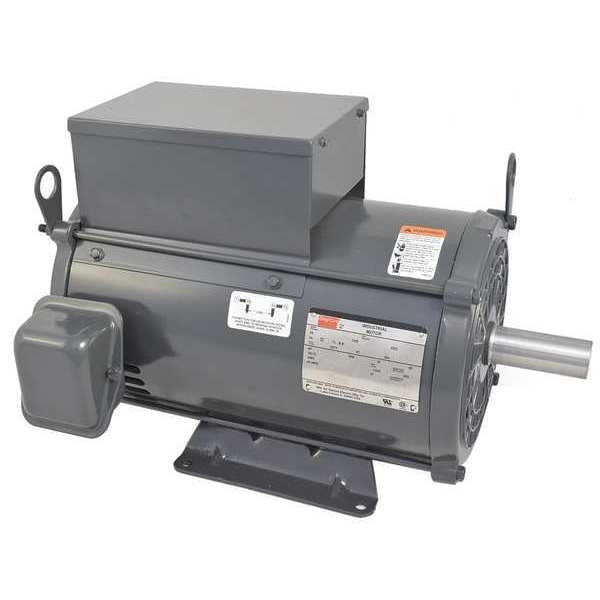

Capacitor-Start/Run General Purpose Motor, 7 1/2 HP, 230V AC Voltage, 215T Frame

SKU
Brand Dayton
Categories
Description General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 35.5 A, 215T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Shaft Design Keyed
graingerSKU: 5K677, mscSKU: , zoro_no: G1847562, mongo_id: 65bbe7ab3aaddbd5a90abfcc

Web Price

$2,332.49 / each

Qty

Product Details

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Footnotes 24, 51

Frame 215T

Frame Material Steel

Full Load Amps 35.5 A

HP_ 7 1/2 hp

Hz_ 60 Hz

Includes Shaft Key

Ins. Class F

Length Less Shaft 16 1/2 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Energy Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,740

No. of Speeds 1

Nominal Efficiency 85.4 %

Overall Length 19 7/8 in

Package Quantity 1

Phase Single

RPM Group 1701-1800

RPM Range 1,701-1,800

Shaft Dia. 1 3/8 in

Shaft Length 3 3/8 in

Standards CSA Certified (258525), UL Recognized (E47479)

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
