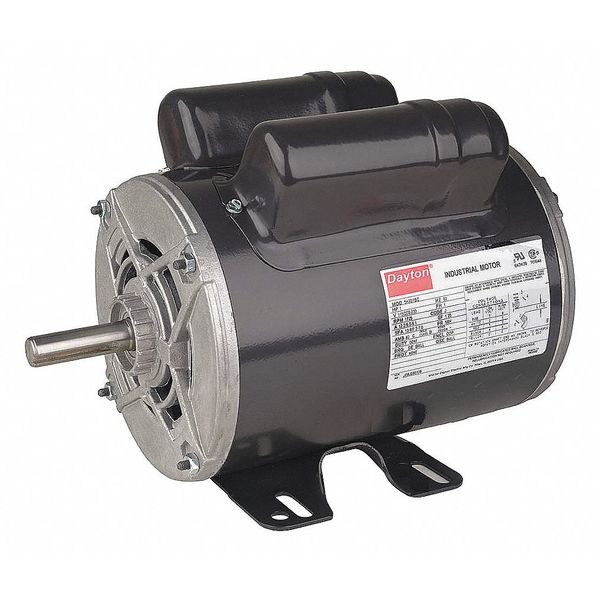

Capacitor-Start/Run General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 48 Frame
Capacitor-Start/Run General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 48 Frame
Capacitor-Start/Run General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 48 Frame
Capacitor-Start/Run General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 48 Frame
Capacitor-Start/Run General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 48 Frame
Capacitor-Start/Run General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 48 Frame

Capacitor-Start/Run General Purpose Motor, 1/2 HP, 115/208-230V AC Voltage, 48 Frame

  • Dayton
  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.6/2.4-2.3 A, 48 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal or Vertical Shaft Down, Inverter Rated No

    graingerSKU: 20CL60, mscSKU: , zoro_no: G9077546, mongo_id: 65bbee1c526e052139aee967

Web Price
$532.49 / each

Product Details

Yes
Mexico
Continuous
Continuous
48
Steel
4.6/2.4-2.3 A
Energy Aware
Product Contributes To Reducing Energy Consumption
1/2 hp
60 Hz
340 MFD Capacitor(374 MFD, 125V Start capacitor & 35 MFD, 370V Run Capacitor)
B
No
9 1/2 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Steel
Horizontal or Vertical Shaft Down
Rigid Base
1.25
Flat
CW/CCW
None
1,725
1
76.2 %
11 1/8 in
1
Single
1701-1800
1,701-1,800
1/2 in
1 1/2 in
UL (E47479)
115/208-230V AC
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
