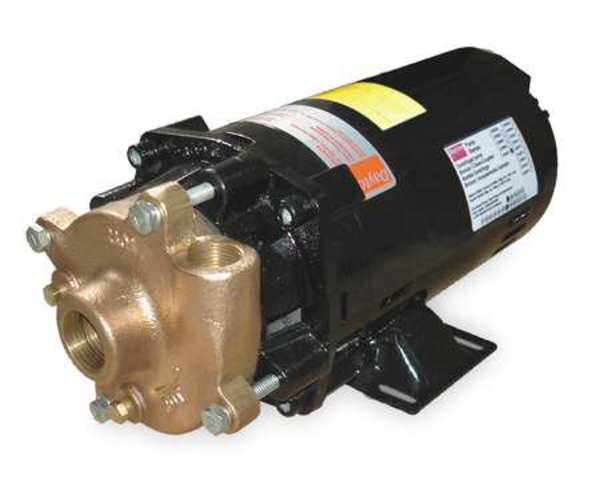

Bronze/Brass 1/2 HP Centrifugal Pump 208-230/460V

SKU
Brand Dayton
Categories Pumps, Raw Materials
Description Centrifugal Pump, Phase Three, Pump Housing Material Bronze, Horsepower 1/2 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 10 gpm, Maximum Feet of Head 44 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 67 gpm, Flow Rate @ 10 ft of Head (Maximum) 67 gpm, Flow Rate @ 15 ft of Head (Maximum) 63 gpm, Flow Rate @ 20 ft of Head (Maximum) 57 gpm
graingerSKU: 2ZWR6, mscSKU: , zoro_no: G0845381, mongo_id: 65bbe84022d7a989a98e66a4

Web Price

$616.24 / each

Qty

Product Details

Agency Compliance c UL us

Amps 1.8-1.7/0.9

Bearing Type Ball

Best Efficiency Flow 38 gpm

Best Efficiency GPM @ Head 38 gpm @ 27 ft

Best Efficiency Head 27 ft

Best Efficiency Range GPM @ Head 19 to 63 gpm @ 35 to 15 ft

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 1/4 in

Compatible with Media Type Non-Flammable Liquids

Country of Origin (subject to change) India

Discharge Rotation 90 Degrees Increments

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Features Continuous High Pressure Circulation

Feet of Head (Minimum) 10 ft

Flow Rate @ 1 ft of Head (Maximum) Not Applicable

Flow Rate @ 10 ft of Head (Maximum) 67 gpm

Flow Rate @ 100 ft of Head (Maximum) Not Applicable

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) 63 gpm

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) 57 gpm

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) 40 gpm

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) 10 gpm

Flow Rate @ 5 ft of Head (Maximum) Not Applicable

Flow Rate @ 50 ft of Head (Maximum) Not Applicable

Flow Rate @ 60 ft of Head (Maximum) Not Applicable

Flow Rate @ 70 ft of Head (Maximum) Not Applicable

Flow Rate @ 80 ft of Head (Maximum) Not Applicable

Flow Rate @ 90 ft of Head (Maximum) Not Applicable

For Use With Potable Systems No

Frame 56J

Frequency 60 Hz

GPM of Water @ 10 Ft. of Head 67

GPM of Water @ 15 Ft. of Head 63

GPM of Water @ 20 Ft. of Head 57

GPM of Water @ 25 Ft. of Head 48

GPM of Water @ 30 Ft. of Head 40

GPM of Water @ 40 Ft. of Head 10

Height 5 7/8 in

Horsepower 1/2 hp

Housing Material Bronze, Brass

Housing Material - Pumps Brass, Bronze

HP - Pumps 1/2 hp

HP_ 1/2

Hz_ 60

Impeller Design Semi-Open

Impeller Material Bronze

Impeller Type Semi Open

Includes Manual

Inlet 1-1/4 NPT

Inlet Pressure 200 psi

Inlet Size - Pumps 1-1/4 in NPT

Intake and Discharge Size 1 1/4 in , 1 in

Intake Type NPT

Item - Straight Centrifugal Pumps Straight Centrifugal High Flow Pump

Length 13 1/2 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 200 psi

Max. Dia. Solids 7/16 in

Max. GPM @ Head 67 gpm @ 10 ft

Max. Head 44 ft

Max. Liquid Temp. 200 Degrees F

Max. Pressure 19.04 psi

Max. Pressure - Pumps 19 psi

Max. Specific Gravity 1

Maximum Feet of Head 44 ft

Maximum Flow Rate 67 gpm

Maximum Media Temperature 200 Degrees F

Maximum RPM 3,450 RPM

Min. GPM @ Head 10 gpm @ 40 ft

Minimum Flow Rate 10 gpm

Minimum Media Temperature 40 Degrees F

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J

Motor RPM 3450

Motor Type 3-Phase

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Outlet 1 NPT

Outlet Size - Pumps 1 in NPT

Overall Height 5.8 in

Overall Length 13.6 in

Overall Width 6.6 in

Package Quantity 1

Phase Three

Phase - Pumps 3

Port Rotation 4 Position Increments

Pump Housing Material Bronze

Pumping Application Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation

Seal Material Buna-N

Seal Type Mechanical

Shaft Material 304 Stainless Steel

Shut Off Pressure (Maximum) 19 psi

Solid Diameter (Maximum) 0.44 in

Specific Gravity (Maximum) 1

Standards cULus Listed

Voltage 208-230/460

Voltage - Pumps 208 to 240/480V AC

Wetted Material Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel

Wetted Materials Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel

Width 6 5/8 in
