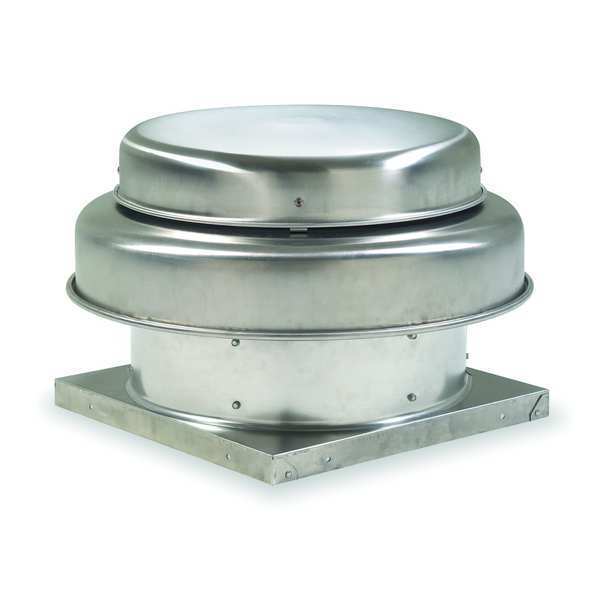

Axial Downblast Roof Exhaust Fan, 1/8 HP, 115V, 10 in

SKU
Brand Dayton
Categories
Description Axial Downblast Roof Exhaust Fan, Mounting Location Roof and Wall, Assembly Fully Assembled, Blade Diameter 10 in, Housing Material Aluminum, Exhaust Airflow @ 0.000 in SP 550 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, Maximum Static Pressure 1/2 in wc, Motor Enclosure Totally Enclosed Air Over, Motor Horsepower 1/8 hp, Nameplate Voltage 115V AC, Number of Speeds 1, Phase 1, Maximum Inlet Air Temperature 120 Degrees F, Number of Blades 4
graingerSKU: 4YC86, mscSKU: , zoro_no: G2190921, mongo_id: 65bbe7c93aaddbd5a90b6b83

Web Price

$686.24 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. 6 3/8H Roof Curb Stock No. 4c453

Airflow @ 0.000 in SP 550 cfm

Airflow @ 0.000 in SP - Range 0 to 1,999 cfm

Application Industrial and Commercial Applications

Assembly Fully Assembled

Base Diameter Not Applicable

Base Dimension 19 in Square

Base Height 1 3/4 in

Base Length 19 in

Base Shape Square

Base Top to Shroud 5 1/2 in

Base Width 19 in

Blade Design Swept Steeply Pitched

Blade Diameter 10 in

Blade Material Aluminum

Brake Horsepower 1/20 hp

CFM @ 0.000-In. SP 550

CFM @ 0.125-In. SP 465

CFM @ 0.250-In. SP 347

CFM @ 0.375-In. SP 255

CFM @ 0.500-In. SP 189

Compatible Curb Manufacturer Part Number 2RB75, 2ZV82, 4C453, 4C670, 4HX38, 4HX46

Compatible Speed Control 48C172

Country of Origin (subject to change) United States

Current 1.7 A

Cutout Length 14.5 in

Cutout Size 14.5 in L x 14.5 in W

Damper Size 12 x 12 in

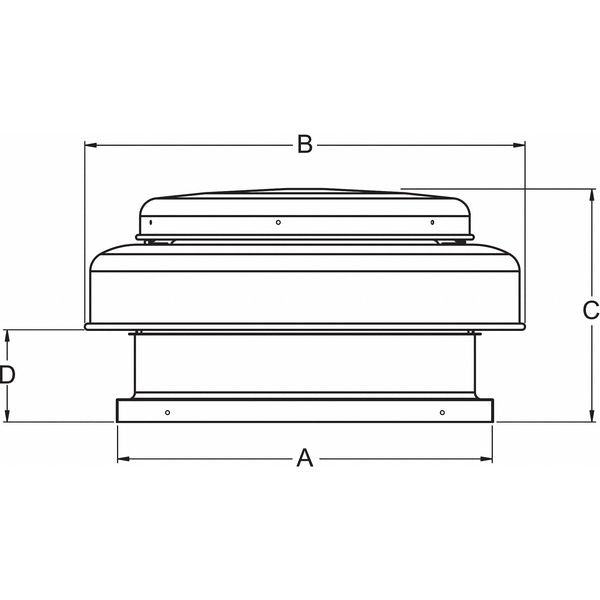

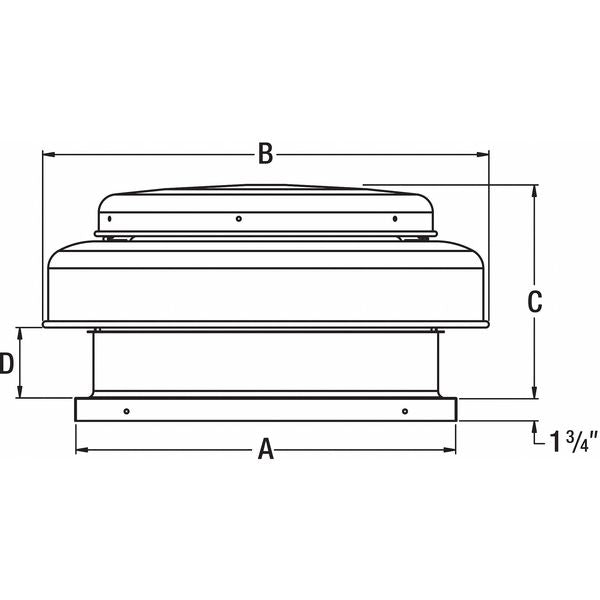

Dimension A 19 in

Dimension B 24 5/8 in

Dimension C 15 1/4 in

Dimension D 5 1/2 in

Drive Type Direct Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 550 cfm

Exhaust Airflow @ 0.000 in SP - Range 0 to 1,999 cfm

Exhaust Airflow @ 0.125 in SP 465 cfm

Exhaust Airflow @ 0.250 in SP 347 cfm

Exhaust Airflow @ 0.375 in SP 255 cfm

Exhaust Airflow @ 0.500 in SP 189 cfm

Features Fully Rolled Baffle Bead for Stability and Ease of Transport With Spun Aluminum Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Length 24.6 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 24.6 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Material Aluminum Blade with Aluminum Housing

Max. BHP 0.05 hp

Max. Inlet Temp. 120 Degrees F

Max. Operating Amps 0.9

Max. Operating Watts 73 W

Maximum Fan Speed 1,750 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 1/2 in wc

Motor Efficiency Standard-Efficiency Motors

Motor Enclosure Totally Enclosed Air Over

Motor Enclosure Design Totally Enclosed Air-Over (TEAO)

Motor Horsepower 1/8 hp

Motor HP 1/8 hp

Motor Location In Airstream

Mount Type Roof Curb

Mounting Location Roof or Wall

Nameplate Voltage 115V AC

Nominal Voltage 115V AC

Number of Blades 4

Number of Speeds 1

Overall Dia. 24 5/8 in

Overall Diameter 24.6 in

Overall Height 17 in

Overall Length 24 5/8 in

Overall Width 24 5/8 in

Package Quantity 1

Phase 1

Power Consumption 73 W

Promotion Restriction Not eligible for promotion

Propeller Dia. 10 in

Propeller Material Aluminum

Propeller Shaft Diameter 1/2 in

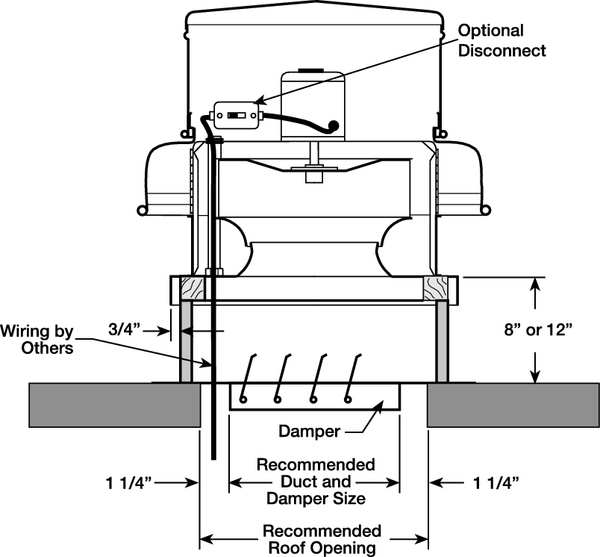

Recommended 12 In. Fixed Curb Item No. 2RB75

Recommended 8 In. Fixed Curb Item No. 4HX38

Recommended Damper Size 12 in x 12 in

Recommended Damper Stock No. 4HX64

Requires Roof Curb for New Installation

RPM 1750

Safety Features Birdscreen

Shaft Dia. Propeller End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 10.5

Sones @ 0.250-In. SP @ 5 Ft. 13.2

Sound Level 10.5 sones @ 0.125 in SP and 5 ft, 12.0 sones @ 0.375 in SP and 5 ft, 13.2 sones @ 0.250 in SP and 5 ft, 16.8 sones @ 0.500 in SP and 5 ft, 9.6 sones @ 0.000 in SP and 5 ft

Speed Control Variable with 48C172

Speed Controllable Yes

Standards AMCA Sound and Air, UL/cUL 705

Supply Airflow @ 0.000 in SP 550 cfm

Voltage 115
